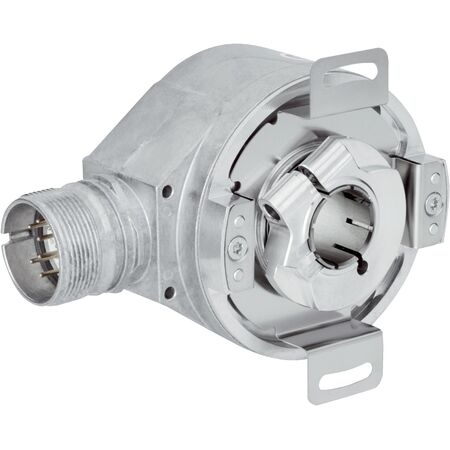

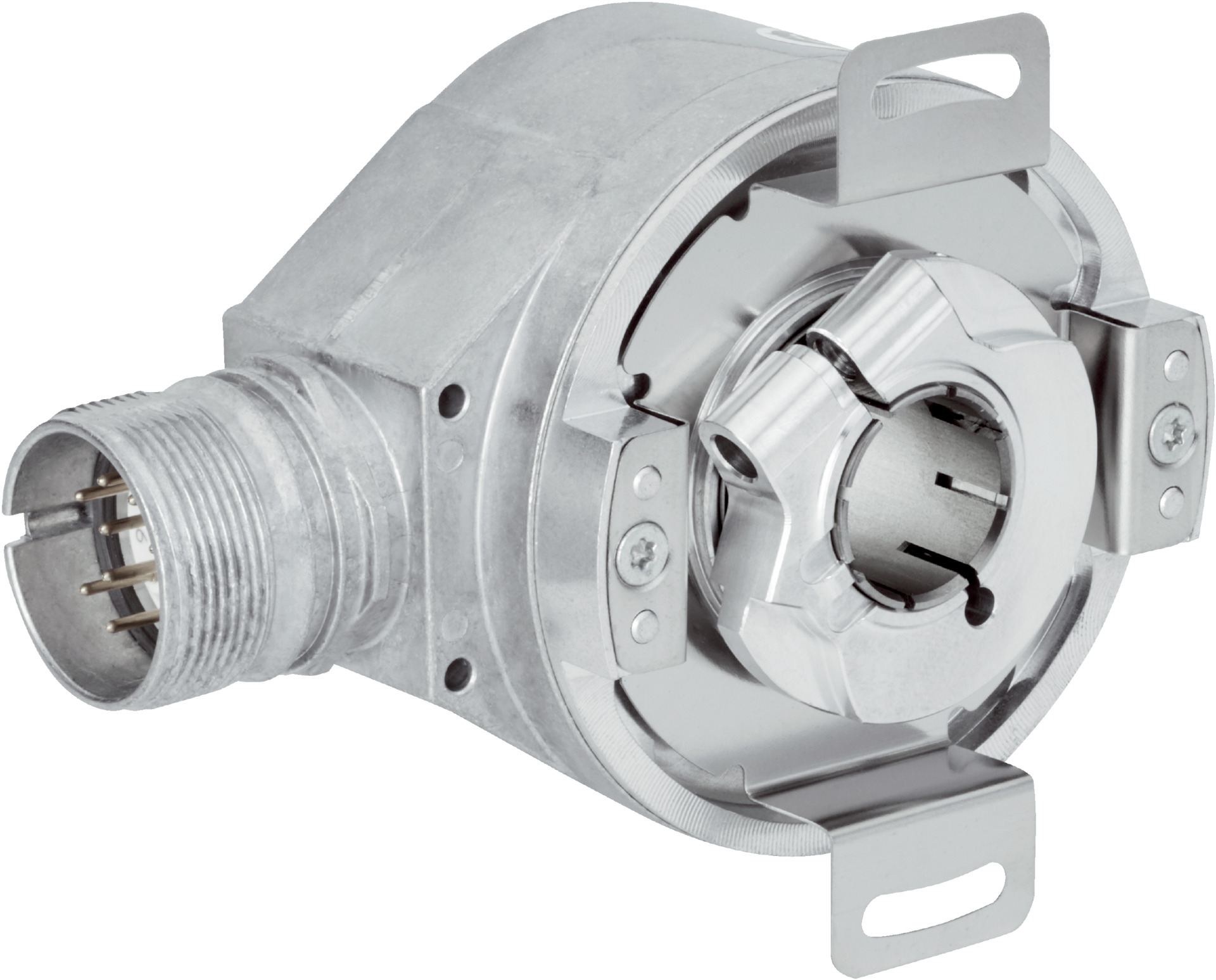

Safety Absolute Encoder SFS60S-HMAT0K02 | SIL 2 Certified | High System Accuracy | IP65 Rated | by SICK
The Safety Absolute Encoder SFS60S-HMAT0K02 is designed for industrial automation and safety systems, featuring SIL 2 certification and high system accuracy of ±52″. With an operating speed of up to 6,000 min⁻¹ and robust aluminum die-cast housing rated IP65, it ensures reliable performance in demanding environments. Ideal for machine safety monitoring and robotics, this encoder is built to withstand shocks and vibrations, making it a perfect choice for precision applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Measuring step: 0.3″ with 12 bit interpolation
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Operating speed: ≤ 6,000 min⁻¹
- Memory area: 1,792 Byte
- System accuracy: ±52″
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: < 80 mA (without load)
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft diameter: 12 mm, stainless steel
- Housing material: Aluminum die cast
- Enclosure rating: IP65 with mating connector
- Operating temperature range: –30 °C to +95 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibrations: 10 g, 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High system accuracy of ±52″ and safety-related accuracy of ±0.09°
- Operating speed up to 6,000 min⁻¹
- Robust aluminum die-cast housing with IP65 rating
- Through hollow shaft with 12 mm diameter made of stainless steel
- Communication interface HIPERFACE® with binary code output
- Wide operating temperature range from –30 °C to +95 °C
- Resistance to shocks (100 g) and vibrations (10 g, 10 Hz to 1,000 Hz)
- Long service life of ball bearings (3.6 x 10⁹ revolutions)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation and safety systems
- Machine safety monitoring
- Position and speed measurement in machinery
- Robotics and motion control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption (<80 mA)
- Robust construction minimizes environmental impact from damage or failure
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SFS60S-HMAT0K02 Safety-Related Absolute Encoder is available for immediate purchase, ideal for industrial safety and automation applications requiring high precision and SIL 2 compliance.
