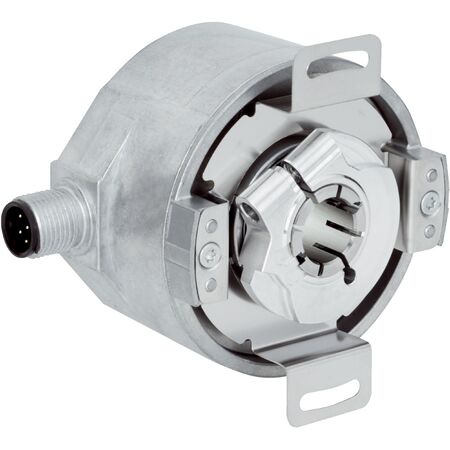

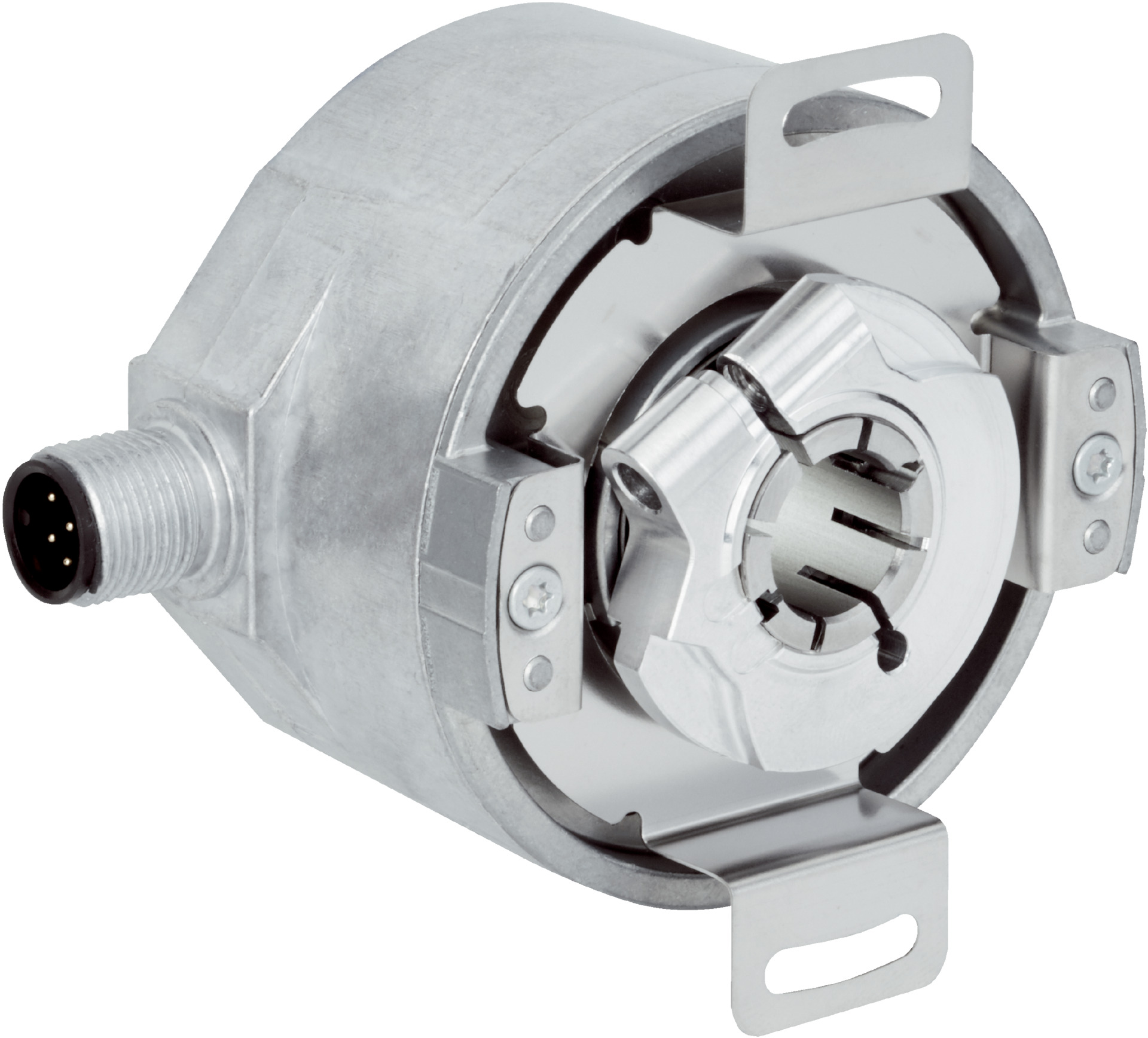

Safety Absolute Encoder SFS60S-HMBT0K02 | SIL 2 & PL d Compliance | 32,768 Steps | IP65 Rated | by SICK
The Safety Absolute Encoder SFS60S-HMBT0K02 is designed for industrial automation, offering SIL 2 and PL d compliance for safety-critical applications. With a measuring step of 0.3″ and a total of 32,768 steps, it ensures precise position measurement. Built for high-speed rotary applications up to 6,000 min⁻¹, this encoder features an IP65 enclosure rating, making it ideal for robust environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFH: 1.7 x 10⁻⁸ per hour
- Measuring step: 0.3″ with 12-bit interpolation
- Total steps: 32,768
- Operating speed: up to 6,000 min⁻¹
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: < 80 mA (no load)
- Connection: Male M12, 8-pin radial connector
- Shaft diameter: 12 mm stainless steel
- Housing: Aluminum die cast with die-cast zinc flange
- Enclosure rating: IP65 (with connector)
- Operating temperature: -30 °C to +95 °C
- Storage temperature: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Memory area: 1,792 Byte
- System accuracy: ± 52″
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and Performance Level PL d (EN ISO 13849)
- Absolute encoder with 32,768 total steps and 0.3″ measuring step
- Binary code output with HIPERFACE® communication interface
- Through hollow shaft design with 12 mm stainless steel shaft
- Operating temperature range from -30 °C to +95 °C
- IP65 enclosure rating with mating connector inserted
- Low operating torque of 0.6 Ncm at +20 °C
- High resistance to shocks (100 g) and vibrations (20 g, 10 Hz to 2,000 Hz)
- Long service life with ball bearings rated for 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related encoder systems and compliant with relevant safety standards.
Applications
- Industrial automation requiring precise absolute position measurement
- Safety-related machinery control with SIL 2 and PL d compliance
- High-speed rotary applications up to 6,000 min⁻¹
- Environments requiring IP65 rated encoders with robust mechanical design
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Robust design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption (<80 mA) contributes to energy efficiency
- Long operational life reduces resource consumption over time
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SFS60S-HMBT0K02 Safety-Related Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
