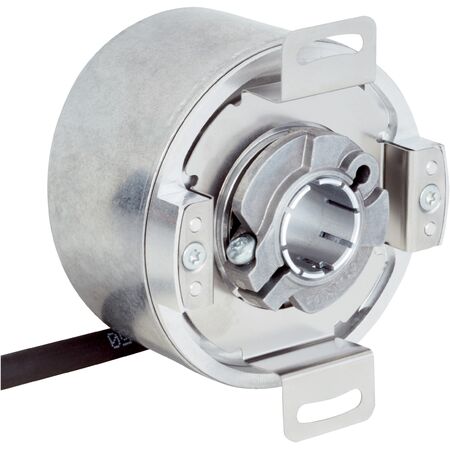

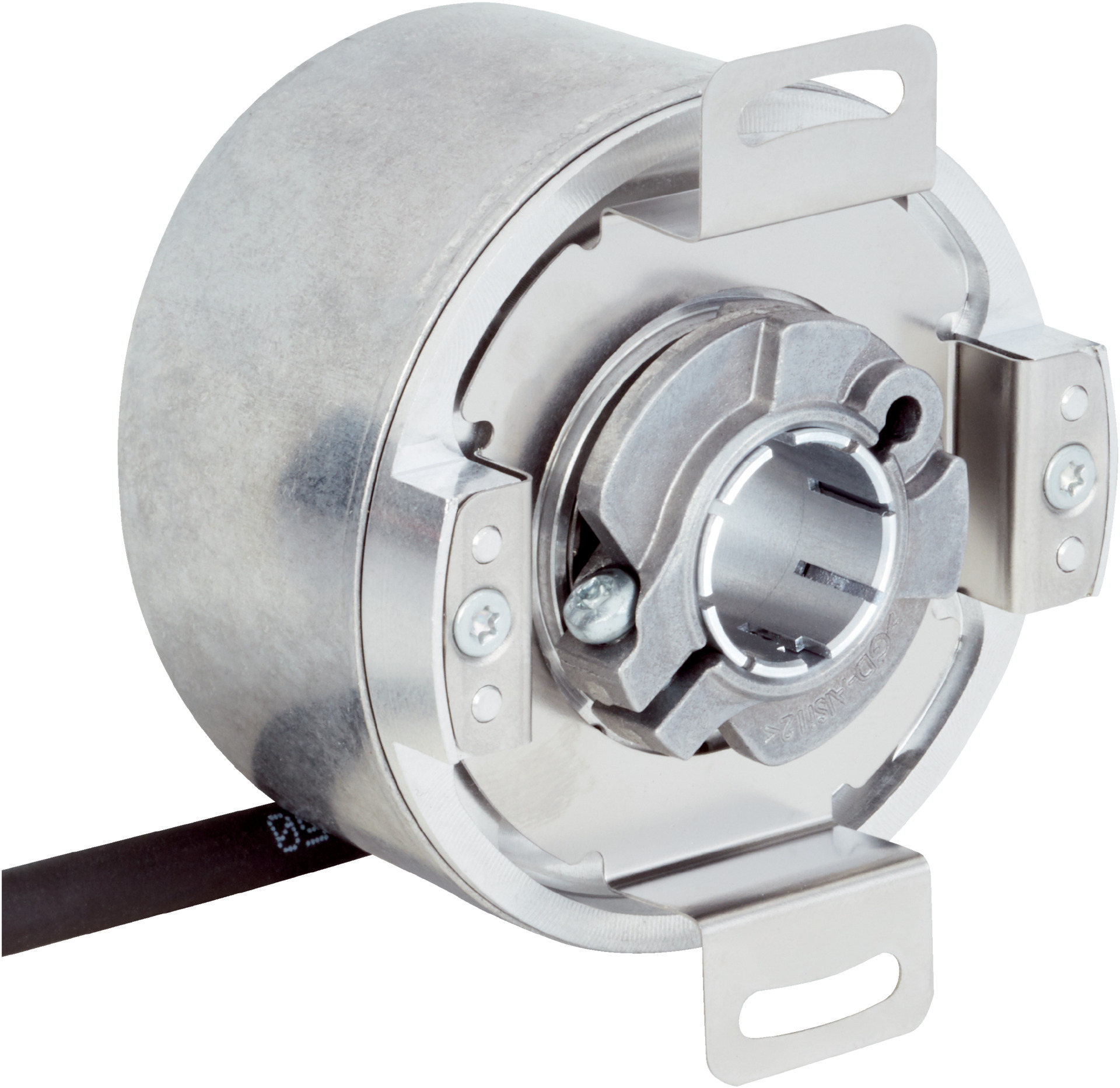

Safety Absolute Encoder SFS60S-HMKT0K02 | SIL 2 Certified | IP65 Enclosure | High Accuracy | by SICK
The Safety Absolute Encoder SFS60S-HMKT0K02 is designed for industrial automation, offering SIL 2 certification and a robust IP65 enclosure. With high system accuracy of ±52″ and safety-related accuracy of ±0.09°, it ensures precise position measurement in safety-critical applications. Ideal for robotics and motion control, this encoder operates at speeds up to 6,000 min⁻¹, making it perfect for high-speed rotary equipment monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- System accuracy: ±52″
- Safety-related accuracy: ±0.09°
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Operating speed: ≤ 6,000 min⁻¹
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: < 80 mA (without load)
- Connection type: 8-wire cable, 1.5 m length
- Shaft diameter: 12 mm, stainless steel
- Enclosure rating: IP65 with mating connector
- Operating temperature range: –30 °C to +85 °C
- Moment of inertia of rotor: 56 gcm²
- Angular acceleration: ≤ 500,000 rad/s²
- Operating torque: 0.6 Ncm at +20 °C
- Start up torque: +0.8 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High system accuracy of ±52″ and safety-related accuracy of ±0.09°
- Operating speed up to 6,000 min⁻¹ with reliable absolute position output
- Robust IP65 enclosure rating with mating connector inserted
- Through hollow shaft design with 12 mm stainless steel shaft
- Communication via HIPERFACE® interface
- Operating temperature range from –30 °C to +85 °C
- Low current consumption below 80 mA
- High resistance to shocks (100 g) and vibrations (20 g)
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety-related electrical equipment and compliant with relevant standards to ensure proper integration and safety.
Applications
- Industrial automation requiring precise and safe position measurement
- Safety-related machinery control systems
- Robotics and motion control applications
- High-speed rotary equipment monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SFS60S-HMKT0K02 Safety-Related Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
