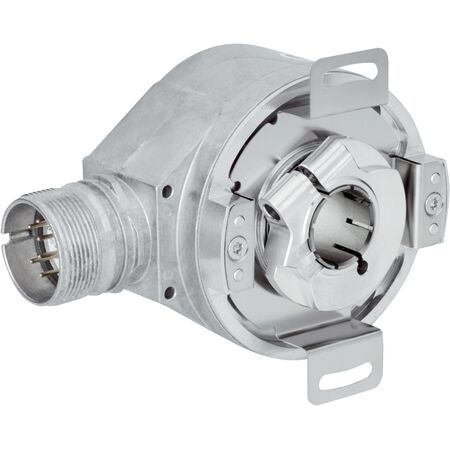

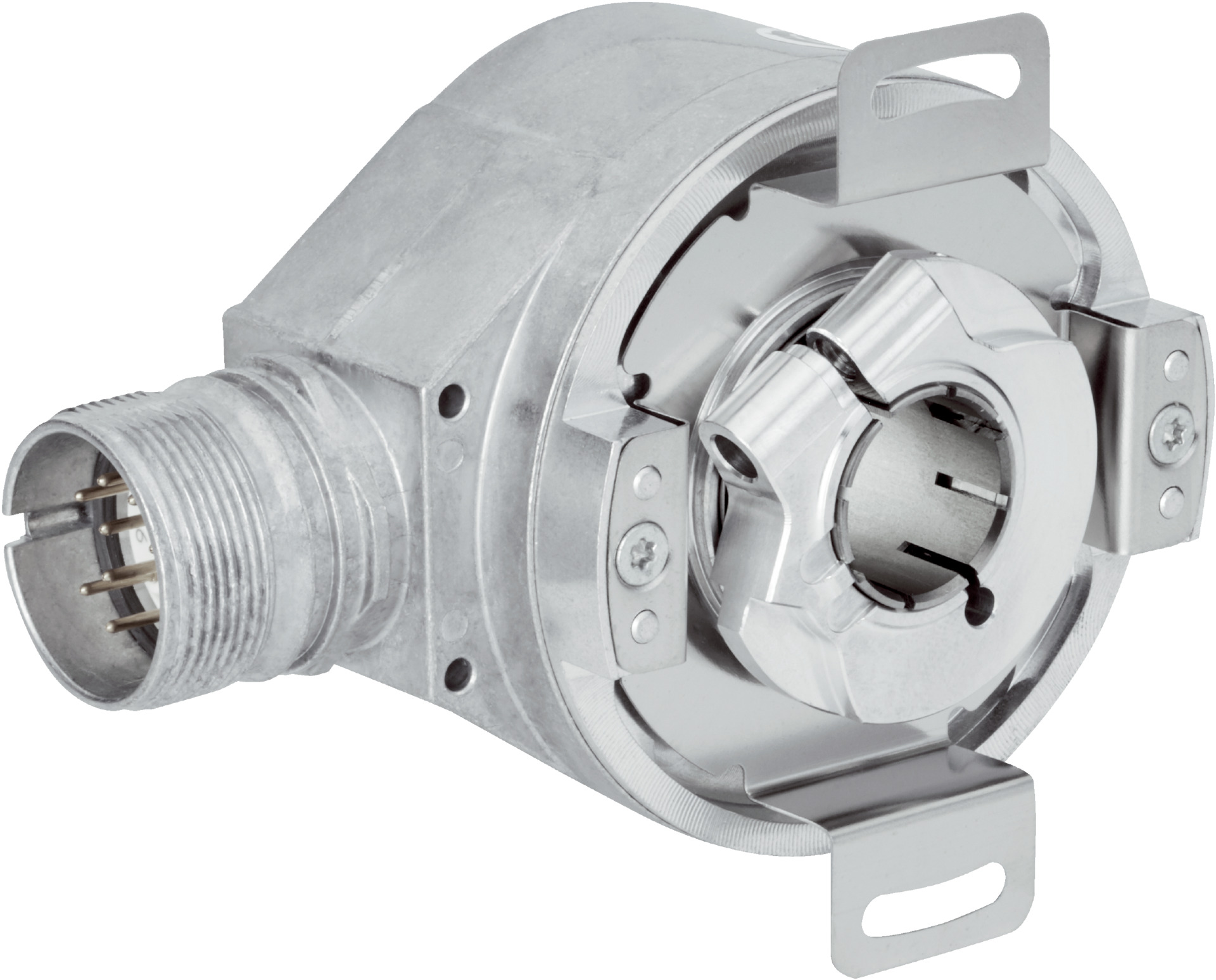

Safety Absolute Encoder SFS60S-HPAT0K02 | SIL 2 & PL d Rated | IP65 Enclosure | by SICK
The Safety Absolute Encoder SFS60S-HPAT0K02 is designed for industrial automation, providing precise position feedback with SIL 2 safety integrity and PL d performance level. With a robust IP65-rated aluminum housing and a high operating speed of up to 6,000 min⁻¹, it's perfect for safety-related machinery control and robotics applications, ensuring reliability and accuracy in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFH: 1.7 x 10⁻⁸ per hour
- Measuring step: 0.3″ with interpolation
- Total steps: 32,768
- Sine/cosine periods per revolution: 1,024
- Operating speed: ≤ 6,000 min⁻¹
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: < 80 mA
- Connection: Male M23, 12-pin radial connector
- Enclosure rating: IP65 with connector inserted
- Operating temperature: –30 °C to +95 °C
- Storage temperature: –40 °C to +100 °C
- Relative humidity: 90%, no condensation
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibrations: 10 g, 10 Hz to 1,000 Hz
- Memory area: 1,792 Byte
- Shaft diameter: 15 mm stainless steel
- Housing material: Aluminum die cast
- Flange material: Die-cast zinc
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and Performance Level PL d (EN ISO 13849)
- High system accuracy of ±52″ with safety-related accuracy ±0.09°
- Through hollow shaft design with 15 mm stainless steel shaft
- Robust aluminum die-cast housing with IP65 rating
- Operating temperature range from –30 °C to +95 °C
- Communication via HIPERFACE® interface
- Low current consumption under 80 mA
- High operating speed up to 6,000 min⁻¹
- Long service life with ball bearings rated for 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation requiring precise and safe position feedback
- Safety-related machinery control systems
- Robotics and motion control applications
- High-speed rotary equipment monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SFS60S-HPAT0K02 Safety-Related Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
