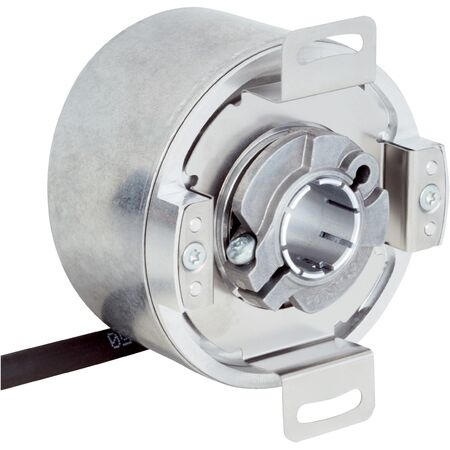

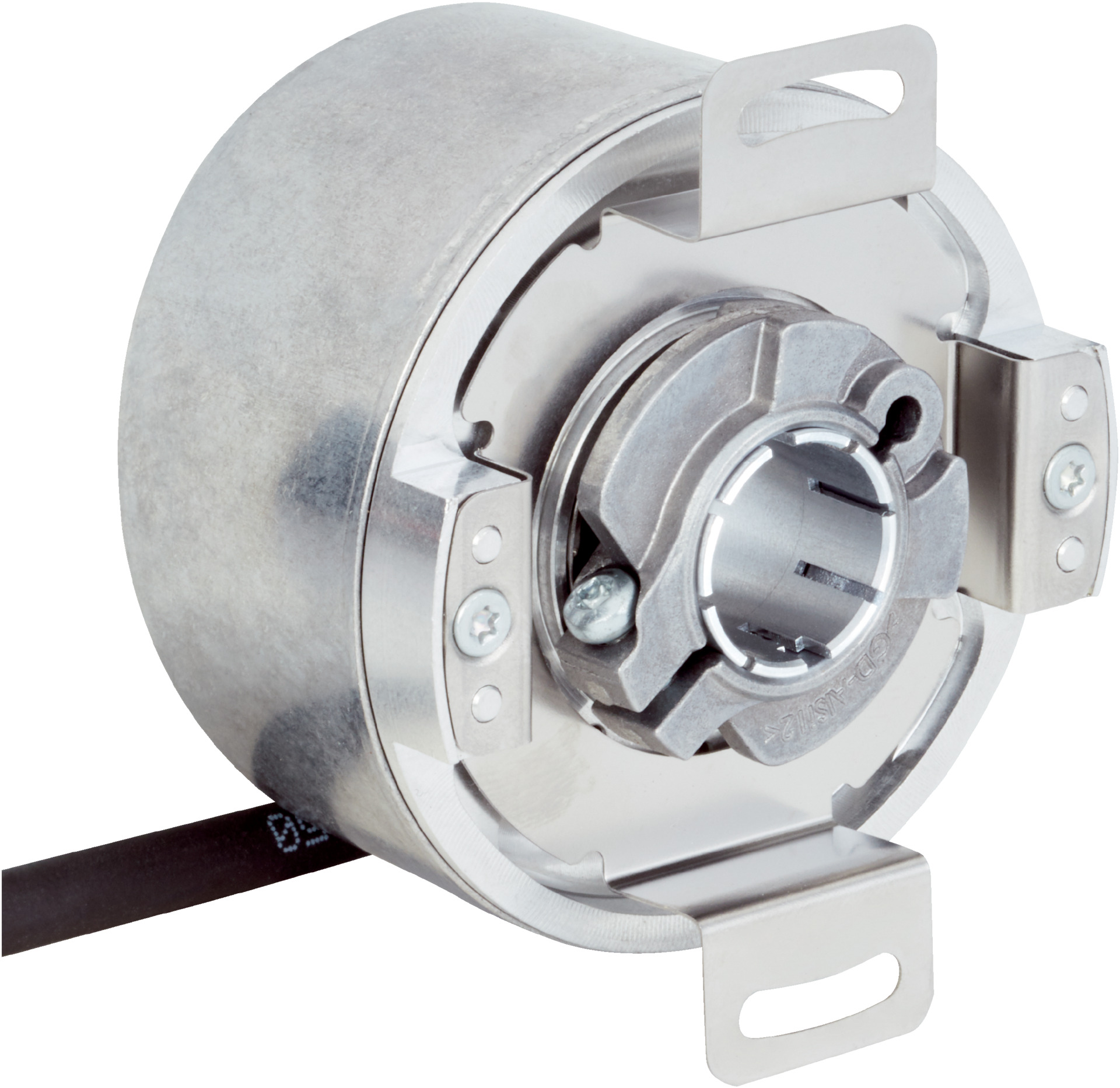

Safety Absolute Encoder SFS60S-HPKT0K02 | SIL 2 Certified | High Accuracy ±0.09° | IP65 Rated | by SICK
The Safety Absolute Encoder SFS60S-HPKT0K02 is designed for industrial automation, offering SIL 2 certification and high system accuracy of ±0.09°. With an operating speed of up to 6,000 min⁻¹ and robust IP65-rated housing, it’s perfect for safety-related motion control systems and robotics, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- System accuracy: ±52″, Safety-related accuracy: ±0.09°
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Operating speed: ≤ 6,000 min⁻¹
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: < 80 mA (without load)
- Connection type: 8-wire cable, 1.5 m length
- Enclosure rating: IP65 with mating connector
- Operating temperature range: –30 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High system accuracy of ±52″ and safety-related accuracy of ±0.09°
- Operating speed up to 6,000 min⁻¹
- Through hollow shaft with 15 mm diameter made of stainless steel
- Robust aluminum die-cast housing with IP65 rating
- Communication via HIPERFACE® interface
- Operating temperature range from –30 °C to +85 °C
- Shock resistance 100 g and vibration resistance 20 g (10 Hz to 2,000 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related motion control systems
- Machine safety monitoring
- Robotics and manufacturing equipment requiring SIL 2 and PL d compliance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
- Robust design reduces environmental impact from failures
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK SFS60S-HPKT0K02 Safety-Related Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
