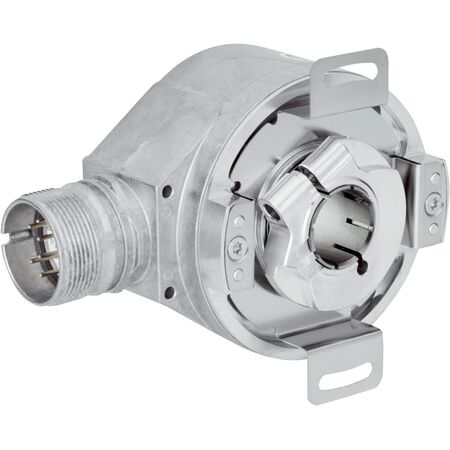

Safety Absolute Encoder SFS60S-HRAT0K02 | SIL 2 Certified | 32,768 Steps Resolution | IP65 Rated | by SICK
The Safety Absolute Encoder SFS60S-HRAT0K02 is designed for industrial automation, featuring SIL 2 certification and a high resolution of 32,768 steps. With a robust aluminum housing and IP65 rating, it ensures reliable performance in safety-critical applications, making it ideal for robotics and motion control systems. Its low current consumption and wide operating temperature range enhance its durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety Integrity Level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- Resolution: 32,768 steps, Measuring step: 0.3″
- System accuracy: ±52″, Safety-related accuracy: ±0.09°
- Operating speed: up to 6,000 min⁻¹
- Supply voltage: 7 V DC to 12 V DC, Recommended: 8 V DC
- Current consumption: < 80 mA (no load)
- Connection: Male M23, 12-pin radial connector
- Shaft diameter: 14 mm stainless steel, Through hollow shaft
- Housing: Aluminum die cast, Flange: Die-cast zinc
- Enclosure rating: IP65 with connector inserted
- Operating temperature: -30 °C to +95 °C
- Shock resistance: 100 g, 6 ms; Vibration resistance: 10 g, 10 Hz to 1,000 Hz
- Memory area: 1,792 Byte
- Output code: Binary, Communication interface: HIPERFACE®
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High resolution with 32,768 total steps and 0.09° safety-related accuracy
- Through hollow shaft with 14 mm diameter made of stainless steel
- Robust aluminum die-cast housing with IP65 rating
- Operating temperature range from -30 °C to +95 °C
- HIPERFACE® communication interface with binary code output
- Low current consumption below 80 mA
- High mechanical durability with ball bearing life of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety-related electrical equipment and compliant with relevant standards.
Applications
- Industrial automation requiring precise and safe position measurement
- Safety-related machinery control systems
- Robotics and motion control applications
- High-speed rotary applications up to 6,000 min⁻¹
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
- Robust design reduces environmental impact from maintenance and downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SFS60S-HRAT0K02 Safety-Related Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
