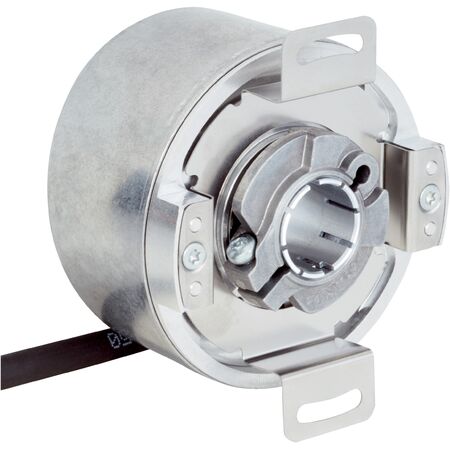

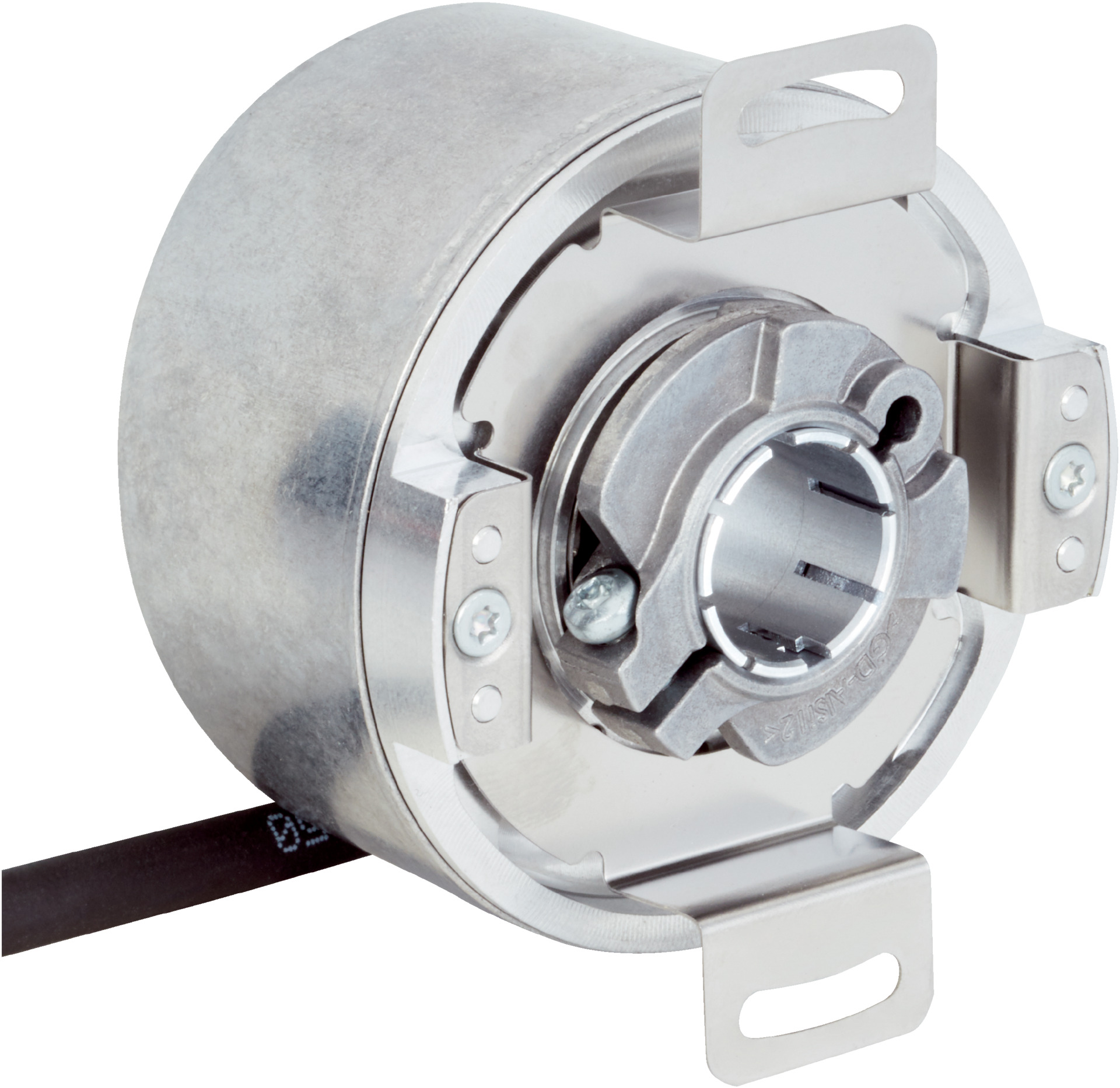

Safety Absolute Encoder SFS60S-HRKT0K02 | SIL 2 Certified | High System Accuracy | IP65 Rated | by SICK
The Safety Absolute Encoder SFS60S-HRKT0K02 is designed for industrial automation, offering SIL 2 certification and high system accuracy of ±52″. With a robust aluminum housing and IP65 rating, it ensures reliable performance in safety-critical applications. Ideal for robotics and motion control, this encoder operates at speeds up to 6,000 min⁻¹, making it perfect for precise position measurement in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Measuring step: 0.3″ with 12 bit interpolation
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Operating speed: ≤ 6,000 min⁻¹
- Available memory area: 1,792 Byte
- System accuracy: ±52″
- Code type: Binary, rising sequence for clockwise rotation
- Communication interface: HIPERFACE®
- Connection: 8-wire cable, 1.5 m length
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: < 80 mA (no load)
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft diameter: 14 mm, stainless steel
- Housing: Aluminum die cast, flange: die-cast zinc
- Enclosure rating: IP65 with connector
- Operating temperature: –30 °C to +85 °C
- Storage temperature: –40 °C to +90 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Operating height: up to 2,000 m above sea level
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High system accuracy of ±52″ with safety-related accuracy ±0.09°
- Through hollow shaft with 14 mm diameter made of stainless steel
- Robust aluminum die-cast housing with IP65 rating
- Operating temperature range from –30 °C to +85 °C
- Communication interface: HIPERFACE® with binary code output
- Low current consumption below 80 mA
- High resistance to shocks (100 g) and vibrations (20 g, 10 Hz to 2,000 Hz)
- Long service life with ball bearings rated for 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation requiring precise and safe position measurement
- Safety-related machinery control systems
- Robotics and motion control applications
- High-speed rotary applications up to 6,000 min⁻¹
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SFS60S-HRKT0K02 Safety-Related Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
