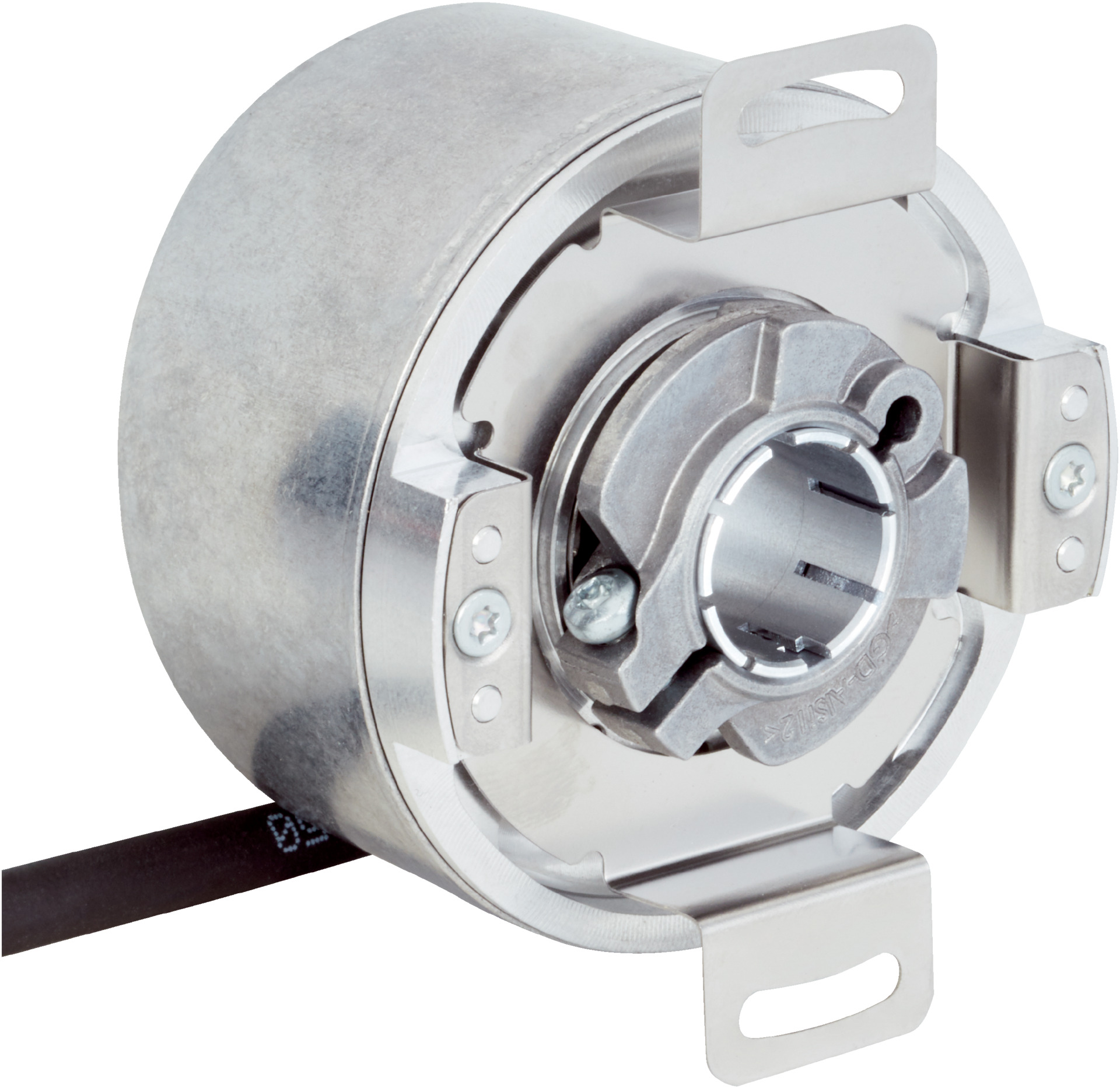

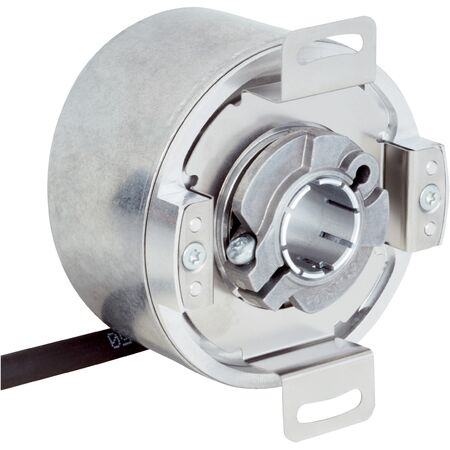

Safety Absolute Encoder SFS60S-HRZT0S01 | SIL 2 & PL d Rated | 32,768 Steps | IP65 Enclosure | by SICK
The Safety Absolute Encoder SFS60S-HRZT0S01 is designed for industrial automation, providing precise position feedback with a SIL 2 safety integrity level and a performance level of PL d. With 32,768 total steps and a robust IP65-rated aluminum housing, it ensures reliable operation in safety-critical applications, making it ideal for robotics and high-speed machinery control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety Integrity Level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- Total steps: 32,768; Measuring step: 0.3″
- Sine/cosine periods per revolution: 1,024
- Operating speed: ≤ 6,000 min⁻¹
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: < 80 mA (without load)
- Connection: 8-wire cable with M23 12-pin male connector, 0.6 m length
- Shaft diameter: 14 mm stainless steel, through hollow shaft
- Housing material: Aluminum die cast; Flange material: Die-cast zinc
- Enclosure rating: IP65 with mating connector inserted
- Operating temperature: -30 °C to +85 °C
- Shock resistance: 100 g, 6 ms; Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Safety-related accuracy: ± 0.09°; System accuracy: ± 52″
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- Absolute encoder with 32,768 total steps and 0.3″ measuring step
- Through hollow shaft design with 14 mm stainless steel shaft
- Operating speed up to 6,000 min⁻¹ with reliable absolute position output
- Robust aluminum die-cast housing with IP65 rating
- Cable with 8 wires and M23 12-pin male connector, 0.6 m length
- Operating temperature range from -30 °C to +85 °C
- High resistance to shocks (100 g) and vibrations (20 g, 10 Hz to 2,000 Hz)
- Safety-related accuracy ±0.09° and system accuracy ±52″
- Low current consumption below 80 mA without load
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure compliance with safety standards and proper connection of the HIPERFACE interface.
Applications
- Industrial automation requiring precise and safe position feedback
- Safety-related machinery control systems
- Robotics and motion control applications
- High-speed rotary equipment monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK SFS60S-HRZT0S01 safety-related absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
