Safety Absolute Encoder SKS36S-HFA0-K02 | SIL 2 & PL d Compliance | 4,096 Steps | by SICK
The Safety Absolute Encoder SKS36S-HFA0-K02 is designed for industrial automation, offering SIL 2 and PL d compliance for safety-critical applications. With a high resolution of 4,096 total steps and an operating speed of up to 12,000 min⁻¹, it ensures precise position measurement in robust environments. Its compact design and IP50 enclosure make it ideal for reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

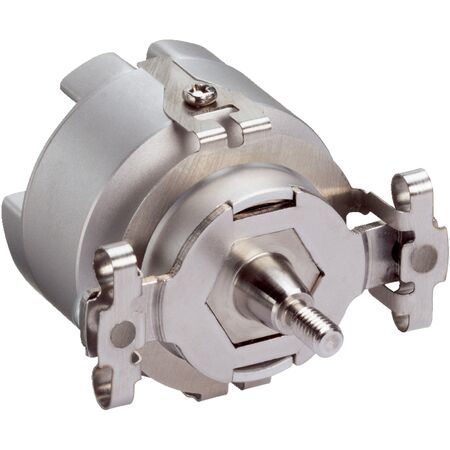

Product Name/Title: Safety Absolute Encoder SKS36S-HFA0-K02 | SIL 2 & PL d Compliance | 4,096 Steps | by SICK
Brand: SICK
SKU: 1036556
Alternatively Known As: Safety Absolute Encoder, HIPERFACE Encoder, SIL 2 Encoder, PL d Encoder, Rotary Encoder
Technical Specifications
- Safety Integrity Level: SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Category: 3 (EN ISO 13849)
- Performance Level: PL d (EN ISO 13849)
- Mean Probability of Dangerous Failure per Hour (PFH): 1.30 x 10⁻⁸
- Mission Time: 20 years (EN ISO 13849)
- Sine/Cosine Periods per Revolution: 128
- Total Number of Steps: 4,096
- Measuring Step: 2.5″ with 12-bit interpolation
- Integral Non-linearity: ±80″
- Differential Non-linearity: ±40″
- Operating Speed: ≤ 12,000 min⁻¹
- Available Memory Area: 1,792 Byte
- System Accuracy: ±120″
- Code Type: Binary
- Communication Interface: HIPERFACE®
- Connection Type: Male connector, 8-pin, radial
- Supply Voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current Consumption: 60 mA
- Output Frequency for Sine/Cosine Signals: ≤ 65 kHz
- Shaft Version: Tapered shaft
- Flange Type: Stator coupling
- Moment of Inertia of Rotor: 4.5 gcm²
- Operating Torque: 0.2 Ncm
- Start-up Torque: +0.3 Ncm
- Permissible Static Movement: ±0.1 mm radial, -0.4 mm axial, +0.2 mm axial
- Permissible Dynamic Movement: ±0.05 mm radial, ±0.1 mm axial
- Life of Ball Bearings: 3.6 x 10⁹ revolutions
- Operating Temperature Range: –20 °C to +110 °C
- Storage Temperature Range: –40 °C to +125 °C
- Relative Humidity: 90%, condensation not permitted
- Shock Resistance: 100 g, 6 ms
- Vibration Resistance: 50 g, 10 Hz to 2,000 Hz
- EMC Compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure Rating: IP50 with mating plug inserted
- Operating Height: Up to 2,000 m above sea level
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and SILCL2 (IEC 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High resolution with 4,096 total steps and 128 sine/cosine periods per revolution
- Operating speed up to 12,000 min⁻¹ with reliable absolute position output
- Binary code output with HIPERFACE® communication interface
- Compact design with tapered shaft and stator coupling
- Wide operating temperature range from –20 °C to +110 °C
- IP50 enclosure rating with mating plug inserted
- Robust against shocks (100 g) and vibrations (50 g, 10 Hz to 2,000 Hz)
- Low operating torque of 0.2 Ncm and start-up torque of +0.3 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related machinery requiring SIL 2 and PL d compliance
- High-speed rotary applications up to 12,000 min⁻¹
- Environments requiring robust and reliable encoder solutions
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption with 60 mA current draw
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SKS36S-HFA0-K02 safety-related absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
