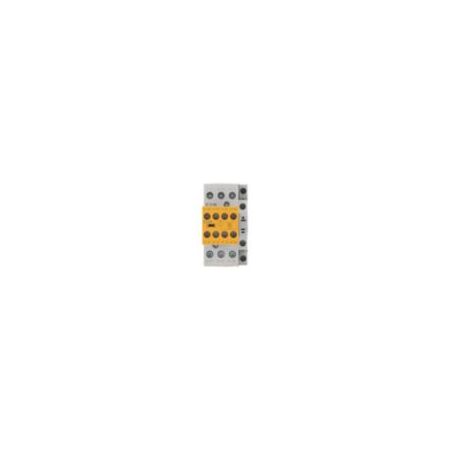

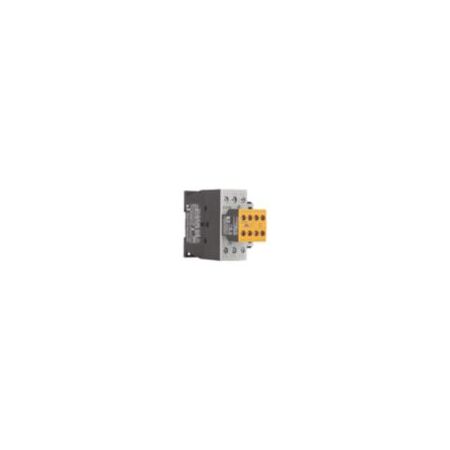

Safety Contactor 10 kW | 24V DC | 2 NO & 3 NC Contacts | IP00 by Eaton
Eaton's safety contactor rated for 10 kW at 415 V AC-3 and 24V DC, featuring 2 normally open and 3 normally closed contacts. Ideal for industrial motor control applications, it ensures high efficiency and a mechanical lifespan of 10 million operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Contactor 10 kW | 24V DC | 2 NO & 3 NC Contacts | IP00 by Eaton
Brand: Eaton
SKU: Y7-191710
Alternatively Known As: DILMS Safety Contactor, Eaton DILMS17-23, DILMS Contactor 24V DC, Motor Safety Contactor Eaton
Technical Specifications
- Rated operational power at AC-3, 415 V, 50 Hz: 10 kW
- Rated control supply voltage (Us) at DC: 24 V
- Number of auxiliary contacts: 2 normally open, 3 normally closed
- Rated operational current at AC-3, 400 V: 17 A
- Rated breaking capacity at 380/400 V: 170 A
- Mechanical lifespan: 10,000,000 operations (DC operated)
- Operating frequency: 5000 mechanical operations per hour (DC operated)
- Overvoltage category: III
- Pollution degree: 3
- Degree of protection: IP00
- Terminal capacity flexible with ferrule: 0.75 - 16 mm²
- Tightening torque: 1.2 Nm (control circuit cables), 3.2 Nm (main cables)
- Switching time (make contacts, closing delay): max 47 ms
- Switching time (make contacts, opening delay): max 30 ms
- Duty factor: 100%
- Power consumption (pick-up) at DC: 12 W
- Power consumption (sealing) at DC: 0.9 W
- Dimensions (H x L x W): 85mm x 138mm x 45mm
- Weight: 0.613 kg
Key Features
- Rated operational power up to 10 kW at 415 V AC-3
- Rated control supply voltage 24 V DC
- 2 normally open and 3 normally closed contacts
- Screw terminals with M3.5 and M5 screws
- Mechanical lifespan of 10,000,000 operations (DC operated)
- Protection against direct contact when actuated from front (EN 50274)
- Rated impulse withstand voltage 8000 V AC
- Operating temperature range -25 °C to 60 °C
- IP00 degree of protection
- Suppressor circuit in actuating electronics with mirror contact
- Short-circuit current rating up to 125 A
- Switching capacity 40 A for main contacts
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into motor control systems.
Applications
- Contactors for motors including motors with efficiency class IE3
- Suitable for normal AC induction motors starting, plugging, reversing, inching
- Non-inductive or slightly inductive loads, resistance furnaces
- Special purpose ratings for ballast electrical discharge lamps, elevator control, refrigeration control, resistance air heating, tungsten incandescent lamps
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High efficiency motor control reduces energy consumption
- Long mechanical lifespan reduces waste and replacement frequency
- Complies with standards ensuring safe and efficient operation
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller® series DILMS Safety Contactor DILMS17-23(RDC24) is available now for immediate purchase. Ideal for industrial motor control and safety applications.
