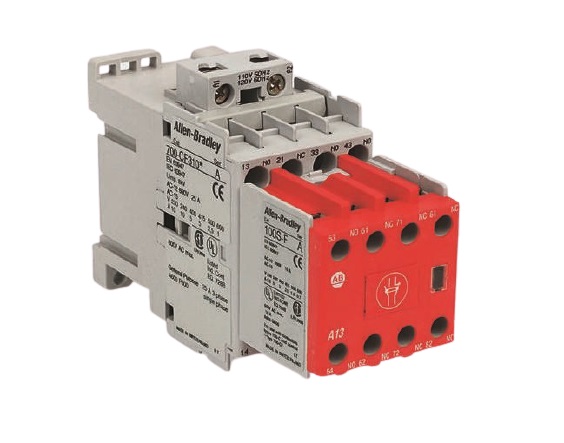

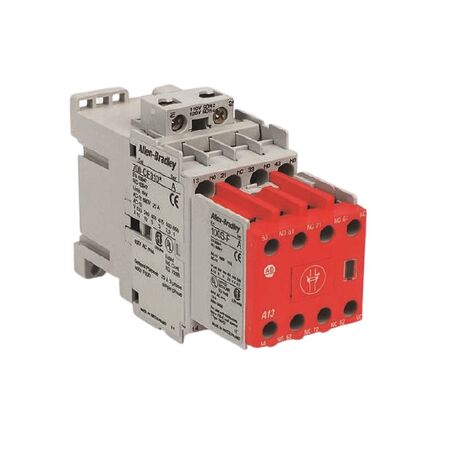

Safety Contactor 23 Amp 110 VAC | 3 Normally Open Power Poles | DIN Rail Mountable | by Allen-Bradley
The Safety Contactor 23 Amp 110 VAC is designed for reliable motor control in industrial applications. With a robust 23 Amp current rating and 110 VAC coil voltage, it features 3 normally open power poles and auxiliary contacts for enhanced functionality. Ideal for non-reversing motor control and safety switching, this contactor ensures compliance with electrical safety standards and is perfect for 3-phase electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Current Rating: 23 Amp
- Coil Voltage: 110 VAC, 50/60 Hz
- Power Poles: 3 Normally Open
- Auxiliary Contacts: 2 Normally Open, 3 Normally Closed
- Coil Termination: Line side
- Contact Type: Standard
- Operation: Full voltage, non-reversing
- Phase: 3-phase
- Mounting: DIN rail mountable
- Style: Open
- Dimensions (H x L x W): 90mm x 75mm x 45mm
- Weight: 1.5 kg
Key Features
- 23 Amp current rating
- 110 VAC coil voltage at 50/60 Hz
- 3 normally open power poles
- 2 normally open auxiliary contacts and 3 normally closed auxiliary contacts
- Line side coil termination
- Standard contact configuration
- Full voltage operation
- Non-reversing contactor
- Open style design
- DIN rail mountable
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial motor control
- Safety switching in manufacturing plants
- Non-reversing motor control applications
- 3-phase electrical systems requiring safety contactors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances safety and reliability in electrical systems, reducing risk of faults and downtime
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 100SC23KD23C Safety Contactor is available for immediate purchase, ideal for industrial and commercial motor control safety applications.
