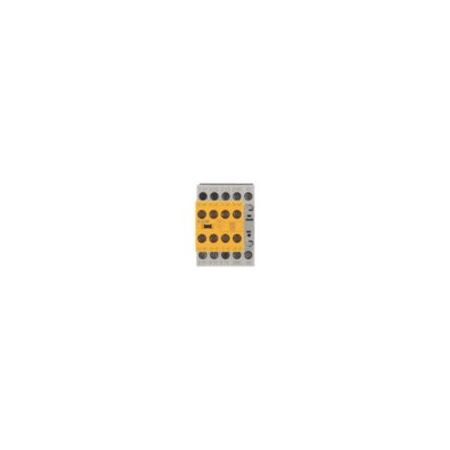

Safety Contactor 24V DC | 12A Operational Current | 10 Million Operations | IP20 by Eaton

BRAND: Eaton
SKU: Y7-191709
$248.40 List price: $309.50
+ −
30 Days Return Delivery Options
Safety contactor with 24V DC coil voltage and 12A operational current—ideal for industrial motor control and safety applications. Built for efficiency, with a mechanical lifespan of 10 million operations and IP20 protection.

Product Name/Title: Safety Contactor 24V DC | 12A Operational Current | 10 Million Operations | IP20 by Eaton

Brand: Eaton

SKU: Y7-191709

Alternatively Known As: Eaton DILMS12-23 Safety Contactor, Moeller Safety Contactor 24V DC, Motor Safety Contactor Eaton, DILMS Safety Relay Contactor

Technical Specifications
  • Rated operational voltage (Ue) at AC - max: 690 V
  • Rated insulation voltage (Ui): 690 V
  • Rated making capacity up to 690 V: 168 A
  • Rated operational current (Ie) at AC-3, 220-240 V: 12 A
  • Rated operational current (Ie) at AC-3, 380-415 V: 12 A
  • Rated operational current (Ie) at AC-4, 220-240 V: 7 A
  • Rated operational current (Ie) at DC-1, 110 V: 20 A
  • Rated operational current (Ie) at DC-1, 220 V: 15 A
  • Rated breaking capacity at 500 V: 100 A
  • Rated breaking capacity at 660/690 V: 70 A
  • Switching time (make contacts, closing delay) max: 31 ms
  • Switching time (make contacts, opening delay) max: 12 ms
  • Terminal capacity (flexible with ferrule): 2 x (0.75 - 2.5) mm², 1 x (0.75 - 2.5) mm²
  • Terminal capacity (solid): 1 x (0.75 - 2.5) mm², 2 x (0.75 - 2.5) mm², 1 x (0.75 - 4) mm²
  • Tightening torque for screw terminals: 1.2 Nm
  • Rated control supply voltage (Us) at DC: 24 V
  • Mechanical shock resistance according to IEC/EN 60068-2-27
  • Heat dissipation, current-dependent: 1.5 W
  • Static heat dissipation, non-current-dependent: 4.5 W
  • Dimensions (H x L x W): 68mm x 117mm x 45mm
  • Weight: 0.354 kg
Key Features
  • Rated operational power at AC-3, 380/400 V, 50 Hz: 5.5 kW
  • 2 Normally Open (N/O) and 3 Normally Closed (N/C) contacts
  • 24 V DC coil voltage with DC operation
  • Screw terminals for secure wiring
  • Mirror contact and varistor suppressor circuit included
  • IP20 degree of protection
  • Mechanical lifespan of 10,000,000 operations (DC operated)
  • Rated impulse withstand voltage of 8000 V AC
  • Protection against direct contact when actuated from front (EN 50274)
  • Shock resistance compliant with IEC/EN 60068-2-27
  • Operating temperature range from -25 °C to 60 °C
  • Rated breaking capacity up to 120 A at 220/230 V and 380/400 V
  • Rated operational current up to 22 A at AC-1, 380-415 V
  • Duty factor 100%
  • Power consumption (pick-up and sealing) at DC: 4.5 W
Professional Installation Requirements
  • Professional installation by a qualified electrician or technician is required to ensure compliance with safety standards and proper operation.
Applications
  • Contactors for motors
  • Suitable for motors with efficiency class IE3
  • Industrial motor control and safety applications
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed for high efficiency motor control reducing energy waste
  • Durable construction extends product life reducing replacement frequency
  • Complies with standards ensuring safe and efficient operation
Warranty Information

Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.

Available Now

The Eaton Moeller® series DILMS Safety Contactor 24V DC is available now for immediate purchase. Ideal for industrial motor control and safety applications.

Product specifications (skuPage.191709.pdf, 126 Kb) [Download]
