Trade Discount 25%

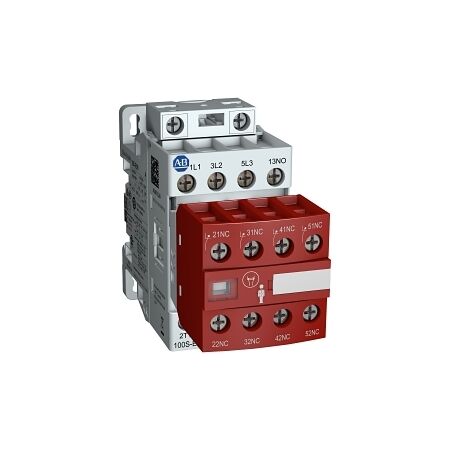

Safety Contactor 4kW 4P | 250-500V AC/DC | 2NO 2NC Auxiliary by NHP
Safety contactor with 4kW power and 250-500V AC/DC coil—ideal for industrial machinery control and commercial safety systems. Built for reliability, with 2NO and 2NC auxiliary contacts for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 100SE Safety Contactor 4kW 4P 250-500V AC/DC Coil 2NO 2NC Auxiliary
Brand: NHP
SKU: 100SE09KN422C
Alternatively Known As: Safety Contactor, Power Contactor, 100SE Contactor
Technical Specifications
- Number of Normally Open Contacts: 4
- Number of Normally Closed Contacts: 0
- Rated Operation Current at AC 3, 400V: 9 A
- Rated Operation Power at AC 3, 400V: 4 kW
- Max Rated Operation Voltage: 690 V
- Voltage Type for Actuating: AC/DC
- Rated Control Supply Voltage at AC 50 Hz: 250-500 V
- Rated Control Supply Voltage at DC: 250-500 V
- Number of Auxiliary Contacts (NO): 2
- Number of Auxiliary Contacts (NC): 2
- Rated Operation Current at AC 3, 690V: 7 A
- Rated Operation Power at AC 3, 690V: 5.5 kW
- Power Consumption AC Coil Pickup: 50 VA
- Power Consumption AC Coil Hold In: 2.2 VA
- Power Consumption DC Coil Pickup: 50 W
- Power Consumption DC Coil Hold In: 2 W
- Type of Electrical Connection: Screw connection
- Degree of Protection: IP20
- Mounting Method: DIN-rail/screw
- Dimensions (H x L x W): 86mm x 110.5mm x 45mm
- Weight: 0.36 kg
Key Features
- 4 Pole design with 2 Normally Open and 2 Normally Closed auxiliary contacts.
- Rated for operation at 4 kW with a voltage range of 250-500V AC/DC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Safety systems in buildings
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Efficient operation reduces energy consumption in industrial applications.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 100SE Safety Contactor is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable safety control.
Non-Returnable & Non-Cancellable
