Safety Contactor 7.5kW 3 Pole | 240VAC Coil | 1NO 4NC by NHP
Safety contactor with 7.5kW power and 3 pole design—ideal for industrial machinery control and commercial HVAC systems. Built for reliable circuit control, with 240VAC coil and 1NO 4NC auxiliary contacts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

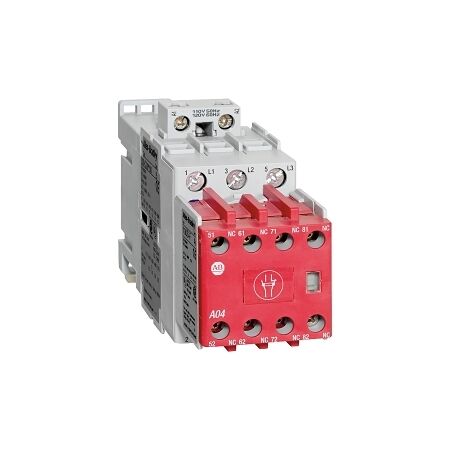

Product Name/Title: Allen-Bradley 100SC Safety Contactor 7.5kW 3Pole 240VAC Coil 1NO 4NC Contact Auxiliary
Brand: NHP
SKU: 100SC16T14BC
Alternatively Known As: Safety Contactor, Power Contactor, AC Contactor
Technical Specifications
- Rated operation current at AC 3, 400 V: 16 A
- Rated operation power at AC 3, 400 V: 7.5 kW
- Rated operation current at AC 1, 400 V: 32 A
- Max rated operation voltage: 690 V
- Control supply voltage at AC 50 Hz: 240 V
- Power consumption AC coil pickup: 75 VA
- Power consumption AC coil hold-in: 9.5 VA
- Degree of protection: IP20
- Mounting method: DIN-rail/screw
- Dimensions (H x L x W): 81mm x 120mm x 45mm
- Weight: 0.45 kg
Key Features
- 3 Pole design with 1 Normally Open and 4 Normally Closed auxiliary contacts.
- Rated for 7.5 kW operation at 240 VAC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 100SC Safety Contactor is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit control.
