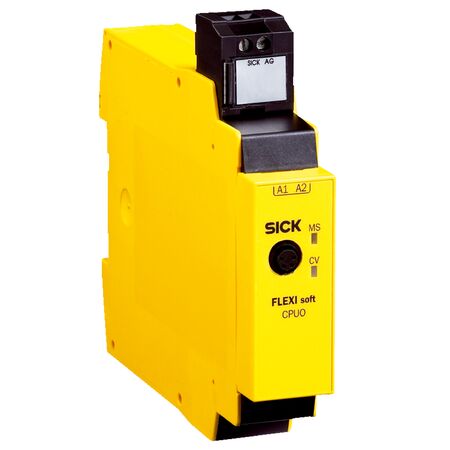

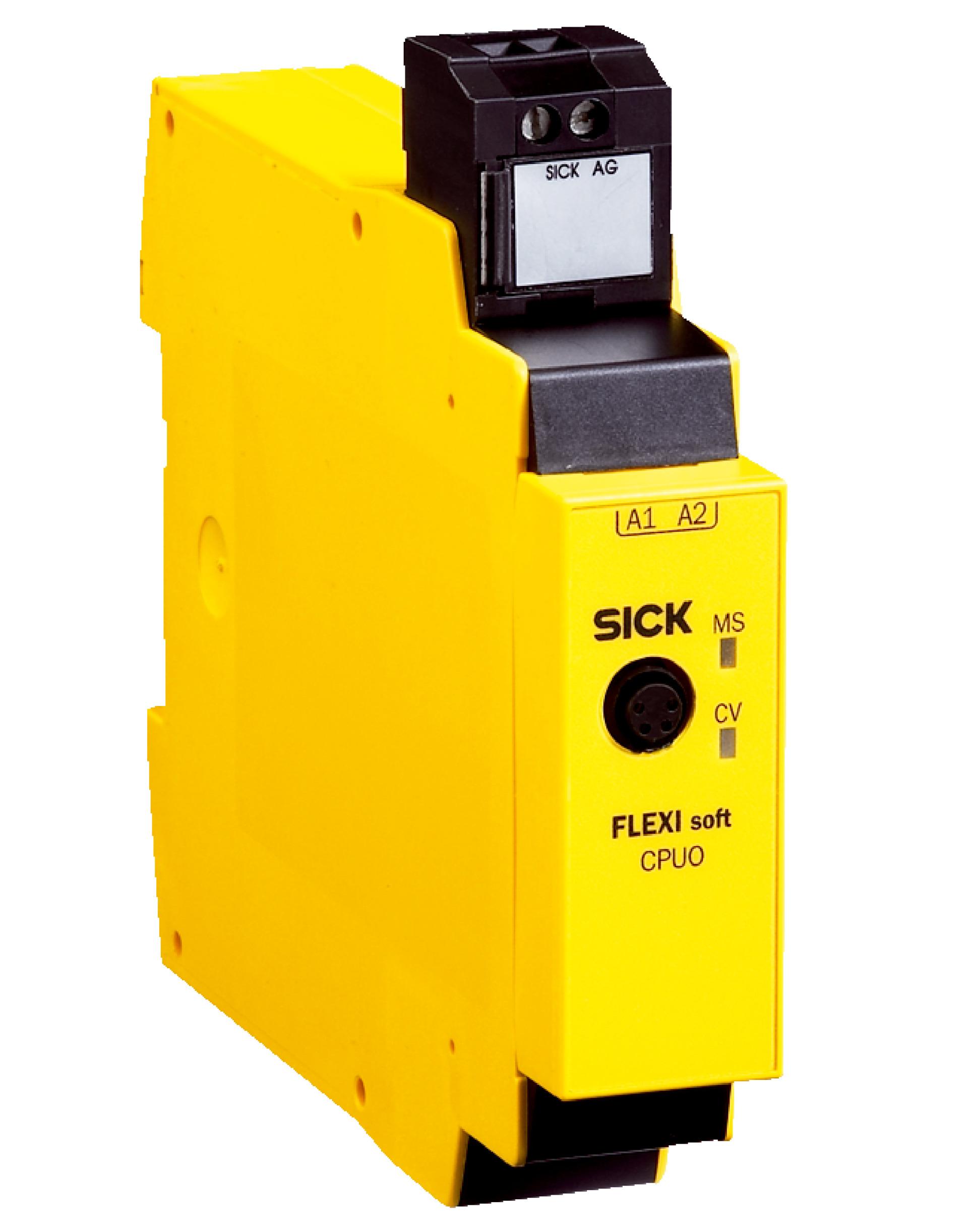

Safety Control Module FX3-CPU000000 | SIL 3 & Category 4 | Low Power Consumption | by SICK
The Safety Control Module FX3-CPU000000 is designed for industrial safety control systems, featuring SIL 3 safety integrity and Category 4 compliance. With a low internal power consumption of ≤ 2.5 W and an operating temperature range of -25 °C to +55 °C, this module is perfect for machine safety monitoring and automation safety applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Control Module FX3-CPU000000 | SIL 3 & Category 4 | Low Power Consumption | by SICK
Brand: SICK
SKU: 1043783
Alternatively Known As: Safety Control Module, FX3 CPU Module, Industrial Safety CPU
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.07 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- System connection: System plug (ordered separately)
- Number of EFI interfaces: 0
- Connection type: Plug-in spring terminals
- Configuration and diagnostics interface: RS-232 (M8 female connector, 4-pin)
- Protection class: III (EN 61140)
- Type of voltage supply: PELV or SELV
- Supply voltage VS: 24 V DC (16.8 V DC to 30 V DC)
- Internal power consumption: ≤ 2.5 W
- Overvoltage category: II (EN 61131-2)
- Switch-on time: ≤ 18 s
- Enclosure rating: IP20 (EN 60529)
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: ≤ 95 %, Non-condensing
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.111 kg
Key Features
- Main module for safety control
- Configuration via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)
- Plug-in spring terminal connections
- RS-232 configuration and diagnostics interface with M8 female connector
- Low internal power consumption (≤ 2.5 W)
- Protection class III (EN 61140)
- Supply voltage 24 V DC (16.8 V DC to 30 V DC)
- Overvoltage category II (EN 61131-2)
- Switch-on time ≤ 18 seconds
- Enclosure rating IP20 (EN 60529)
- Operating temperature range -25 °C to +55 °C
- Storage temperature range -25 °C to +70 °C
- Non-condensing air humidity up to 95%
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety control systems and electrical standards.
Applications
- Industrial safety control systems
- Machine safety monitoring
- Automation safety applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Designed for long operational life minimizing electronic waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK FX3-CPU000000 Main Module is available for immediate purchase, ideal for industrial safety and automation applications.
