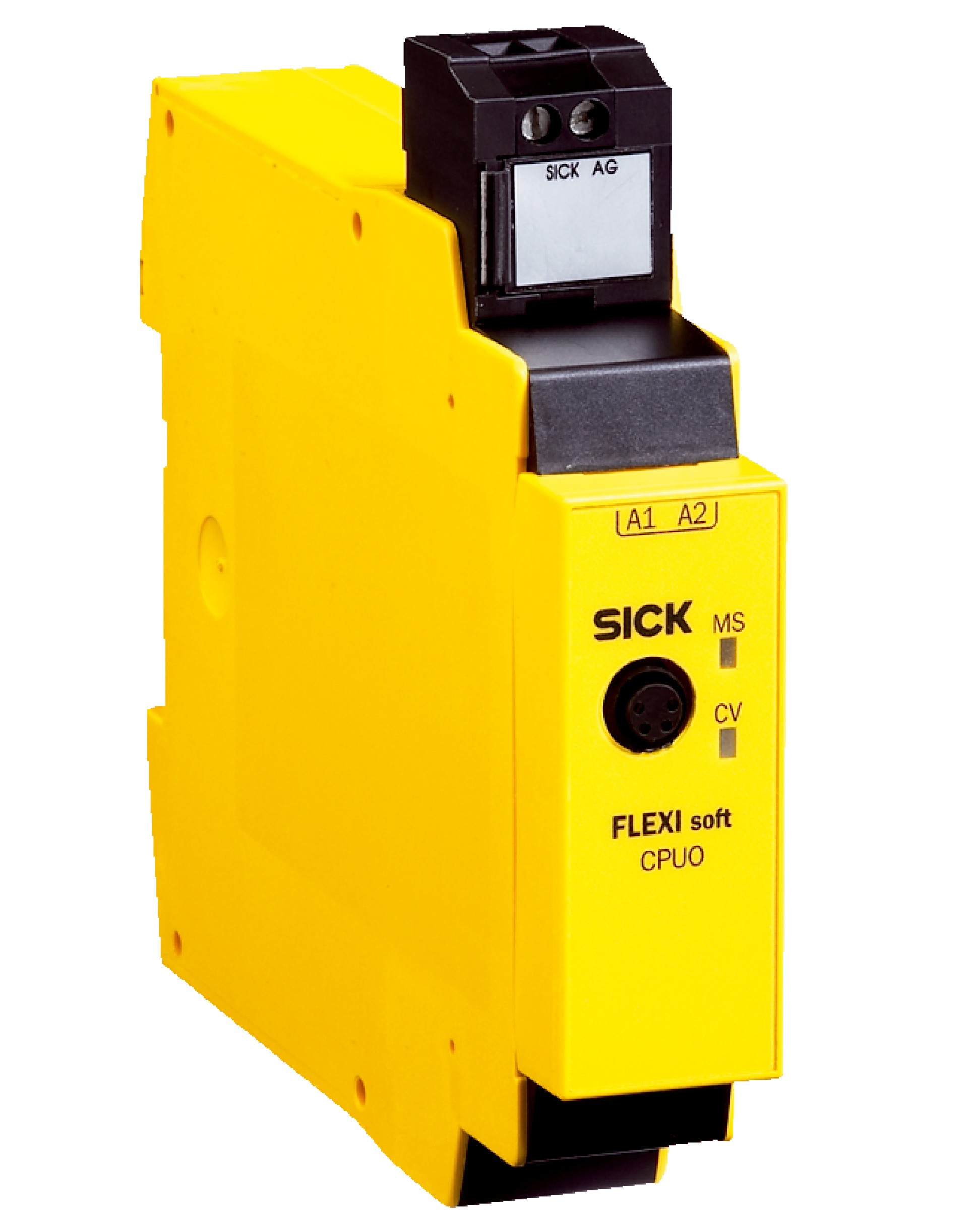

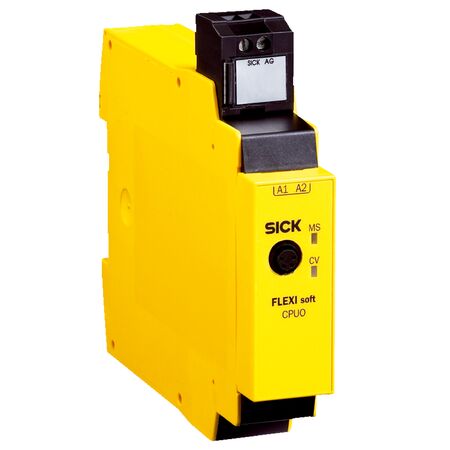

Safety Control Module FX3-CPU000010 | SIL 3 & Category 4 | IP20 Rated | by SICK
The Safety Control Module FX3-CPU000010 is designed for industrial safety control systems, featuring SIL 3 safety integrity and Category 4 compliance. With a protective coating for challenging environments and low power consumption, it's perfect for machine safety monitoring and automation applications, ensuring reliable performance over a mission time of 20 years.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Control Module FX3-CPU000010 | SIL 3 & Category 4 | IP20 Rated | by SICK
Brand: SICK
SKU: 1050615
Alternatively Known As: Safety Control Module FX3 CPU, FX3 CPU Main Module, SICK Safety CPU Module
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 1.07 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Internal power consumption: ≤ 2.5 W
- Overvoltage category: II (EN 61131-2)
- Switch-on time: ≤ 18 seconds
- Protection class: III (EN 61140)
- Enclosure rating: IP20 (EN 60529)
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- Gas resistance: Sulfur dioxide 25 ppm for 21 days at 25 °C
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.111 kg
Key Features
- Main module for safety control
- Configuration via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)
- Protective coating for resistance to challenging ambient conditions including sulfur
- Plug-in spring terminal connection
- RS-232 configuration and diagnostics interface with M8 female connector (4-pin)
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with safety control systems and relevant standards.
Applications
- Industrial safety control systems
- Machine safety monitoring
- Automation safety applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Protective coating extends product lifespan reducing waste
- Low internal power consumption (≤ 2.5 W) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK FX3-CPU000010 Main Module is available for immediate purchase, ideal for industrial safety and automation applications.
