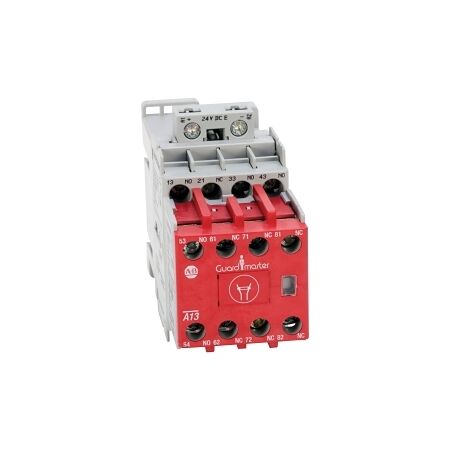

Allen-Bradley 700S-CF Safety Control Relay 24VDC Coil 8Pole 6NO 2NC Contact Aux Bifuracated Contact

Safety Control Relay 24VDC Coil | 8 Pole 6NO 2NC | Bifurcated Contact by NHP

BRAND: NHP

SKU: 700SCFB620EJC

$412.90 List price: $548.30

+ −

30 Days Return Delivery Options

Safety control relay with 24VDC coil and 8 pole configuration, featuring 6 normally open and 2 normally closed contacts—ideal for industrial automation and control systems. Built for enhanced reliability with bifurcated contact design.

Description
Attachments

Product Name/Title: Allen-Bradley 700S-CF Safety Control Relay 24VDC Coil 8Pole 6NO 2NC Contact Aux Bifuracated Contact

Brand: NHP

SKU: 700SCFB620EJC

Alternatively Known As: Safety Relay, Control Relay, Automation Relay

Technical Specifications

Rated operation current (Ie) at 400V: 20 A
Rated operation current (2) at 400V: 10 A
Max rated operation voltage (Ue) AC: 690 V
Voltage type for actuating: DC
Control supply voltage (Us) at DC: 24 V
Power consumption DC coil pickup: 10 W
Power consumption DC coil hold-in: 1.7 W
Mounting method: DIN-rail/screw
Connection type auxiliary circuit: Screw connection
Dimensions (H x L x W): 81mm x 120mm x 45mm
Weight: 0.46 kg

Key Features

8 Pole configuration with 6 Normally Open and 2 Normally Closed contacts.
Bifurcated contact design for enhanced reliability.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Automation and control systems
Commercial: Safety and control applications

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Designed for energy efficiency, reducing power consumption in control systems.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 700S-CF Safety Control Relay is available now for immediate purchase. Ideal for industrial and commercial safety control applications.

Non-Returnable & Non-Cancellable

700SCFB620EJC-AU-Safety-Control-Relay-Datasheet.pdf (700SCFB620EJC-AU-Safety-Control-Relay-Datasheet.pdf, 282 Kb) [Download]
