Safety Control Relay 8A 2 CO DPDT | 24V DC Coil | Gold Contacts by NHP
Safety control relay with 8A nominal current and 24V DC coil—ideal for industrial automation and safety applications. Built for enhanced safety with gold contacts and forced guided contacts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

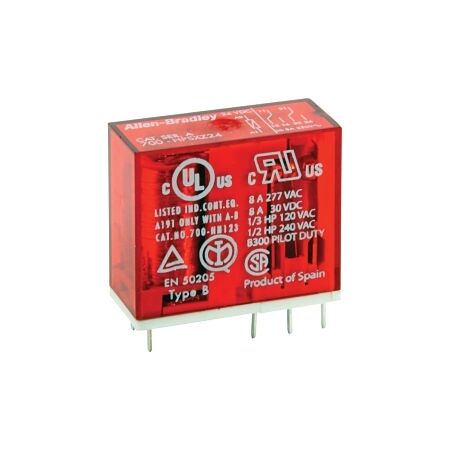

Product Name/Title: Allen-Bradley 700-HP PCB Pin Style Safety Control Relay 8A 2 CO DPDT 2Pole 24V DC Coil Gold Contacts
Brand: NHP
SKU: 700HPSXZ24
Alternatively Known As: Safety Control Relay, PCB Safety Relay, 700-HP Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC-1: 2000 VA
- Breaking Capacity at DC-1 30 V: 8 A
- Breaking Capacity at DC-1 110 V: 0.65 A
- Control Supply Voltage: 24 V DC
- Type of Electric Connection: Plug-in connection
- Material of Contact: Silver nickel with gold surface
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 25mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 8A nominal current with 2 changeover contacts.
- Forced guided contacts for enhanced safety.
- Gold contact surface for improved conductivity.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Automation systems, safety applications
- Commercial: Control panels, machinery safety
Standards & Compliance
- Complies with relevant safety standards for electrical devices.
Environmental Benefits
- Designed for long-lasting performance, reducing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HP PCB Pin Style Safety Control Relay is available now for immediate purchase. Ideal for industrial automation and safety applications.
