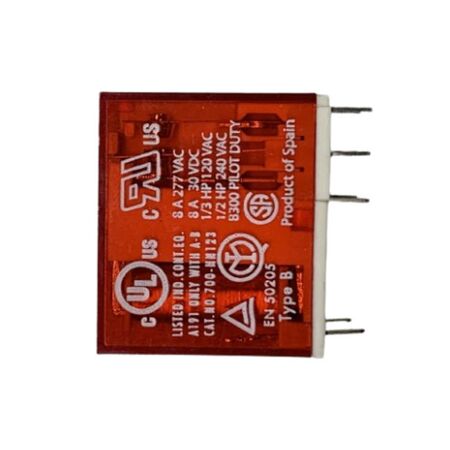

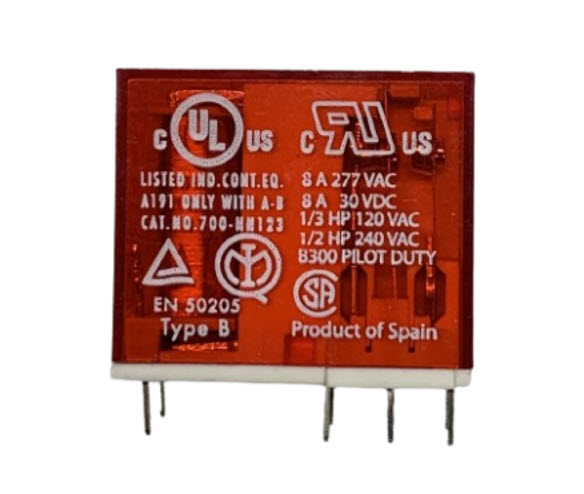

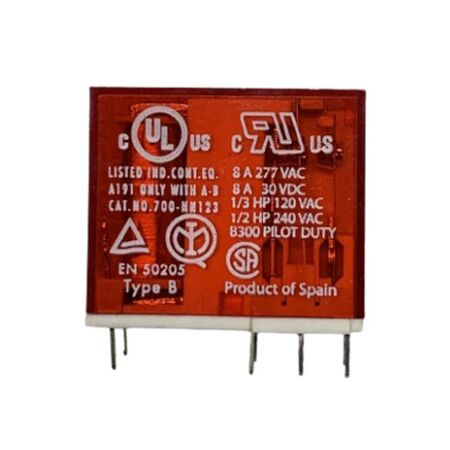

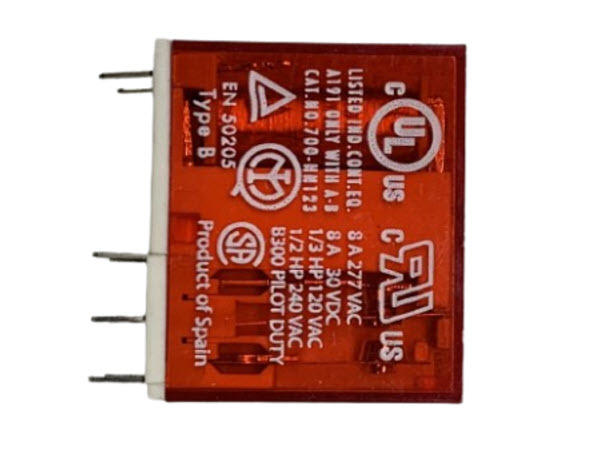

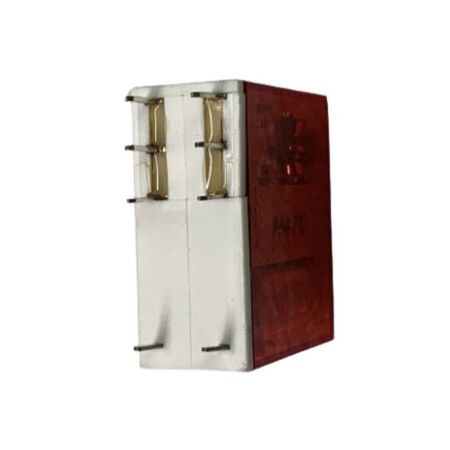

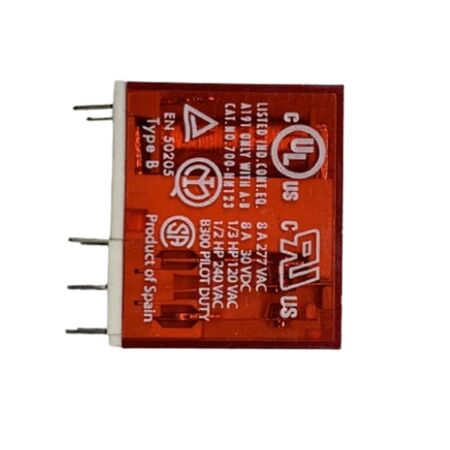

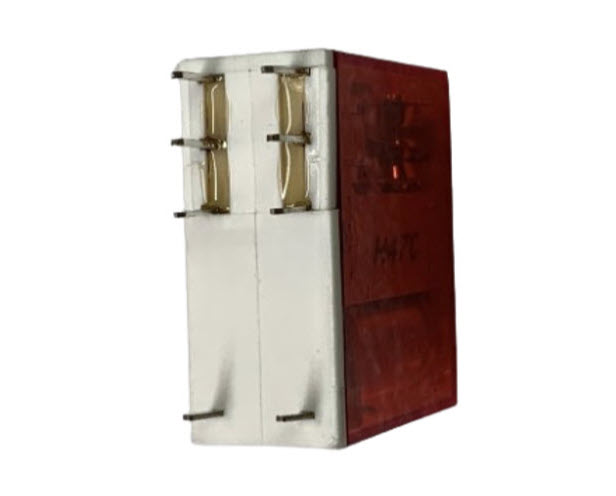

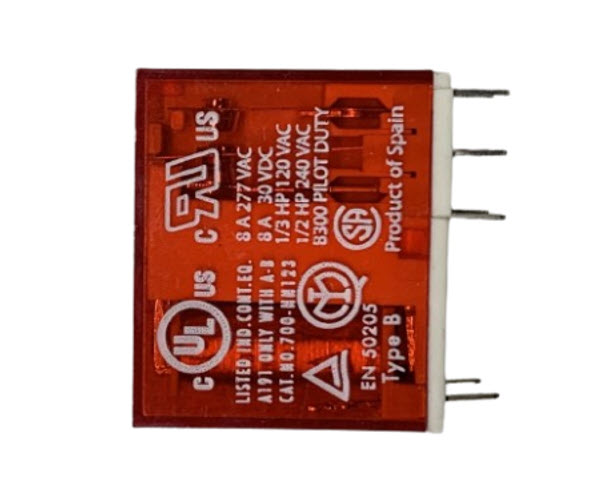

Safety Control Relay DPDT 8A 110V DC | Plug-in Terminals | Mechanically Linked Contacts | by Allen-Bradley
The Safety Control Relay DPDT 8A 110V DC is designed for reliable operation in industrial automation control systems. With a robust 8 Amp contact rating and plug-in pin-style terminals, it ensures easy installation and dependable performance. Ideal for safety control circuits and machinery requiring safety relays, this relay features mechanically linked contacts for enhanced reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Configuration: DPDT
- Contact Rating: 8 A
- Terminal Type: Plug-in pin-style terminals
- Pin Spacing: 5 mm
- Coil Voltage: 110 V DC
- Contact Operation: Mechanically linked contacts
- Relay Style: Open style, mountable
- Dimensions (H x L x W): 60mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- DPDT (Double Pole Double Throw) relay configuration
- 8 Amp contact rating suitable for moderate load switching
- Plug-in pin-style terminals with 5 mm pinning for easy installation
- Mechanically linked contacts for reliable operation
- Open style mountable design for flexible mounting options
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and safety compliance.
Applications
- Industrial automation control systems
- Safety control circuits
- Machinery and equipment requiring safety relays
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy efficient operation reduces power consumption in control circuits
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HPS2Z1 Safety Control Relay is available now for immediate purchase. Ideal for industrial safety control and automation applications.
