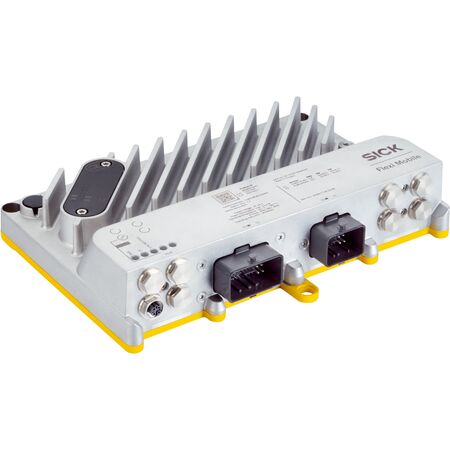

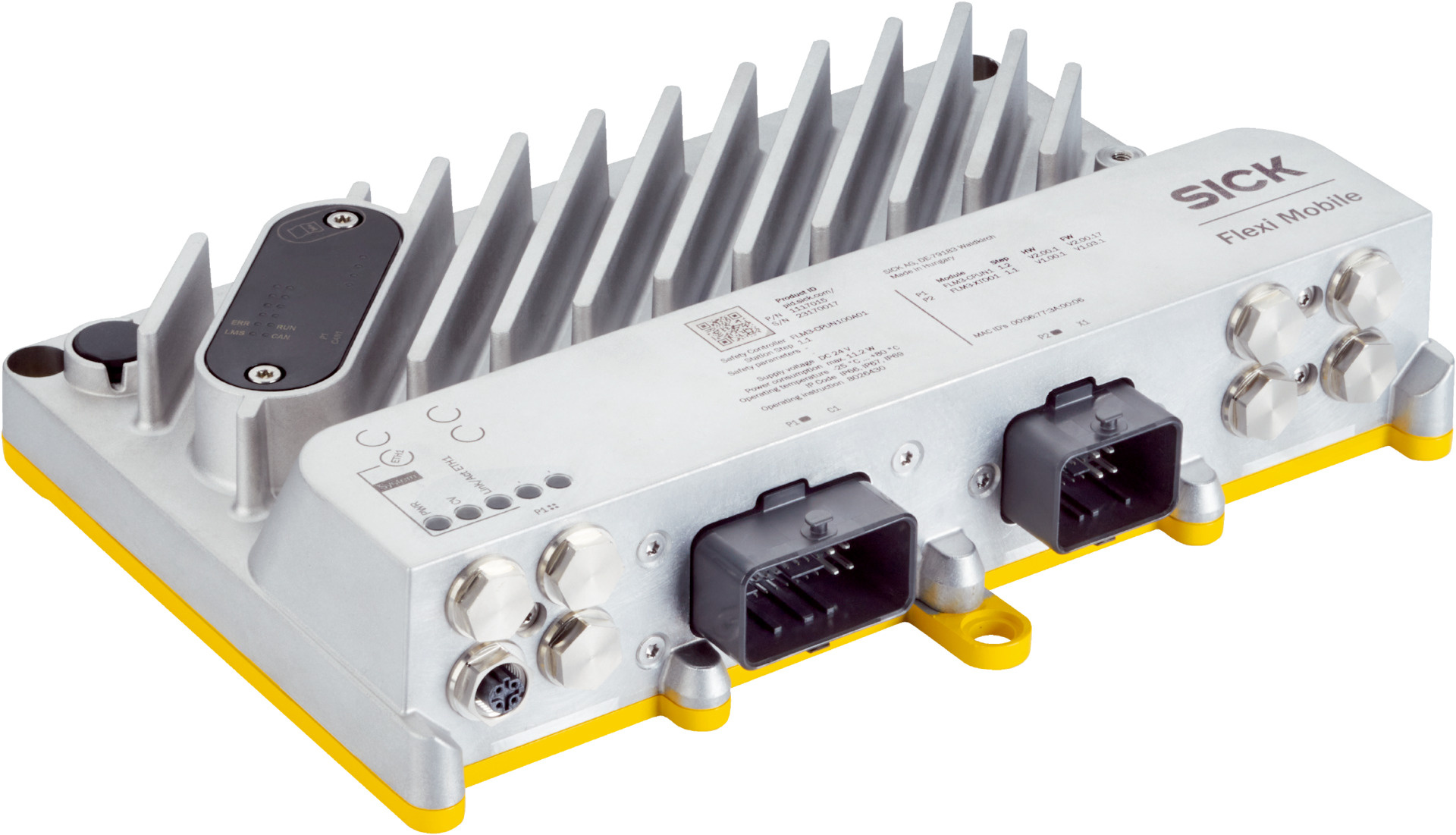

Safety Controller FLM3-CPUN100A01 | SIL 3 & Category 4 | IP65 to IP69K Enclosure | by SICK
The Safety Controller FLM3-CPUN100A01 is designed for industrial safety control systems, featuring 28 safety inputs and 12 safety outputs. With a robust IP65 to IP69K enclosure rating, it ensures reliable operation in harsh environments. Ideal for machine safety monitoring and automation applications, this controller supports Ethernet Modbus TCP communication and offers programmable logic for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety inputs: 28
- Safety outputs: 12
- Test outputs: 8
- Supply voltage: 24 V DC (16 V to 32 V)
- Protection class: III (IEC 61140)
- Communication: Ethernet Modbus TCP SLMP, USB via SmartPlug
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -40 °C to +85 °C
- Shock resistance: 100 g (single shock), 30 g (continuous shock)
- Vibration resistance: 5 g, 5 Hz to 200 Hz
- Enclosure rating: IP65, IP66, IP67, IP69K
- Dimensions (H x L x W): 57.6mm x 194mm x 266mm
- Weight: 1.95 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) and Performance level PL e (ISO 13849-1)
- Monitoring and switching of connected safety devices
- Detection of non-safety A/B incremental encoders
- Programmable logic with graphical function blocks
- Ethernet Modbus TCP SLMP communication interface
- USB connection via SmartPlug for configuration and diagnostics
- IP65 to IP69K enclosure rating for harsh environments
- Shock resistance up to 100 g and vibration resistance
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel trained in safety control systems to ensure compliance with safety standards and optimal operation.
Applications
- Industrial safety control systems
- Machine safety monitoring and control
- Automation safety applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- High reliability reduces downtime and waste from equipment failure
- Robust design minimizes need for frequent replacements
- Supports safe operation reducing risk of environmental accidents
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK FLM3-CPUN100A01 Safety Controller is available for immediate purchase, ideal for industrial safety and automation applications.
