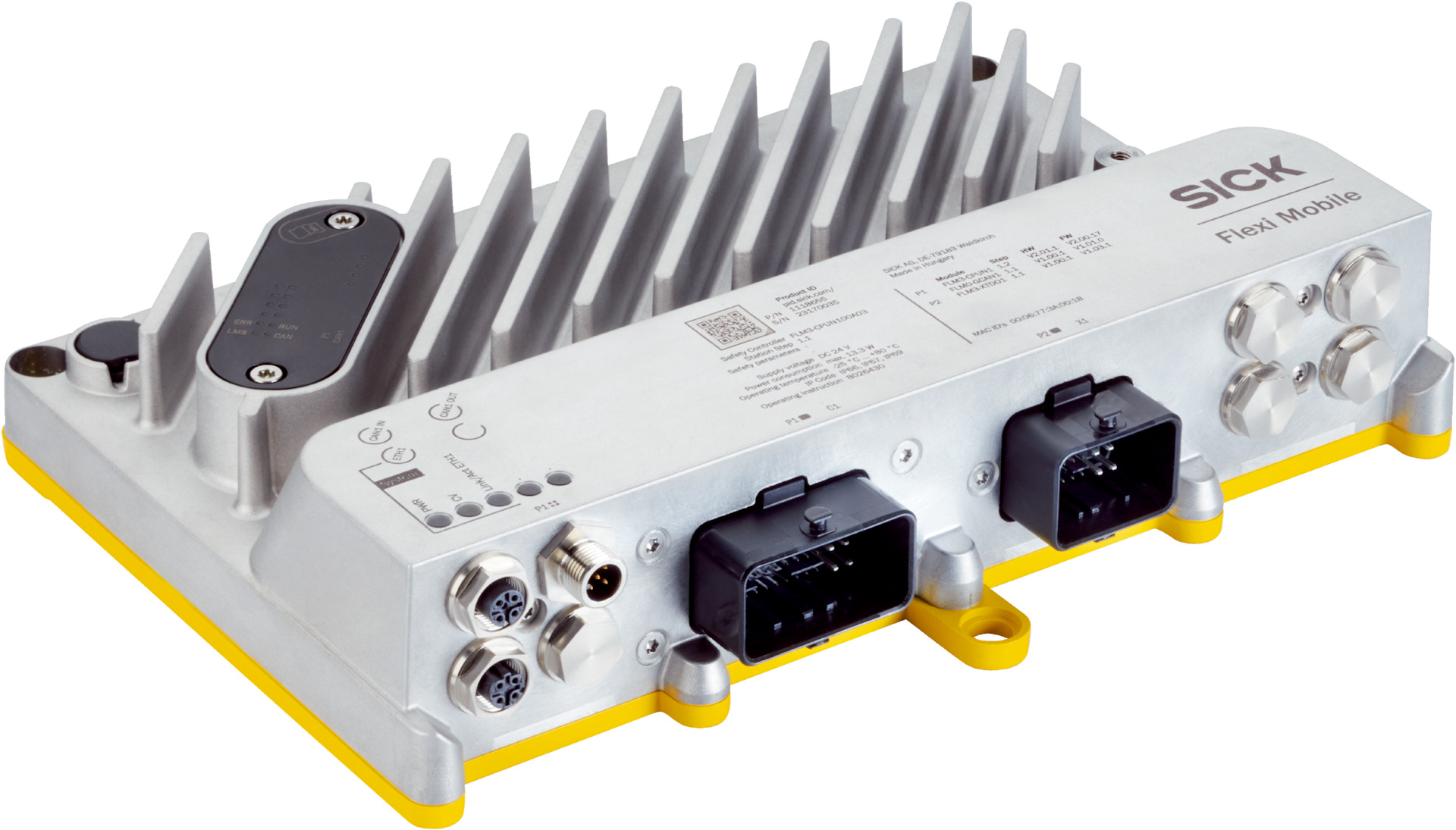

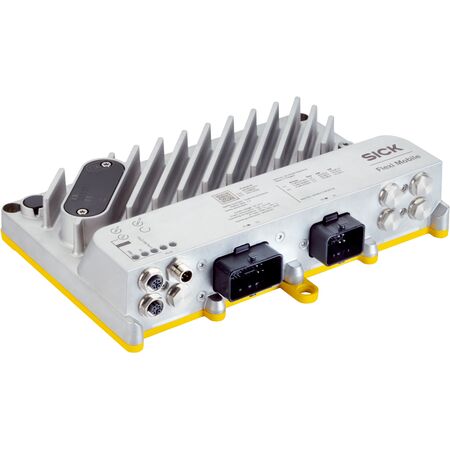

Safety Controller FLM3-CPUN100A03 | SIL 3 & PL e Certified | IP65 to IP69K Enclosure | by SICK
The FLM3-CPUN100A03 Safety Controller is designed for industrial safety control systems, featuring SIL 3 and PL e certification for high safety integrity. With 28 safety inputs and 12 outputs, it supports multiple communication protocols including Ethernet Modbus TCP and CANopen, making it ideal for automation systems. Its robust IP65 to IP69K enclosure ensures durability in harsh environments, enhancing operational safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC (16 V to 32 V)
- Safety inputs: 28
- Safety outputs: 12
- Test outputs: 8
- Connection types: USB, Molex CMC plugs, Ethernet M12 socket, CAN M12 plugs
- Communication protocols: Ethernet Modbus TCP, SLMP, CAN, CANopen
- Protection class: III (IEC 61140)
- Overvoltage category: II (EN 61131-2)
- Switch-on time: ≤ 15 seconds
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -40 °C to +85 °C
- Shock resistance: 100 g (single shock), 30 g (continuous shock)
- Vibration resistance: 5 g (5 Hz to 200 Hz)
- Contamination rating: 4 (IEC 61010-1)
- Enclosure rating: IP65, IP66, IP67, IP69K
- Dimensions (H x L x W): 57.6mm x 194mm x 266mm
- Weight: 1.95 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) and Performance level PL e
- Monitoring and switching of connected safety devices
- Programmable logic with graphical function blocks
- Drive safety functions including Safe stop, Safe speed monitoring, Safe brake control
- Multiple communication interfaces including Ethernet Modbus TCP, CANopen
- IP65 to IP69K enclosure rating for harsh environments
- Shock and vibration resistant with high contamination rating
- Includes Safety Designer software and interchangeable SmartPlug storage
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety standards and electrical systems.
Applications
- Industrial safety control systems
- Mobile robot kinematics and drive safety monitoring
- Safety device monitoring and control in manufacturing
- Automation systems requiring SIL 3 and PL e safety levels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances operational safety reducing risk of accidents and environmental hazards
- Supports energy-efficient automation through precise safety and drive control
- Durable IP65-IP69K rated enclosure reduces need for frequent replacements
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The SICK FLM3-CPUN100A03 Safety Controller is available for immediate purchase, ideal for industrial automation and safety-critical applications.
