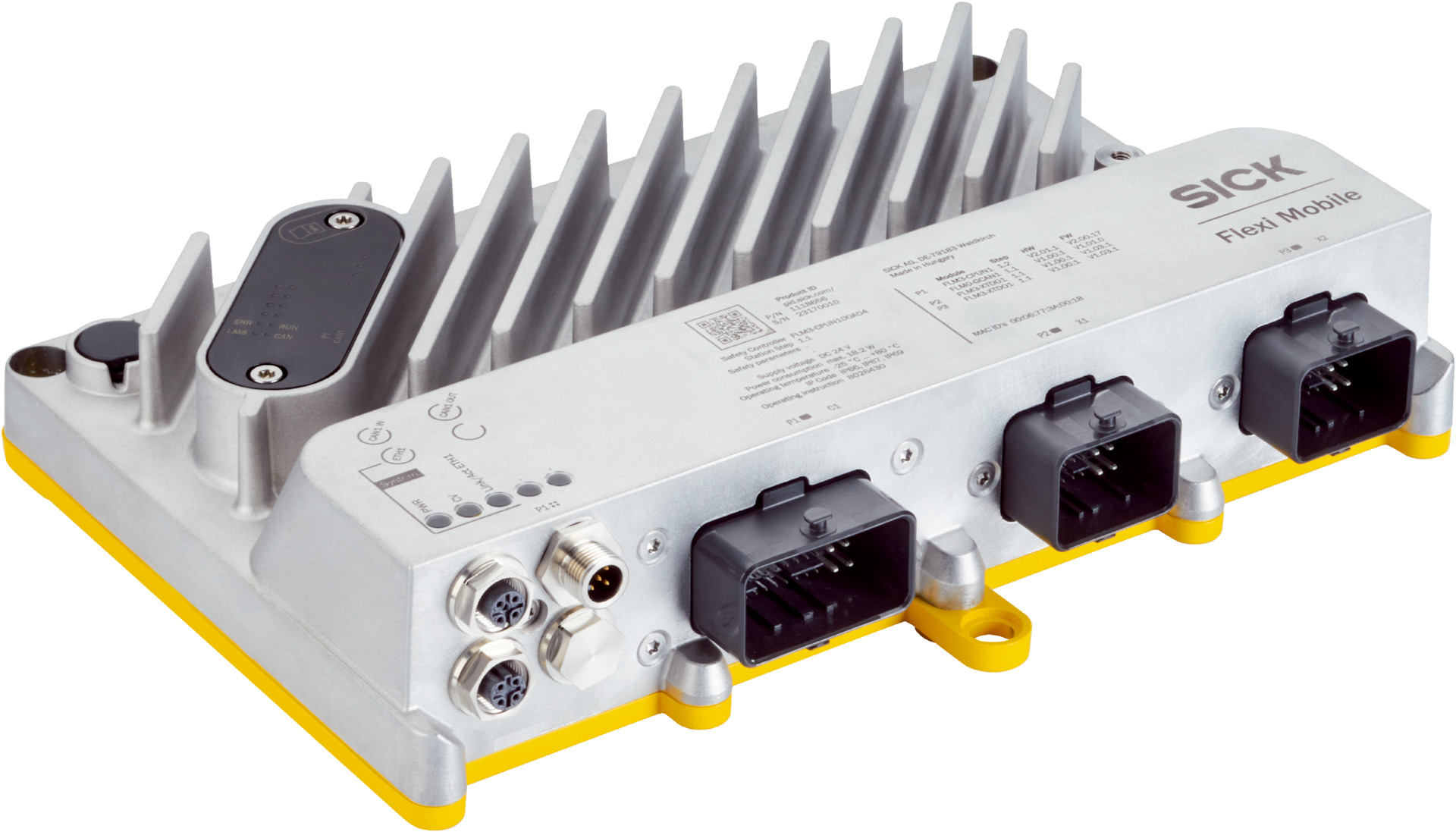

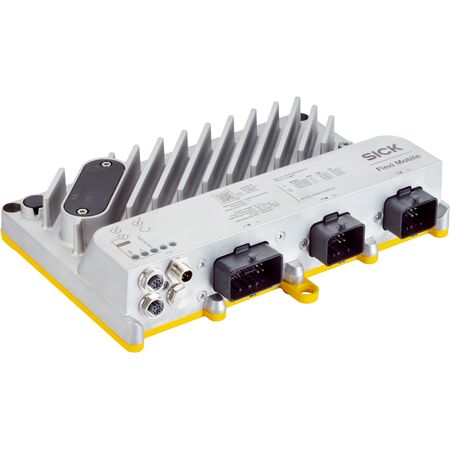

Safety Controller FLM3-CPUN100A04 | SIL 3 & Category 4 Compliance | IP65 to IP69K Enclosure | by SICK
The Safety Controller FLM3-CPUN100A04 is designed for industrial safety control systems, featuring SIL 3 safety integrity and Category 4 compliance. With robust IP65 to IP69K enclosure ratings, it operates effectively in harsh environments, ensuring reliable monitoring and control of safety devices. Ideal for mobile robots and automated systems, this controller enhances safety and efficiency in critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Safety inputs: 36
- Safety outputs: 20
- Test outputs: 8
- Supply voltage: 24 V DC (16 V to 32 V)
- Protection class: III (IEC 61140)
- Communication interfaces: Ethernet Modbus TCP, CAN, CANopen
- Connection types: USB SmartPlug, Molex CMC plugs, M12 sockets and plugs
- Operating temperature: -25°C to +60°C
- Enclosure rating: IP65, IP66, IP67, IP69K
- Shock resistance: 100 g (single shock), 30 g (continuous shock)
- Mounting: 3 through-holes for M6 screws
- Dimensions (H x L x W): 57.6mm x 194mm x 266mm
- Weight: 1.95 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508) and Category 4 (ISO 13849-1) compliance
- Monitoring and switching of connected safety devices with short-circuit detection
- Programmable logic with graphical function blocks including drive monitoring
- Supports safe stop, safe speed monitoring, safe brake control, and other drive safety functions
- Multiple communication interfaces including Ethernet Modbus TCP, CAN, and CANopen
- Robust IP65 to IP69K enclosure rating for harsh environments
- Wide ambient operating temperature range from -25°C to +60°C
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation and configuration should be performed by qualified safety system professionals or certified electricians to ensure compliance with safety standards and optimal system performance.
Applications
- Industrial safety control systems
- Mobile robot safety monitoring
- Machine safety device monitoring and control
- Drive safety functions in automated systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances machine safety reducing risk of accidents and associated environmental hazards
- Supports energy-efficient operation through precise safety and drive monitoring
- Durable design reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK FLM3-CPUN100A04 Safety Controller is available for immediate purchase, ideal for industrial automation and safety-critical applications.
