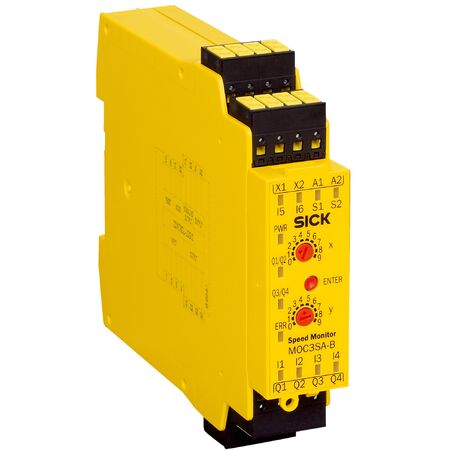

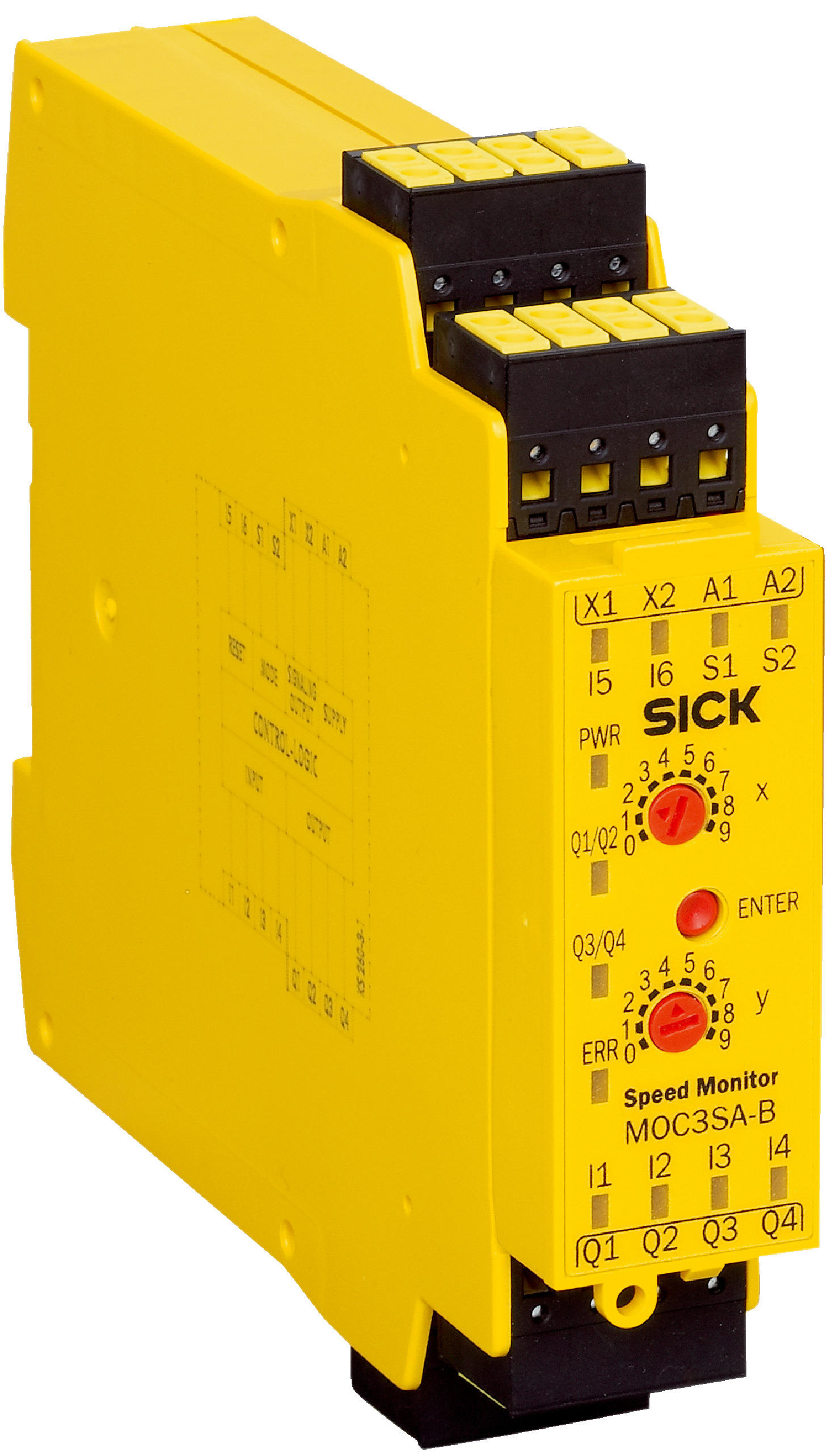

Safety Controller SIL3 MOC3SA-BAB44D31 | Category 4 | Safe Speed Monitoring | Low Power Consumption | by SICK
The Safety Controller SIL3 MOC3SA-BAB44D31 is designed for industrial safety control systems, featuring a SIL 3 safety integrity level and Category 4 compliance. Ideal for machine safety applications, it offers reliable drive safety functions like standstill and safe speed monitoring, ensuring high safety integrity and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 5.0 x 10^-9
- Mission time: 20 years
- Stop category: 0 (EN 60204)
- Drive safety functions: Standstill Safely-limited speed (SLS), Safe speed monitoring (SSM)
- Connection type: Spring terminals
- Encoder interface: Proxy A/B incremental encoder, HTL 12 V or 24 V
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V ... 30 V)
- Residual ripple: ≤ 10%
- Power consumption: ≤ 3 W
- Input voltage HIGH: 13 V ... 30 V, LOW: –5 V ... 5 V
- Input current HIGH: 2.4 mA ... 3.8 mA, LOW: –2.5 mA ... 2.1 mA
- Switch-on time: ≥ 70 ms
- Switch-off time: 70 ms
- Limit frequency: 2 kHz
- Frequency change: 21 kHz/s
- Output voltage: 18.4 V DC ... 30 V DC
- Output current: ≤ 120 mA (X1, X2), 2 A (Q1-Q4), Total current 4 A
- Enclosure rating: Terminals IP20, Housing IP40
- Operating temperature: –25 °C ... +55 °C
- Storage temperature: –25 °C ... +70 °C
- Air humidity: ≤ 95%, Non-condensing
- EMC: Class A (EN 61000-6-2, EN 55011)
- Vibration resistance: 10 Hz ... 55 Hz
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 106.5mm x 121mm x 22.5mm
- Weight: 0.18 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e
- Standstill Safely-limited speed (SLS) and Safe speed monitoring (SSM)
- Spring terminal connections
- Proxy A/B incremental encoder interface, HTL 12 V or 24 V
- Protection class III (EN 61140)
- Supply voltage 24 V DC (19.2 V ... 30 V)
- Low power consumption (≤ 3 W)
- High electromagnetic compatibility Class A (EN 61000-6-2, EN 55011)
- Shock resistance 30 g, 11 ms (EN 60068-2-27)
- Operating temperature range –25 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by a qualified professional familiar with safety control systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety control systems
- Drive safety functions including standstill and safe speed monitoring
- Machine safety applications requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product lifecycle, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MOC3SA-BAB44D31 Safety Controller is available for immediate purchase, ideal for industrial safety and drive safety applications requiring high integrity and reliability.
