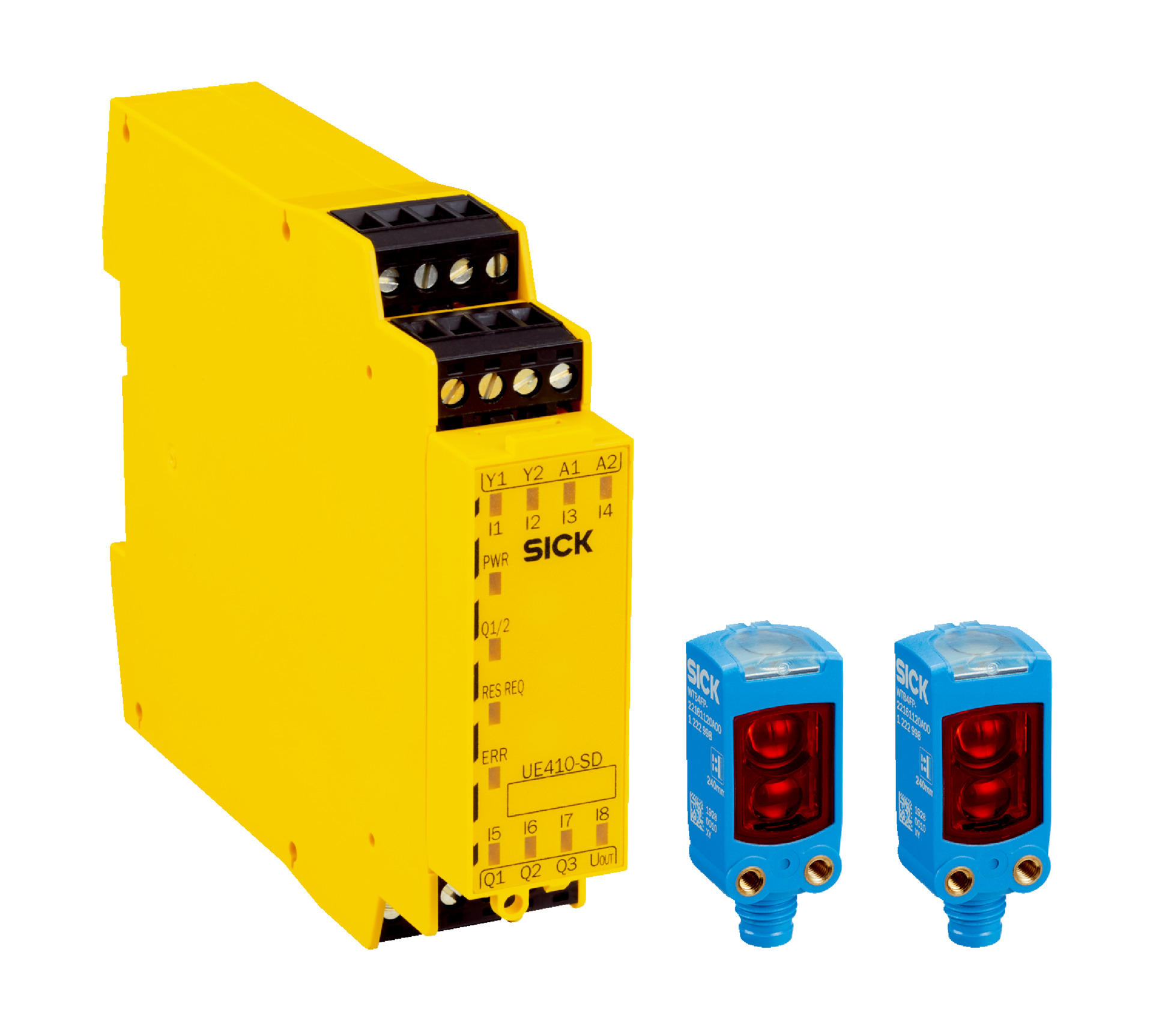

Safety Controller System | Box Variant | Category 3 Safety Level | IP20 & IP67 Rated | by SICK
The Safety Controller System is designed for industrial safety monitoring, featuring a box variant safeguard detector with a detection zone of 30 mm to 150 mm. Built for machine safeguarding in manufacturing environments, it offers a Category 3 safety level and a robust design that ensures high reliability and low power consumption, making it ideal for automation safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety task: Natural protection due to the material
- Product scope: System
- Safeguard Detector variant: Box variant
- Detection zone: 30 mm to 150 mm
- Safety-related parameters: Category 3 (EN ISO 13849-1), Performance level PL d, Performance class SRS/SRSS D
- PFHD: 1.0 * 10^-7
- Diagnostic coverage: 80%
- MTTFD: 250 years
- UE410-SD safety controller: Supports 1 or 2 MultiPulse sensor pairs, Hard wired configuration, Screw-type terminals, Pulse rate 10 Hz, Supply voltage 24 V DC (19.2 V to 30 V), Protection class III, Enclosure rating IP20, Operating temperature -25 °C to 55 °C, Response time ≤ 160 ms
- MultiPulse photoelectric proximity sensor: 2 pieces, Detection zone 30 mm to 150 mm, Remission 6% to 90%, Pulse frequency 10 Hz, Response time ≤ 100 ms, Visible red light 650 nm wavelength, Light spot size Ø 7 mm at 50 mm, Connector M8 3-pin, Voltage supply via safety controller, Enclosure rating IP67, Operating temperature -40 °C to 60 °C
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Natural protection due to the material
- Box variant safeguard detector
- Detection zone from 30 mm to 150 mm
- Category 3 safety level (EN ISO 13849-1)
- Performance level PL d (EN ISO 13849-1)
- Performance class SRS/SRSS D (IEC TS 62998-1)
- Mean probability of dangerous failure per hour (PFHD) 1.0 * 10^-7
- Diagnostic coverage (DCavg) 80%
- Mean time to dangerous failure (MTTFD) 250 years
- UE410-SD safety controller supports 1 or 2 MultiPulse sensor pairs
- Hard wired configuration with screw-type terminals
- Pulse rate of sensors 10 Hz
- Supply voltage 24 V DC (19.2 V to 30 V)
- Protection class III (EN 50178)
- Enclosure rating IP20 for controller, IP67 for sensors
- Operating temperature range -25 °C to 55 °C (controller), -40 °C to 60 °C (sensors)
- Response time ≤ 160 ms for overall safety system
- Visible red light sensors with 650 nm wavelength
- Connector M8, 3-pin for sensor connection
Professional Installation Requirements
- Installation and configuration should be performed by qualified safety system professionals or certified electricians to ensure compliance with safety standards.
Applications
- Industrial safety monitoring and protection
- Machine safeguarding in manufacturing environments
- Automation safety systems requiring reliable detection zones
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- High reliability minimizes risk of system failures and downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

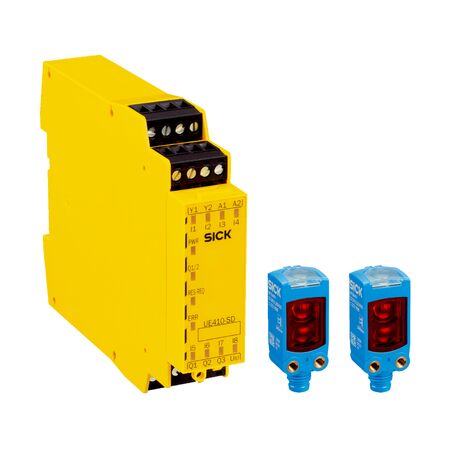

The SICK SYS/SGD-W4150010002BX3 safety system is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
