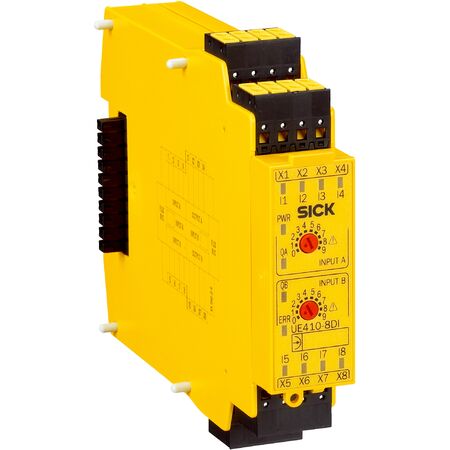

Safety Controller UE410-8DI4 | 8 Safety Inputs & Outputs | SIL 3 Certified | by SICK
The UE410-8DI4 Safety Controller is designed for industrial safety control systems, featuring 8 safety inputs and 8 test outputs. Configurable via a rotary switch, it supports AND, OR operations, and includes LED display elements for status indication. With a high safety integrity level of SIL 3 and low power consumption, this module is perfect for machine safety monitoring and automation safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Controller UE410-8DI4 | 8 Safety Inputs & Outputs | SIL 3 Certified | by SICK
Brand: SICK
SKU: 6032675
Alternatively Known As: Safety I/O Module, Safety Controller Module, Industrial Safety Controller, UE410-8DI4 Module
Technical Specifications
- Module type: I/O module
- Configuration method: Rotary switch
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 3.8 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Inputs: 8 safety inputs
- Outputs: 8 test outputs
- Connection type: Plug-in spring terminals
- Display elements: LEDs
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS
- Power consumption: ≤ 3 W (DC)
- Enclosure rating: Housing IP40, Terminals IP20 (EN 60529)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- EMC: Class A (EN 61000-6-2, EN 55011)
- Vibration resistance: 5 g RMS, 5 Hz to 500 Hz (EN 60068-2-64)
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.15 kg
Key Features
- 8 safety inputs and 8 test outputs
- Configurable via rotary switch
- Supports AND, OR operations and bypass function
- LED display elements for status indication
- Protection class III (EN 61140)
- Low power consumption ≤ 3 W (DC)
- High safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance Level PL e (EN ISO 13849)
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial safety systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety control systems
- Machine safety monitoring
- Automation safety applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UE410-8DI4 Safety Controller I/O Module is available for immediate purchase, ideal for industrial safety and automation applications.
