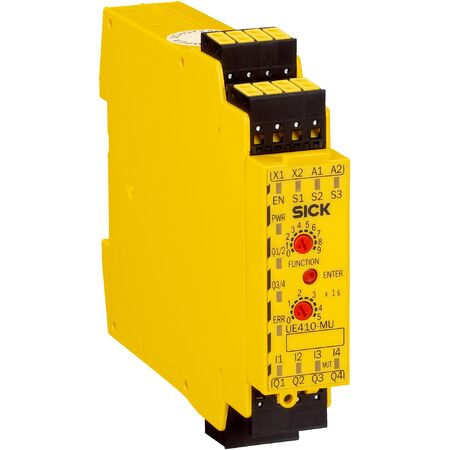

Safety Controller UE410-MU3T300 | SIL 3 & Category 4 | 20-Year Mission Time | by SICK
The Safety Controller UE410-MU3T300 is designed for industrial safety control systems, featuring a SIL 3 safety integrity level and Category 4 compliance. With a robust design and a mission time of 20 years, it ensures reliable machine safety monitoring and automation applications, making it ideal for professionals seeking dependable performance in safety-critical environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Controller UE410-MU3T300 | SIL 3 & Category 4 | 20-Year Mission Time | by SICK
Brand: SICK
SKU: 6026138
Alternatively Known As: Safety controller module, Industrial safety controller, UE410 safety module
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 2.5 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Supply voltage: 24 V DC (19.2 V DC to 30 V DC)
- Power consumption: ≤ 3 W (DC)
- Switch-on time: ≤ 60 s
- Protection class: III (EN 61140)
- Enclosure rating: Housing IP40, Terminals IP20 (EN 60529)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: ≤ 95%, non-condensing
- Electromagnetic compatibility: Class A (EN 61000-6-2, EN 55011)
- Vibration resistance: 5 g RMS, 5 Hz to 500 Hz (EN 60068-2-64)
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.18 kg
Key Features
- Main module with configuration via rotary switch
- Supports manual and automatic restart interlock
- External device monitoring (EDM) enabled
- AND, OR operation and bypass functions
- Differentiation between man and material (muting)
- 4 safety inputs and 4 switching inputs
- 4 safety outputs and 2 test outputs
- Delay time on outputs configurable from 0 to 300 seconds
- Plug-in screw-type terminal connections
- LED display elements for status indication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety control systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety control systems
- Machine safety monitoring
- Automation safety applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 3 W reduces energy usage
- Long mission time of 20 years supports sustainable operation
- Robust design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK UE410-MU3T300 Safety Controller is available for immediate purchase, ideal for industrial safety and automation applications.
