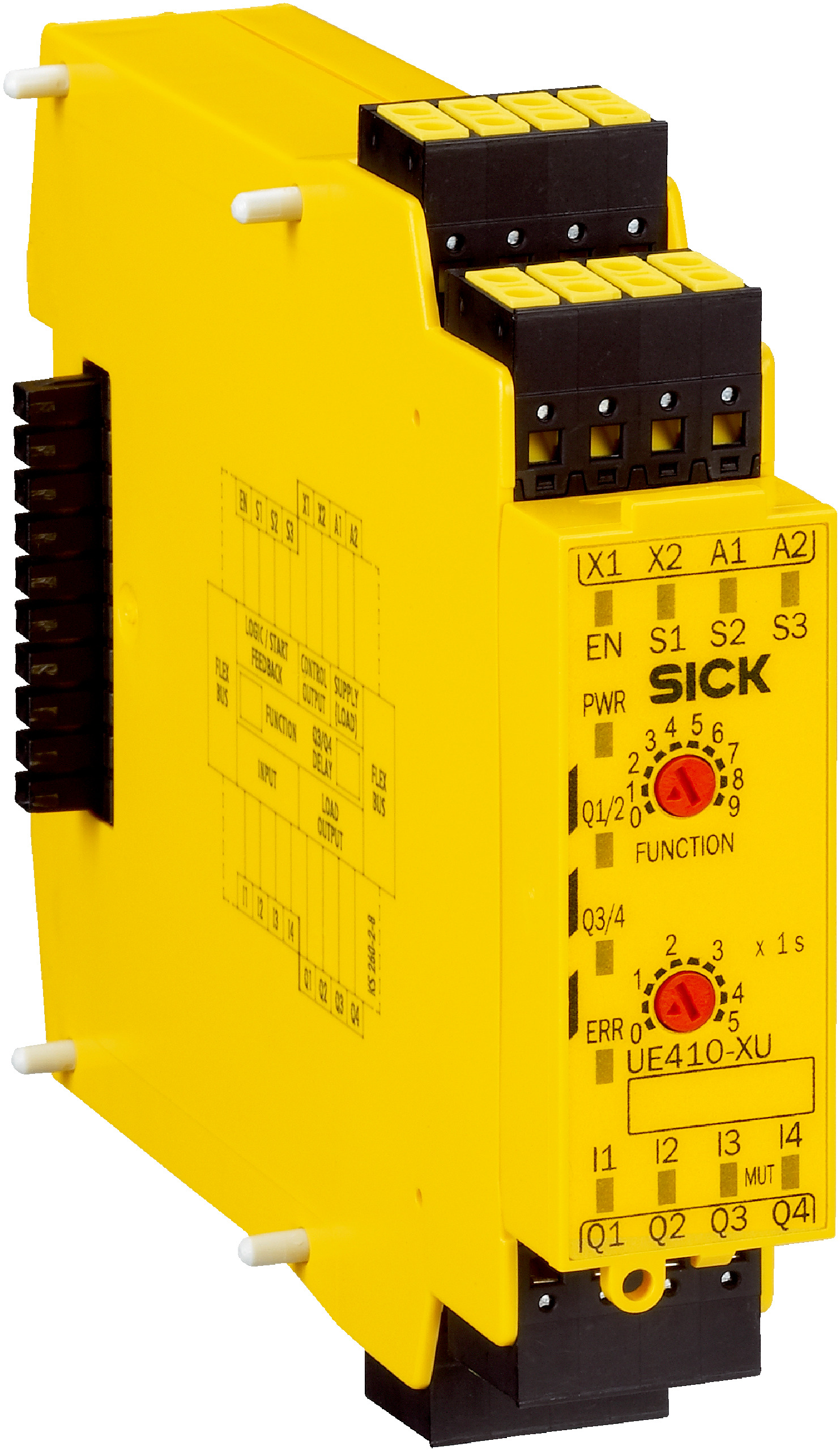

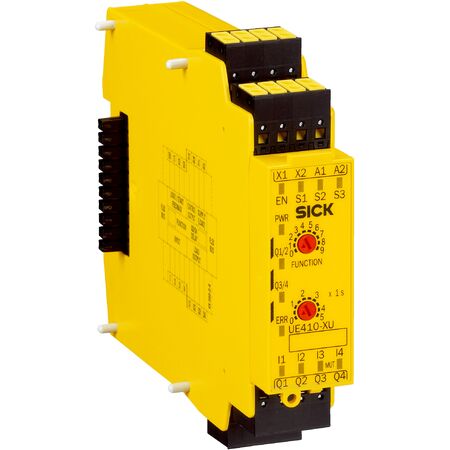

Safety Controller UE410-XU3T0 | SIL 3 & Category 4 | 4 Safety Inputs | by SICK
The Safety Controller UE410-XU3T0 is designed for industrial safety control systems, featuring SIL 3 safety integrity and Category 4 compliance. With 4 safety inputs and 4 outputs, it ensures reliable machine safety monitoring and automation applications, making it ideal for factories and automation setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Controller UE410-XU3T0 | SIL 3 & Category 4 | 4 Safety Inputs | by SICK
Brand: SICK
SKU: 6035244
Alternatively Known As: Safety controller module, Industrial safety I/O module, Machine safety controller, Safety relay module
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 2.5 x 10^-9
- Mission time: 20 years
- Inputs: 4 safety inputs, 4 switching inputs
- Outputs: 4 safety outputs, 2 test outputs
- Connection type: Plug-in screw-type terminals
- Voltage supply: 24 V DC (19.2 V DC to 30 V DC), PELV or SELV
- Power consumption: ≤ 3 W (DC)
- Protection class: III (EN 61140)
- Enclosure rating: IP40 housing, IP20 terminals
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- EMC: Class A (EN 61000-6-2, EN 55011)
- Vibration resistance: 5 g RMS, 5 Hz to 500 Hz
- Dimensions (H x L x W): 96.5mm x 120.8mm x 22.5mm
- Weight: 0.18 kg
Key Features
- I/O module with configurable rotary switch
- Supports manual and automatic restart interlock
- External device monitoring (EDM) enabled
- AND, OR logic operations and bypass functionality
- Differentiation between man and material (muting)
- 4 safety inputs and 4 switching inputs
- 4 safety outputs and 2 test outputs
- Plug-in screw-type terminal connections
- LED display elements for status indication
- Protection class III compliant
- Supply voltage 24 V DC with low power consumption (≤ 3 W)
- Enclosure rated IP40 housing and IP20 terminals
- Wide ambient operating temperature range (-25 °C to +55 °C)
- High vibration resistance and EMC compliance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety control systems and compliant with relevant electrical and safety standards.
Applications
- Industrial safety control systems
- Machine safety monitoring
- Automation safety applications
- Factory automation safety integration
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product lifecycle, minimizing waste
- Compliant with RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UE410-XU3T0 Safety Controller is available for immediate purchase, ideal for industrial safety and automation applications.
