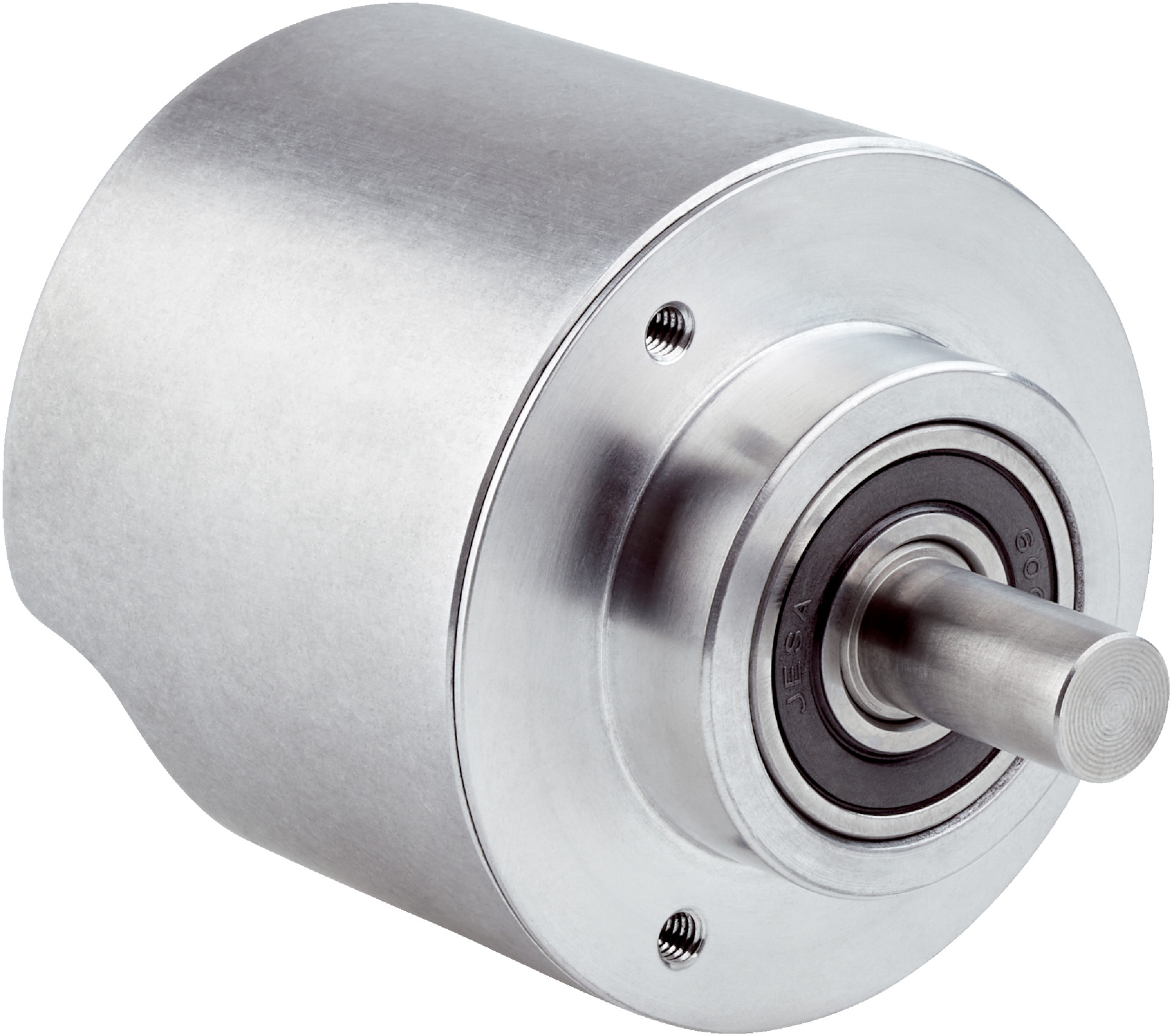

Safety Encoder AFM60A | 262,144 Steps/Rev | EtherNet/IP Communication | IP65/IP67 Rated | by SICK
The Safety Encoder AFM60A is engineered for precision in industrial automation, featuring a high resolution of 262,144 steps per revolution and EtherNet/IP communication for seamless integration. With an impressive MTTFD of 80 years and robust IP65/IP67 protection, it's perfect for safety-critical applications in robotics and factory automation, ensuring reliability and efficiency in every operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit), 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherNet/IP™ with 10/100 Mbit/s
- Connection type: Male and female M12, 4-pin axial connectors
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm, length: 19 mm, stainless steel
- Housing and flange material: Aluminum
- Operating temperature range: –40 °C to +85 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3 x 10^9 revolutions
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Safety-related mean time to dangerous failure (MTTFD) of 80 years
- EtherNet/IP™ communication interface with 10/100 Mbit/s data rate
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 shaft side and IP67 housing side protection
- Reverse polarity protection and low power consumption (≤ 3 W)
- Comprehensive diagnostics and parameterizing data available
- High operating speed up to 9,000 min⁻¹ and long bearing lifetime
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Safety-related machinery control requiring high reliability
- Robotics and motion control systems
- Factory automation and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Low power consumption contributes to energy efficiency
- Robust design minimizes environmental impact from failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

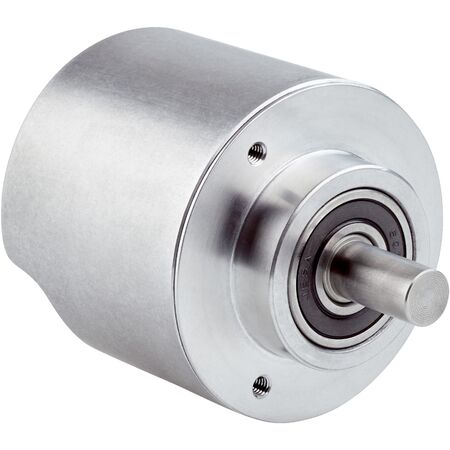

The SICK AFM60A-S5IB018x12 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
