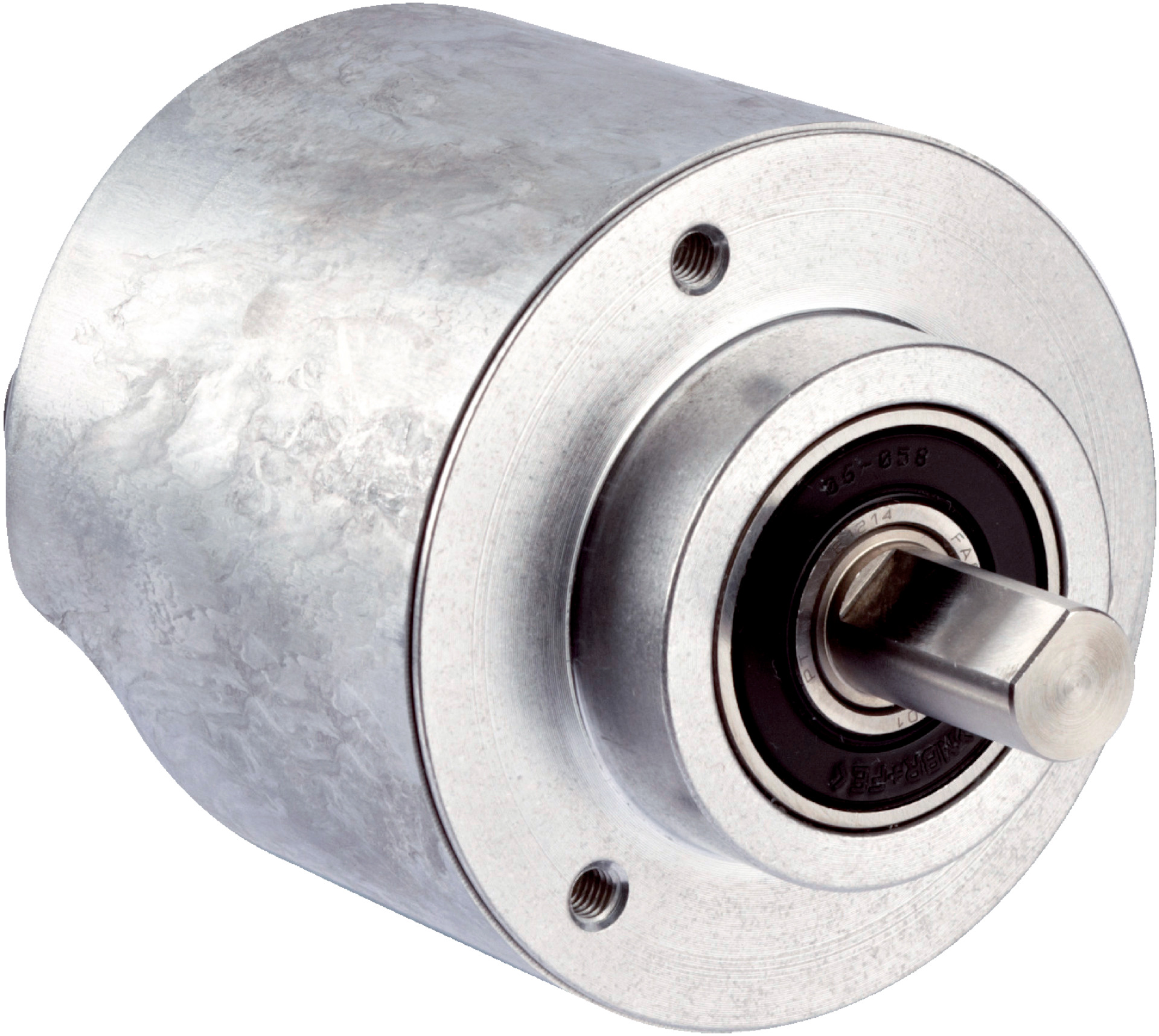

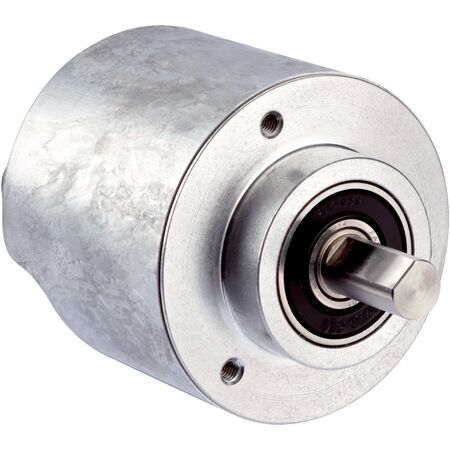

Safety Encoder AFM60A | 262,144 Steps/Rev | EtherNet/IP Communication | IP65/IP67 Protection | by SICK
The Safety Encoder AFM60A is designed for industrial automation, offering high resolution with 262,144 steps per revolution and EtherNet/IP communication for seamless integration. With a robust aluminum housing and stainless steel shaft, it ensures reliability in safety-critical applications, making it ideal for robotics and motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit), 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication: EtherNet/IP™, 10/100 Mbit/s, CAT-5e cable
- Initialization time: Approx. 10 s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Connection: Male and female M12, 4-pin axial connectors
- Mechanical: Solid shaft 10 mm diameter with flat, stainless steel shaft, aluminum housing
- Operating speed: ≤ 9,000 min⁻¹
- Protection rating: IP65 shaft side, IP67 housing side
- Operating temperature: -40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Safety-related mean time to dangerous failure (MTTFD) of 80 years
- EtherNet/IP™ communication interface with 10/100 Mbit/s data rate
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 shaft side and IP67 housing side protection
- Reverse polarity protection and low power consumption (≤ 3 W)
- Comprehensive diagnostics and parameterizing data available
- High operating speed up to 9,000 min⁻¹ and long bearing lifetime
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial automation and safety systems is recommended to ensure compliance and optimal performance.
Applications
- Industrial automation for precise position and speed measurement
- Safety-related machinery control requiring high reliability
- Robotics and motion control systems
- Factory automation and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Low power consumption minimizes energy usage
- Robust design reduces environmental impact from failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60A-S4IB000S02 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
