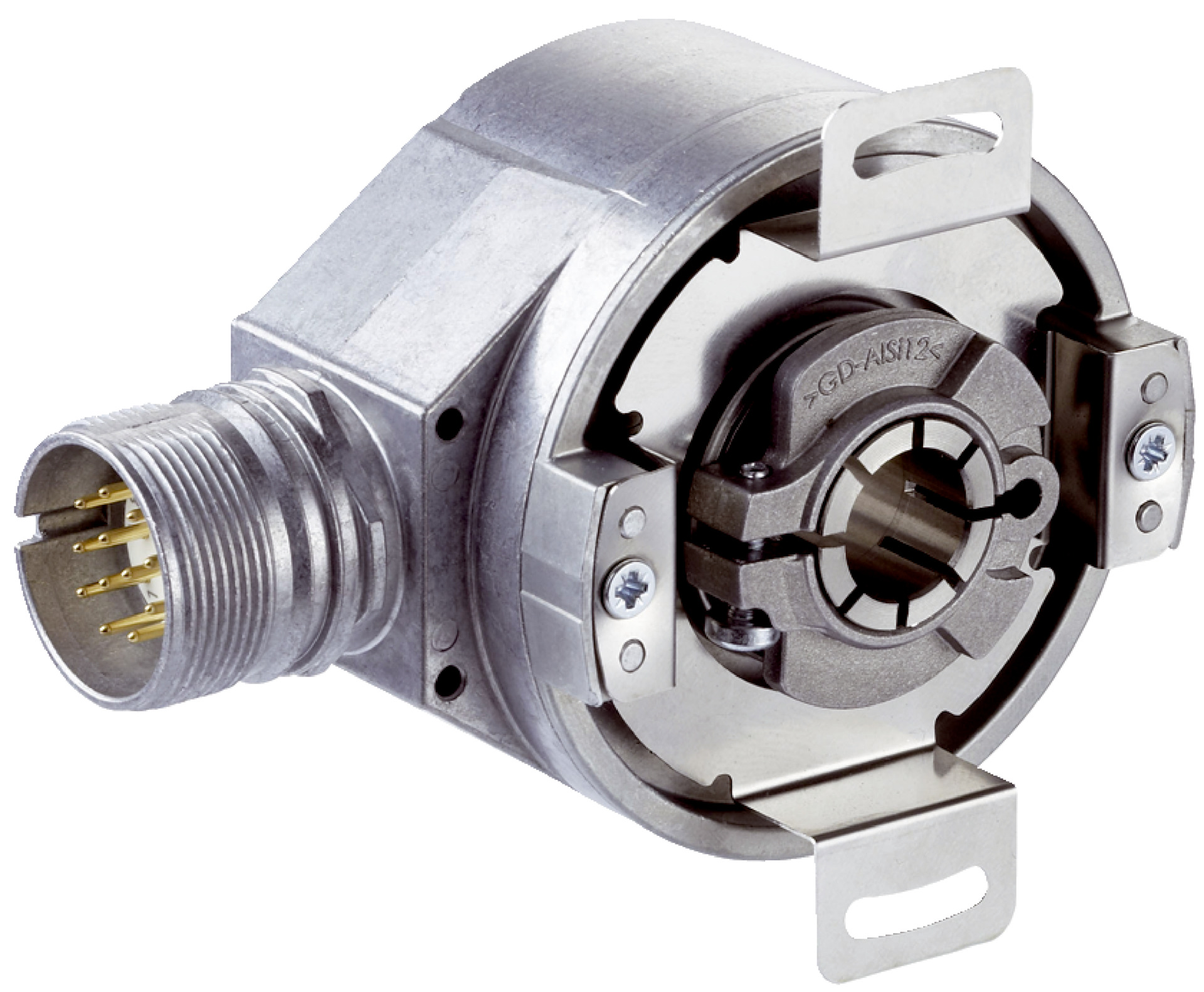

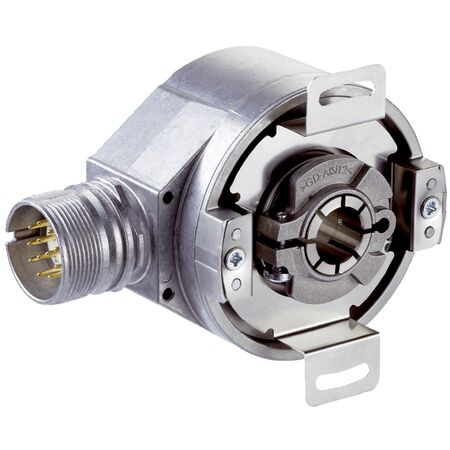

Safety Encoder AFM60A-THAA262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
The Safety Encoder AFM60A-THAA262144 offers high-resolution feedback with 262,144 steps per revolution, making it ideal for industrial automation and safety-critical applications. With a robust design featuring an IP65/IP67 rating, it ensures reliable performance in harsh environments. Built for precision, it boasts a fast position forming time of less than 1 microsecond and a safety-related mean time to dangerous failure (MTTFD) of 250 years, ensuring long-lasting reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFM60A-THAA262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1052469
Alternatively Known As: Safety Encoder AFM60A, High-Resolution Rotary Encoder, SSI Safety Encoder, SICK AFM60 Encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit), 4,096 revolutions (12 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W
- Connection: Male M23, 12-pin radial connector
- Mechanical design: Through hollow shaft, 15 mm diameter
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: < 0.8 Ncm
- Operating torque: < 0.6 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia: 40 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature: -40 °C to +100 °C
- Shock resistance: 60 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Safety-related mean time to dangerous failure (MTTFD) of 250 years compliant with EN ISO 13849-1
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low start-up torque (< 0.8 Ncm) and operating torque (< 0.6 Ncm)
- Fast position forming time of less than 1 microsecond
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI interface with adjustable code sequence parameters
- Wide operating temperature range from -40 °C to +100 °C
- High resistance to shocks (60 g) and vibrations (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and electrical connections to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation and control systems
- Safety-related motion monitoring
- Robotics and machinery requiring precise position feedback
- High-speed rotary applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-THAA262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
