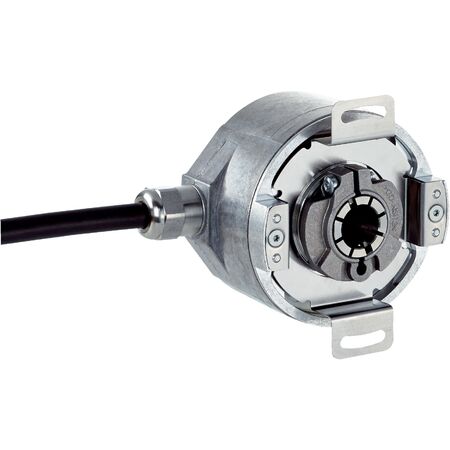

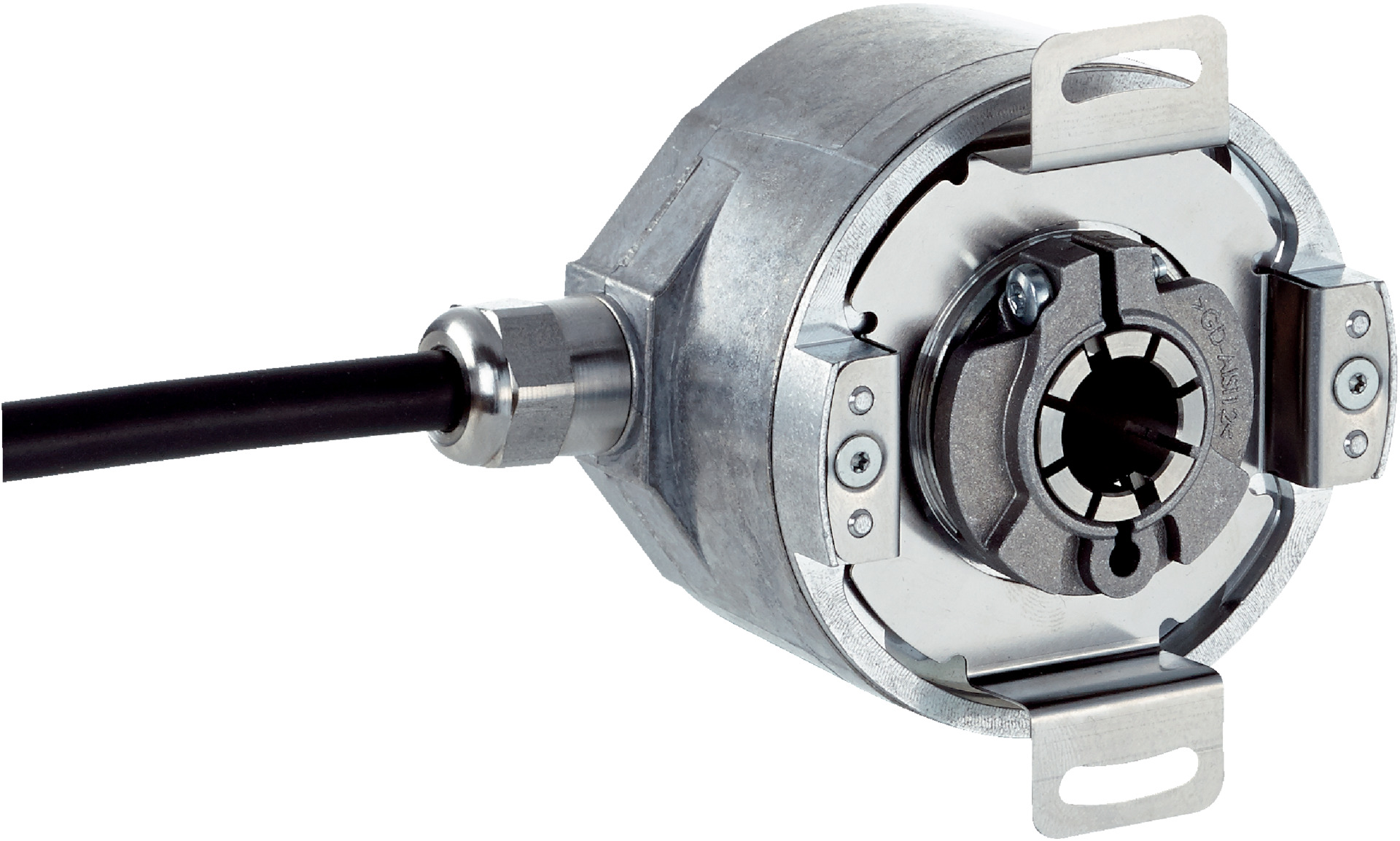

Safety Encoder AFM60A-BDLM131072 | 131,072 Steps/Rev | IP65/IP67 Rated | by SICK
The Safety Encoder AFM60A-BDLM131072 offers high resolution with 131,072 steps per revolution, making it ideal for precision positioning in industrial automation. With a robust design and an operating temperature range of -40 °C to +100 °C, this encoder ensures reliable performance in safety-critical applications. Its IP65 and IP67 ratings provide excellent protection against dust and water, making it suitable for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 131,072 steps per revolution (17 bit), 4,096 revolutions (12 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + incremental / HTL
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W
- Connection type: 12-wire cable, 5 m length
- Mechanical design: Blind hollow shaft, 10 mm diameter
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature: -40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Shock resistance: 60 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 131,072 steps per revolution (17 bit) and 4,096 revolutions (12 bit)
- Safety-related mean time to dangerous failure (MTTFD) of 250 years compliant with EN ISO 13849-1
- SSI communication interface with incremental/HTL output
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- Operating temperature range from -40 °C to +100 °C
- IP65 rated on shaft side and IP67 on housing side for protection against dust and water
- Low power consumption ≤ 0.7 W and reverse polarity protection
- High resistance to shocks (60 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation and control systems
- Safety-related motion monitoring
- Precision positioning and speed measurement
- Robotics and machinery requiring high accuracy
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product life and reduces waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60A-BDLM131072 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
