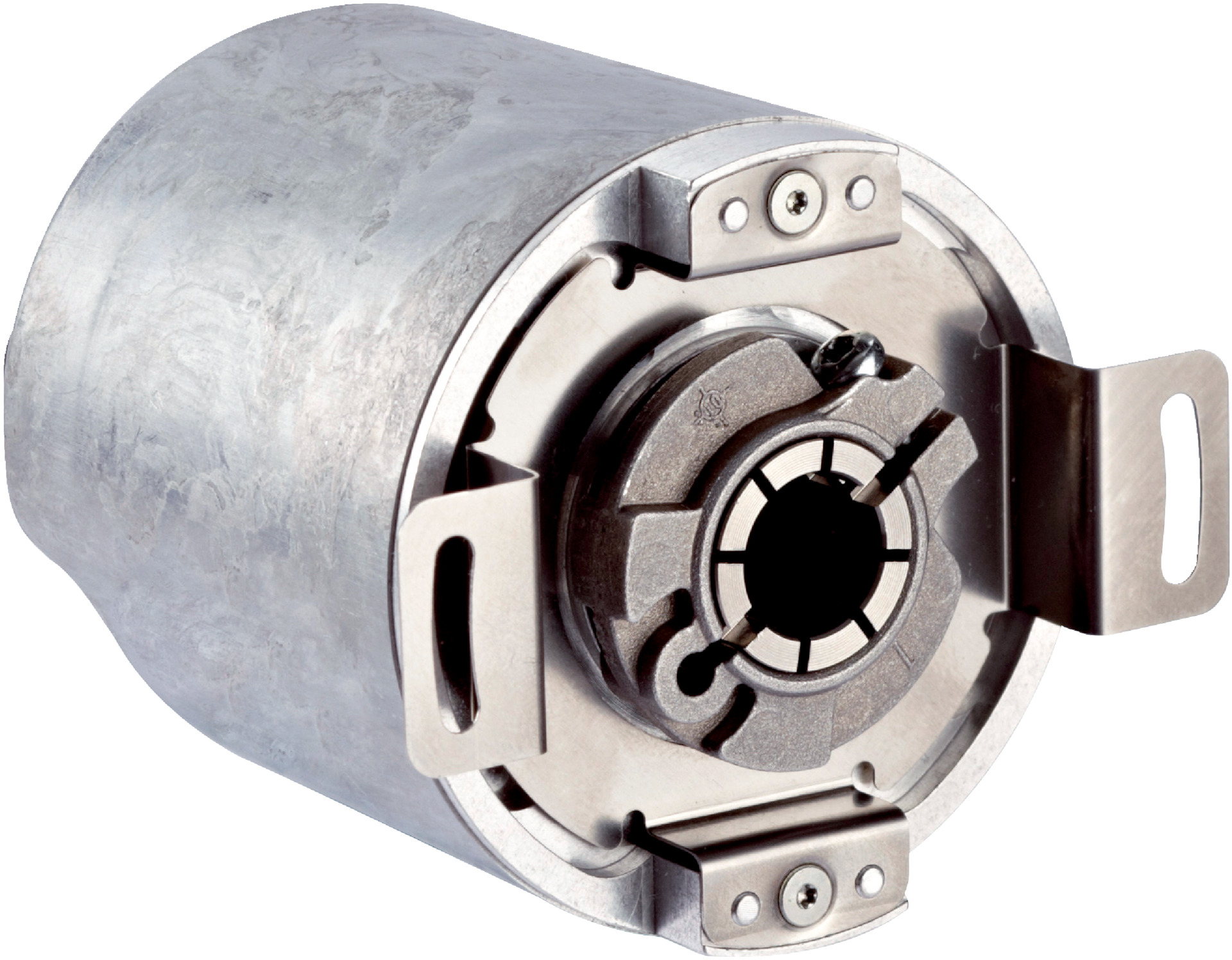

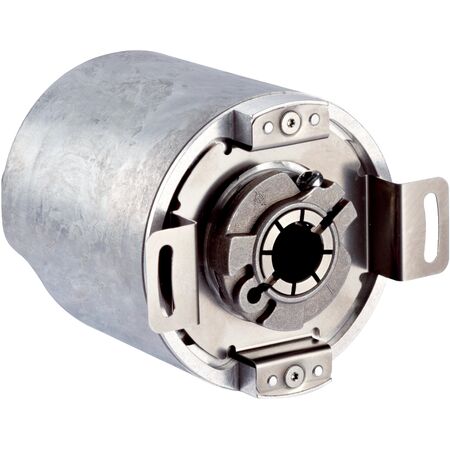

Safety Encoder AFM60A-BKIB018x12 | 262,144 Steps/Rev | EtherNet/IP Communication | IP65/IP67 Rated | by SICK
The Safety Encoder AFM60A-BKIB018x12 offers high precision with 262,144 steps per revolution and EtherNet/IP communication, making it ideal for industrial automation and safety-critical applications. With a robust design and an impressive MTTFD of 80 years, this encoder ensures reliability and comprehensive diagnostics for machine control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit), 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication: EtherNet/IP, 10/100 Mbit/s, CAT-5e cable
- Initialization time: Approx. 10 seconds
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Connection: Male and female M12 4-pin connectors
- Mechanical design: Blind hollow shaft, 1/4 inch diameter, stainless steel shaft
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature: -40°C to +85°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Safety-related mean time to dangerous failure (MTTFD) of 80 years
- EtherNet/IP communication interface with 10/100 Mbit/s data rate
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 shaft side and IP67 housing side protection
- Wide operating temperature range from -40°C to +85°C
- Reverse polarity protection and low power consumption (≤ 3 W)
- Comprehensive diagnostics data and device level ring (DLR) support
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and EtherNet/IP network setup to ensure safety and optimal performance.
Applications
- Industrial automation for precise position and speed measurement
- Safety-related applications requiring high reliability and diagnostics
- Machine control systems with Ethernet/IP communication
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product life and reduces waste
- Compliance with RoHS reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-BKIB018x12 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
