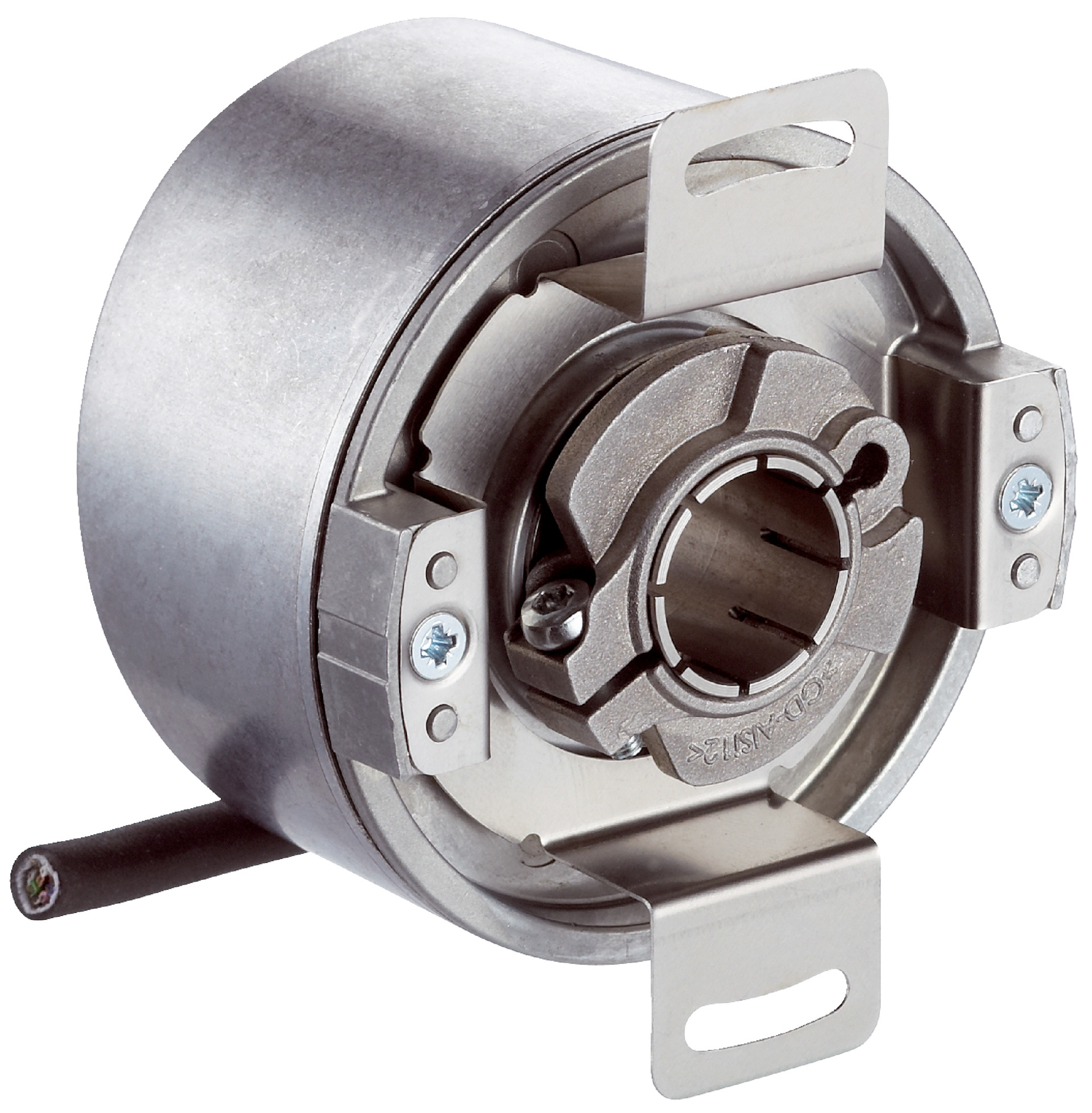

Safety Encoder AFM60B | 32,768 Steps/Rev | IP65/IP67 Rated | by SICK
The Safety Encoder AFM60B is designed for industrial automation, offering high-resolution feedback with 32,768 steps per revolution and a robust mechanical design. With an impressive MTTFD of 250 years and IP65/IP67 ratings for dust and water protection, it's perfect for safety-related motion control systems and robotics requiring precise position sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFM60B | 32,768 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1053761
Alternatively Known As: Safety Encoder AFM60B, High-Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 32,768 steps per revolution (15 bit), 4,096 revolutions (12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W
- Mechanical design: Through hollow shaft, 15 mm diameter
- Materials: Stainless steel shaft, aluminum flange and die-cast aluminum housing
- Operating temperature range: -40 °C to +100 °C
- Enclosure rating: IP65 (shaft side), IP67 (housing side)
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 32,768 steps per revolution and 4,096 revolutions
- Safety-related mean time to dangerous failure (MTTFD) of 250 years
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low operating and start-up torque for minimal mechanical load
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Fast initialization time of 50 ms and position forming time under 1 µs
- Gray code output with adjustable CW/CCW parameter
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation for precise position sensing
- Safety-related motion control systems
- Robotics and machinery requiring high accuracy feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60B-THPL032768 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
