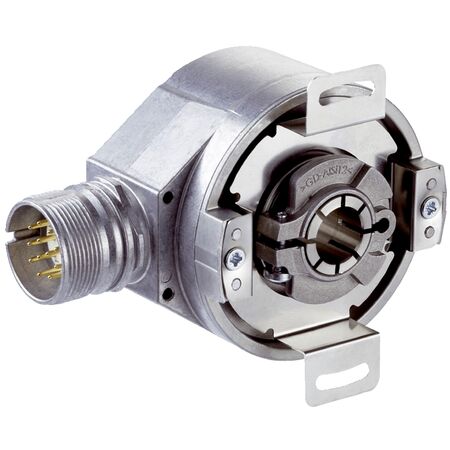

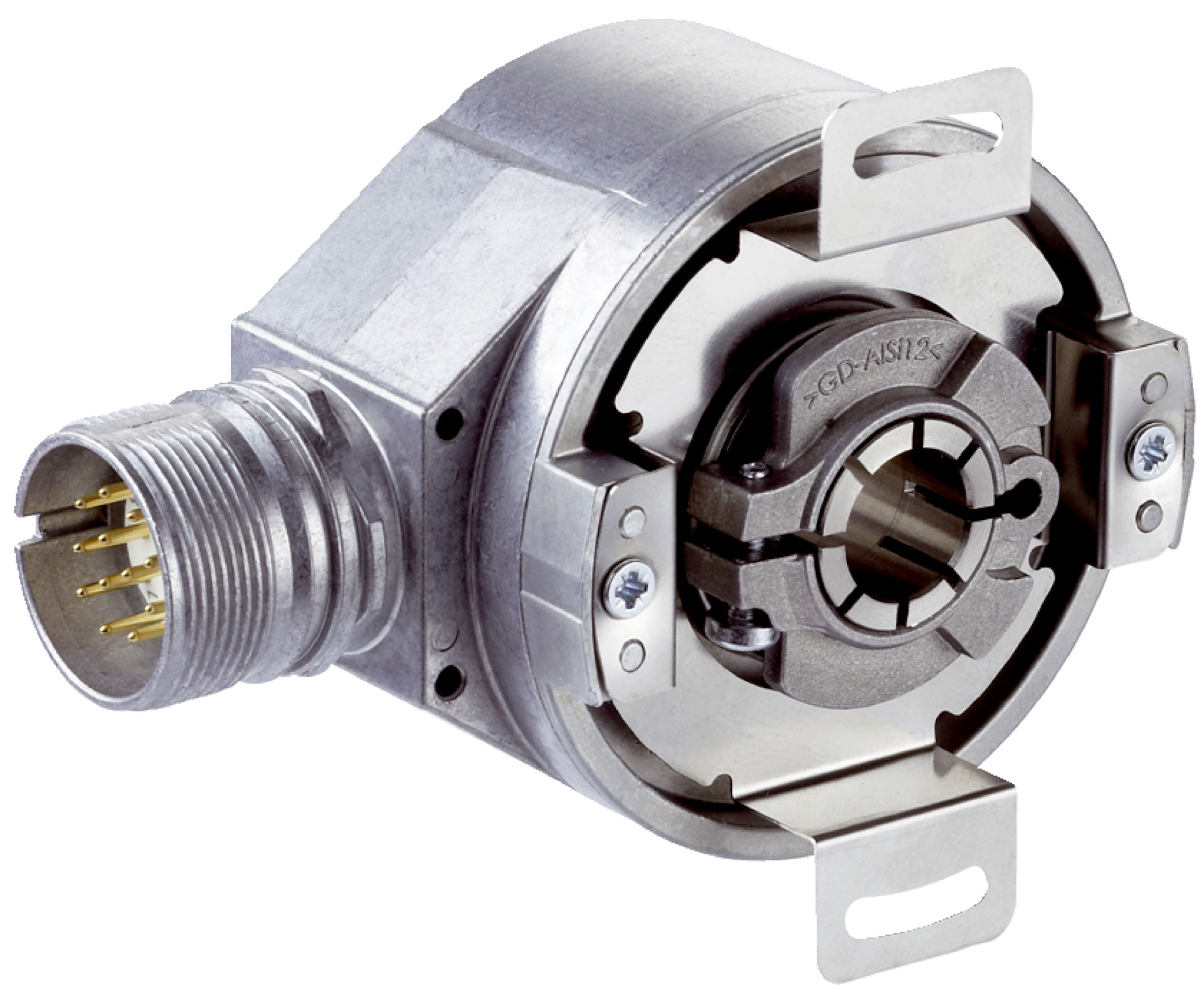

Safety Encoder AFM60B | 32,768 Steps/Rev | IP65 & IP67 Rated | by SICK
The Safety Encoder AFM60B is engineered for precision in industrial automation, featuring a high resolution of 32,768 steps per revolution and robust IP65/IP67 protection. With a remarkable MTTFD of 250 years, it ensures safety in motion monitoring applications. Ideal for robotics and machinery, this encoder offers reliable performance even in extreme temperatures from -40 °C to +100 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 32,768 steps/rev x 4,096 revolutions (15 bit x 12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + incremental, Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft, 8 mm diameter
- Start up torque: < 0.8 Ncm
- Operating torque: < 0.6 Ncm
- Permissible movement static: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible movement dynamic: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: –40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 32,768 steps per revolution and 4,096 revolutions
- Safety-related mean time to dangerous failure (MTTFD) of 250 years
- SSI and incremental communication interfaces with Gray code
- Robust mechanical design with through hollow shaft and stainless steel shaft
- High operating speed up to 9,000 min⁻¹
- IP65 shaft side and IP67 housing side protection
- Wide operating temperature range from –40 °C to +100 °C
- Reverse polarity protection and low power consumption (≤ 0.7 W)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems to ensure proper integration and safety compliance.
Applications
- Industrial automation and control systems
- Safety-related motion monitoring
- Robotics and machinery requiring precise position feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60B-TBRA032768 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
