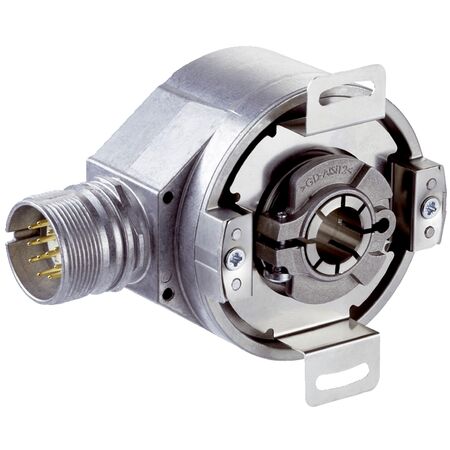

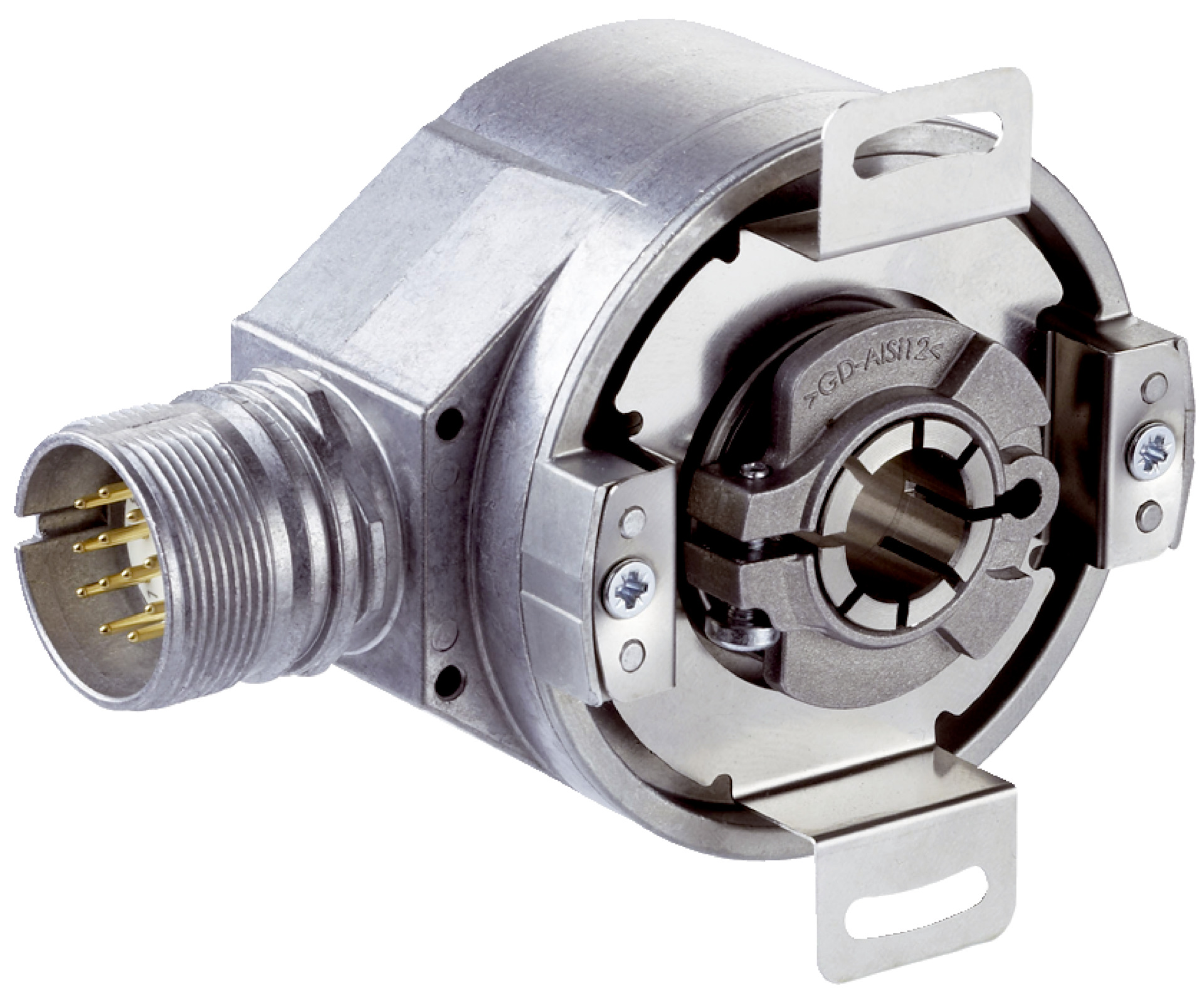

Safety Encoder AFM60B-TGTA032768 | 32,768 Steps/Rev | IP65/IP67 Rated | by SICK
The Safety Encoder AFM60B-TGTA032768 offers high-resolution feedback with 32,768 steps per revolution, making it ideal for industrial automation and safety-critical applications. With a robust design featuring a stainless steel shaft and IP65/IP67 ratings, it ensures reliable performance in harsh environments. Perfect for robotics and motion control, this encoder supports SSI and incremental TTL communication interfaces for versatile integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 32,768 steps per revolution (15 bit), 4,096 revolutions (12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + incremental / TTL
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft, 14 mm diameter
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: < 0.8 Ncm
- Operating torque: < 0.6 Ncm
- Permissible movement static: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible movement dynamic: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature range: –40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 32,768 steps per revolution and 4,096 revolutions
- Safety-related mean time to dangerous failure (MTTFD) of 250 years
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low operating and start-up torque for minimal mechanical load
- Supports SSI and incremental TTL communication interfaces
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- High resistance to shocks (70 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems to ensure proper electrical connections and mechanical mounting.
Applications
- Industrial automation for precise position sensing
- Safety-related machinery control systems
- Robotics and motion control applications
- High-speed rotary applications requiring accurate feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60B-TGTA032768 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
