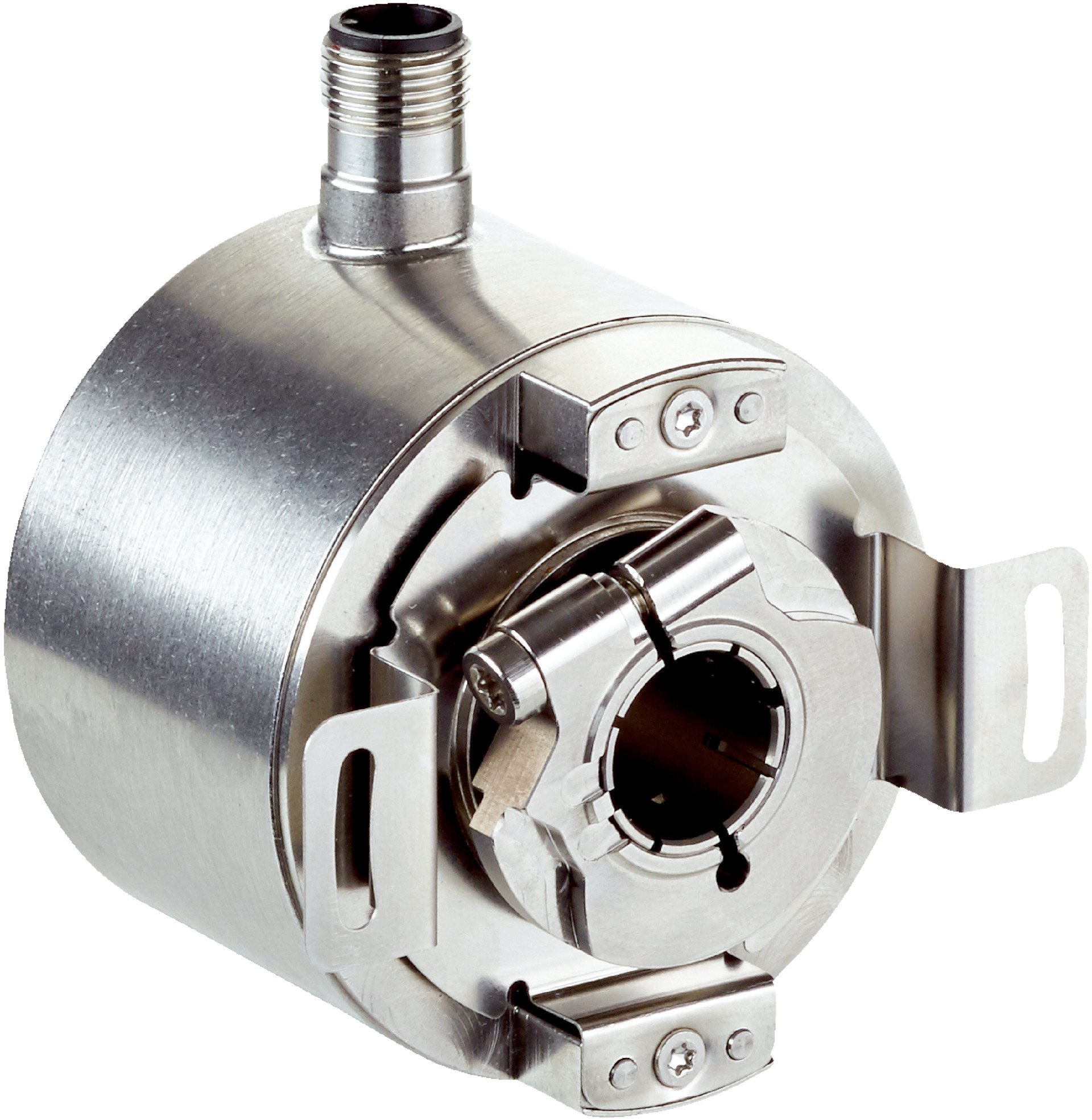

Safety Encoder AFM60I-BBKC262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
The Safety Encoder AFM60I-BBKC262144 offers high precision with 262,144 steps per revolution and a robust IP67 rated enclosure, making it ideal for industrial automation and safety applications. Designed for reliability, it features a low power consumption of ≤ 0.5 W and a long bearing lifetime of 3.0 x 10^9 revolutions, ensuring minimal downtime and maintenance. Perfect for robotics and motion monitoring, this encoder is built to withstand harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos analog differential signals
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 12-pin, radial
- Mechanical design: Blind hollow shaft, 8 mm diameter
- Operating speed: 6,000 min⁻¹
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP67 (shaft and housing side)
- Bearing lifetime: 3.0 x 10^9 revolutions
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Safety-related mean time to dangerous failure (MTTFD) of 250 years compliant with EN ISO 13849-1
- SSI communication interface with Sin/Cos analog differential signals
- Robust stainless steel V2A housing, flange, and shaft
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -40°C to +100°C
- Low power consumption ≤ 0.5 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Fast initialization time of 50 ms and position forming time under 1 µs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems and electrical safety standards to ensure proper integration and compliance.
Applications
- Industrial automation and control systems
- Safety-related motion monitoring
- Precision positioning and speed measurement
- Robotics and machinery requiring high accuracy
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
- High reliability reduces downtime and maintenance frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-BBKC262144 safety encoder is available for immediate purchase, ideal for high-precision industrial automation and safety applications.
