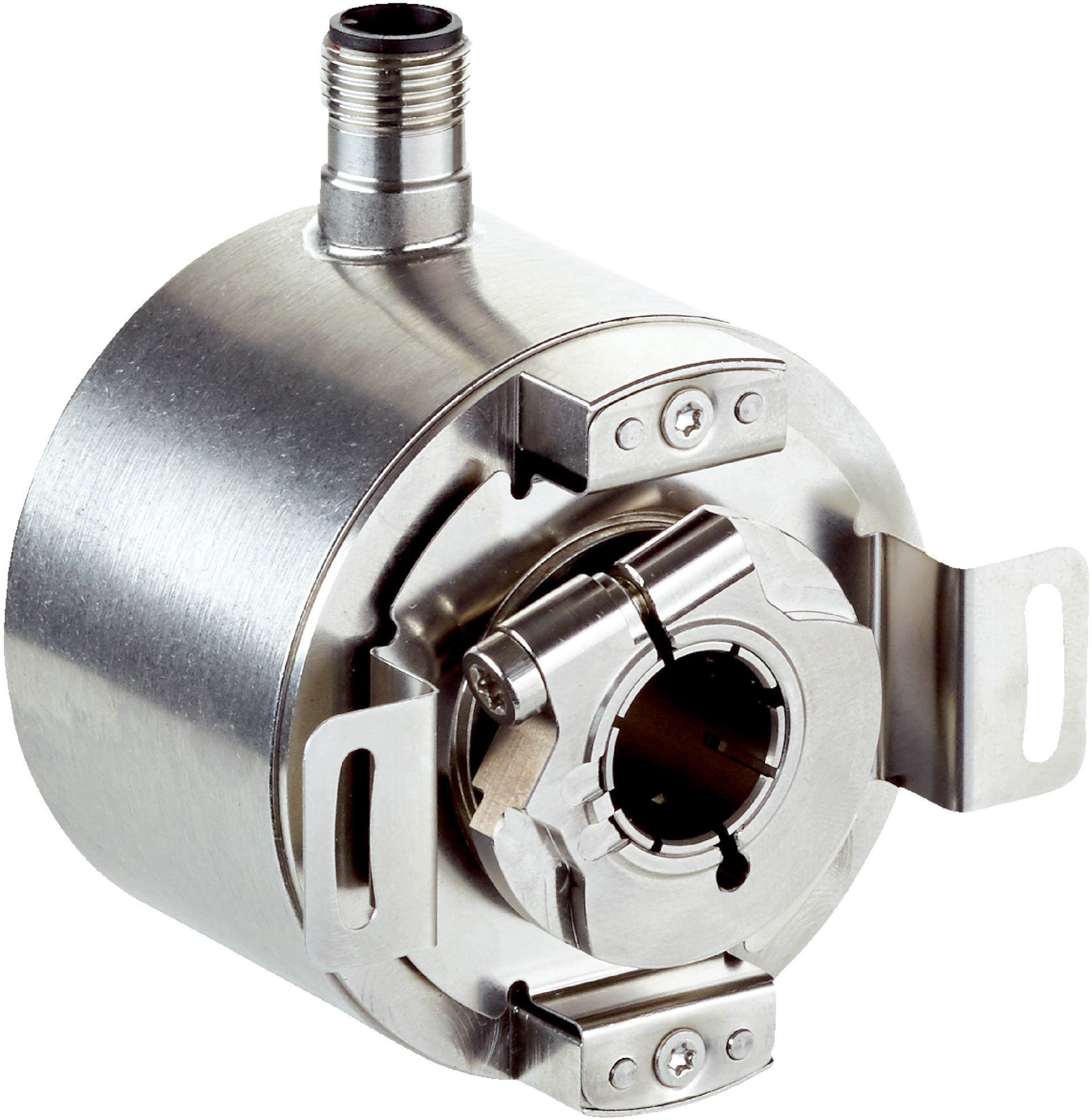

Safety Encoder AFM60I-BDSC262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
The Safety Encoder AFM60I-BDSC262144 offers high resolution with 262,144 steps per revolution, making it ideal for precision positioning in industrial automation. With a robust IP67 rated enclosure and a mean time to dangerous failure (MTTFD) of 250 years, this encoder ensures reliability and safety in demanding environments. Perfect for robotics and motion monitoring applications, it features fast initialization and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit), 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos analog differential
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W
- Connection type: Male connector, M12, 12-pin, radial
- Mechanical design: Blind hollow shaft, 10 mm diameter
- Operating speed: 6,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP67
- Operating temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Safety-related mean time to dangerous failure (MTTFD) of 250 years compliant with EN ISO 13849-1
- SSI communication interface with Sin/Cos analog differential signals
- Robust stainless steel V2A housing, flange, and shaft
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -40°C to +100°C
- Low power consumption ≤ 0.5 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Fast initialization time of 50 ms and position forming time under 1 µs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder integration and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and control systems
- Safety-related motion monitoring
- Precision positioning and measurement
- Robotics and machinery requiring high accuracy
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-BDSC262144 Safety Encoder is available for immediate purchase, ideal for high-precision industrial automation and safety applications.
