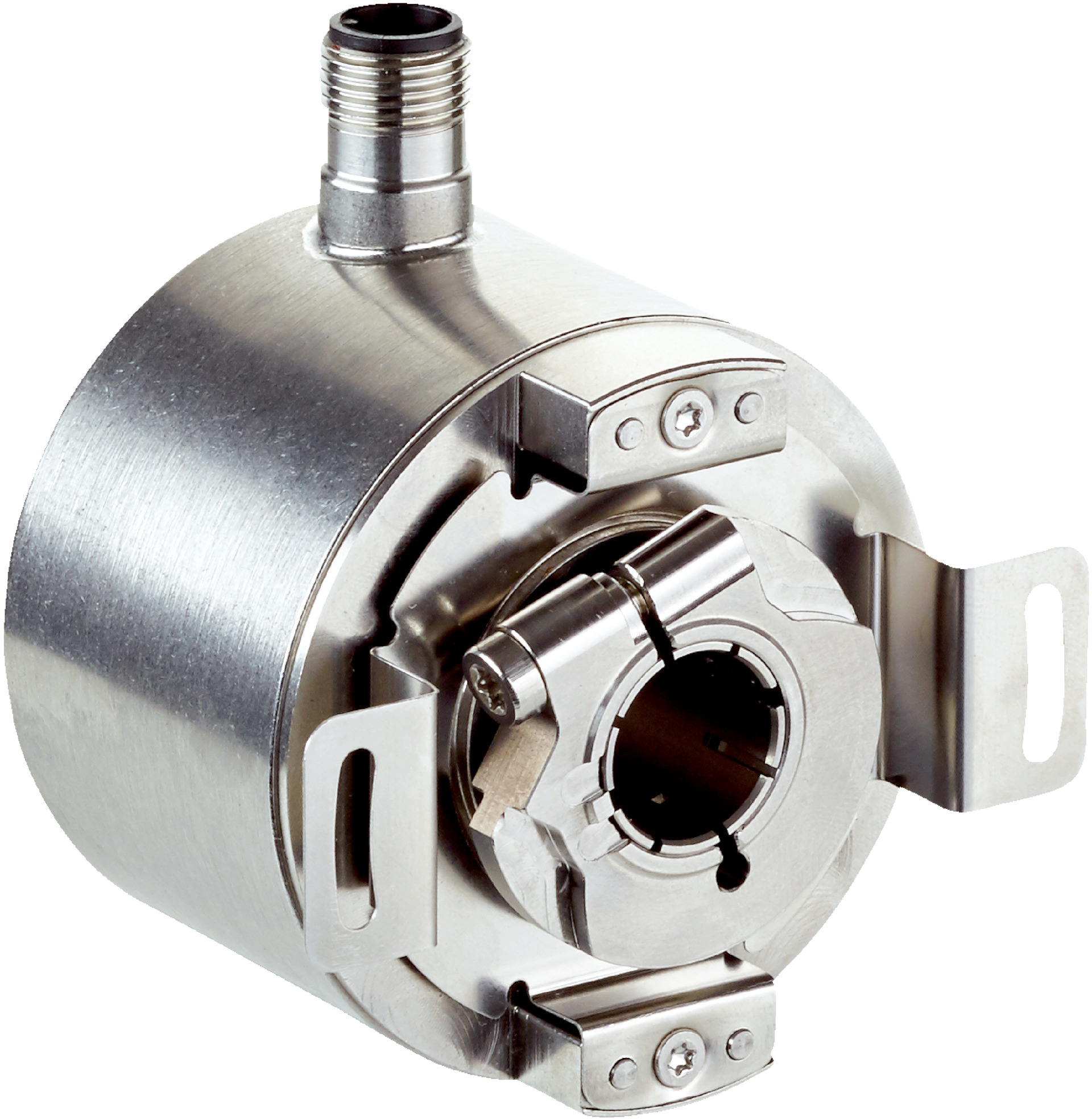

Safety Encoder AFM60I-BETC262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
The Safety Encoder AFM60I-BETC262144 offers high-resolution performance with 262,144 steps per revolution and 4,096 revolutions, making it ideal for precision position and speed measurement in industrial automation. With an IP67 rated enclosure, robust stainless steel construction, and low power consumption, this encoder is built for safety-critical applications, ensuring reliable operation in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + incremental / TTL
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: 2 MHz
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Connection type: Male connector, M12, 12-pin, radial
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Blind hollow shaft with 12 mm diameter
- Start up torque: 1 Ncm at +20 °C
- Operating torque: 0.5 Ncm at +20 °C
- Permissible movement static: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible movement dynamic: ± 0.1 mm radial and axial
- Operating speed: 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature range: –40 °C to +100 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Safety-related parameters with MTTFD of 250 years according to EN ISO 13849-1
- Robust stainless steel V2A housing, shaft, and flange
- IP67 rated enclosure for protection against dust and water
- Supports SSI and incremental TTL communication interfaces
- Low power consumption of ≤ 0.5 W with reverse polarity protection
- High operating speed up to 6,000 min⁻¹ and long bearing lifetime
- Resistance to shocks (100 g) and vibration (10 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation and control systems
- Safety-related motion monitoring
- Precision position and speed measurement in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60I-BETC262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
