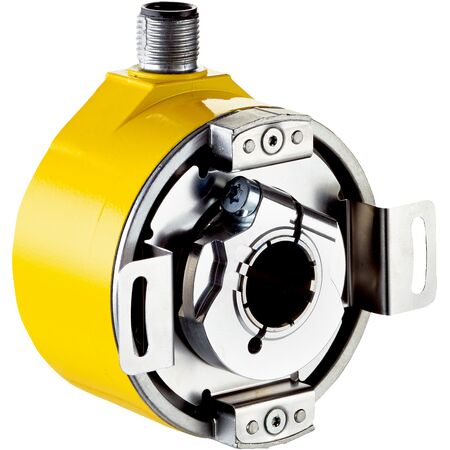

Safety Encoder AFM60S-TDSC016384 | SIL 3 & PL e Certified | High Precision 16,384 Steps | IP65 Rated | by SICK
The Safety Encoder AFM60S-TDSC016384 is designed for industrial automation, offering SIL 3 safety integrity and PL e performance levels. With a high resolution of 16,384 steps per revolution and robust IP65-rated aluminum housing, it ensures precise and reliable position feedback for safety-critical applications like robotics and automated manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFM60S-TDSC016384 | SIL 3 & PL e Certified | High Precision 16,384 Steps | IP65 Rated | by SICK
Brand: SICK
SKU: 1111703
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, high precision encoder, SSI encoder, through hollow shaft encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- PFH: 5.5 x 10^-9 at 40 °C, 1.8 x 10^-8 at 80 °C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 16,384 steps/rev x 4,096 revolutions (14 bit x 12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 s
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male M12, 12-pin radial connector
- Mechanical design: Through hollow shaft with 10 mm diameter and feather key groove
- Housing material: Aluminum die cast
- Operating temperature: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- Through hollow shaft design with 10 mm shaft diameter and feather key groove
- Robust aluminum die cast housing with IP65 protection
- Operating temperature range from -30 °C to +85 °C
- Short-circuit and reverse polarity protection
- Communication interface SSI with Sin/Cos signals
- Low start-up and operating torque
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation requiring precise and safe position feedback
- Safety-critical machinery and equipment
- Robotics and motion control systems
- Automated manufacturing lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 0.7 W reduces energy usage
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-TDSC016384 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
