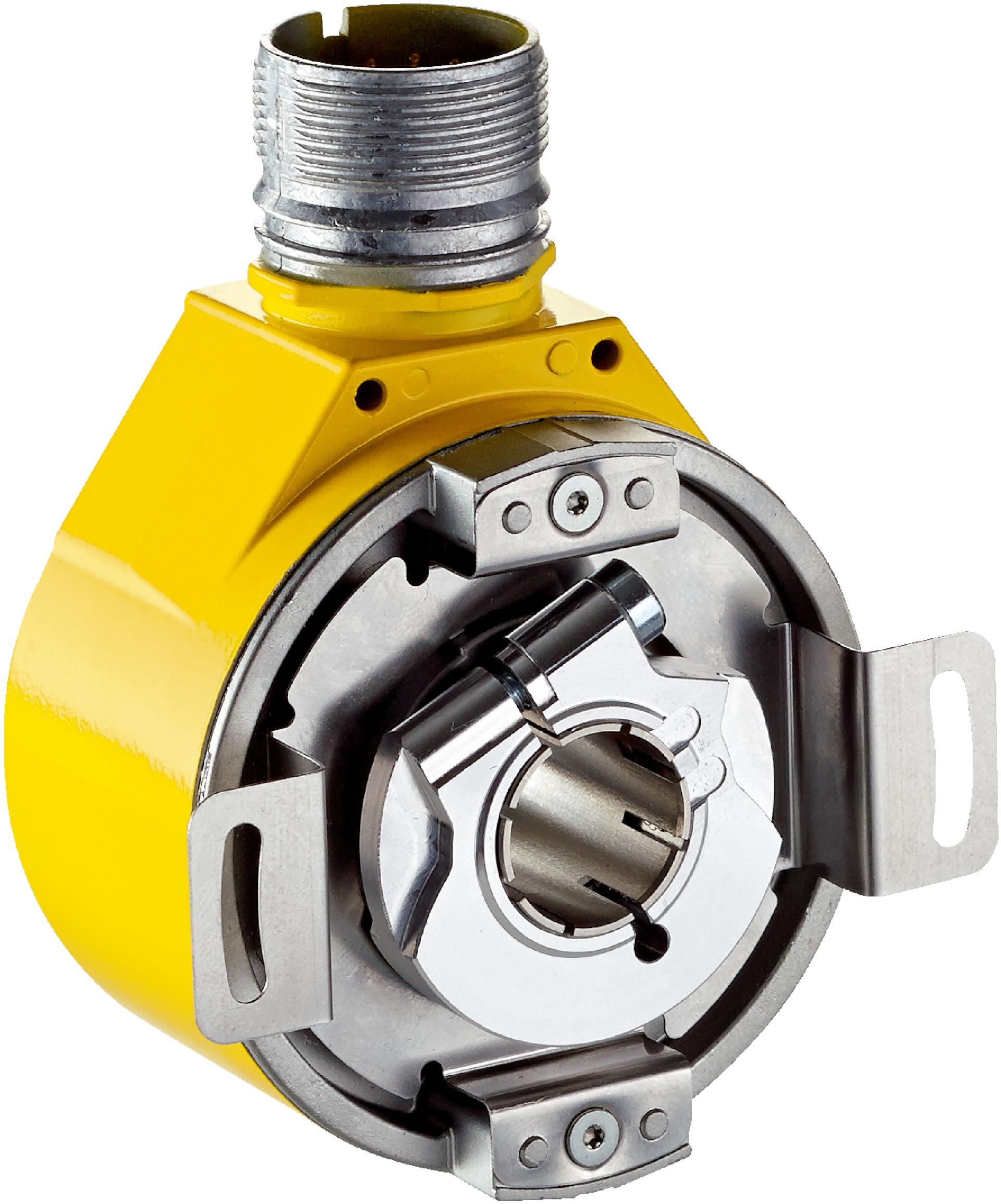

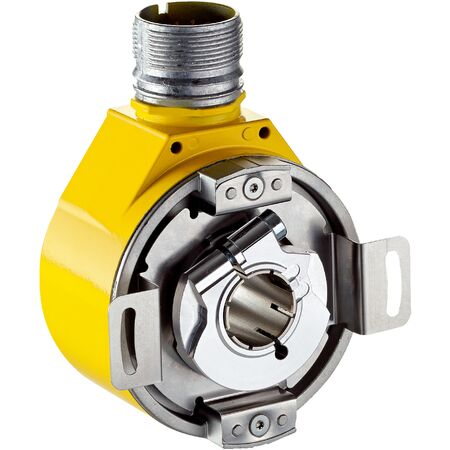

Safety Encoder AFM60S-BDKA04096 | SIL 3 & PL e Certified | IP65 Rated | by SICK
The Safety Encoder AFM60S-BDKA04096 is designed for industrial automation, featuring SIL 3 and PL e safety integrity levels. With a high resolution of 4,096 steps per revolution and an IP65 rated enclosure, it ensures reliable performance in safety-critical applications. Ideal for robotics and motion control systems, this encoder operates in extreme temperatures from -30 °C to +95 °C, making it a robust choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 4,096 (12 bit)
- Number of revolutions: 4,096 (12 bit)
- Max resolution: 12 bit x 12 bit (4,096 x 4,096)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Blind hollow shaft with 10 mm diameter and feather key groove
- Housing material: Aluminum die cast
- Operating temperature range: –30 °C to +95 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 4,096 steps per revolution and 4,096 revolutions
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from –30 °C to +95 °C
- Short-circuit and reverse polarity protection
- Communication interface SSI with Sin/Cos signals
- Low power consumption of 0.7 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related electrical equipment and compliant with relevant safety standards.
Applications
- Industrial automation requiring high safety integrity level encoders
- Safety-critical machinery monitoring and control
- Robotics and motion control systems
- Automated manufacturing lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-BDKA04096 safety-related encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
