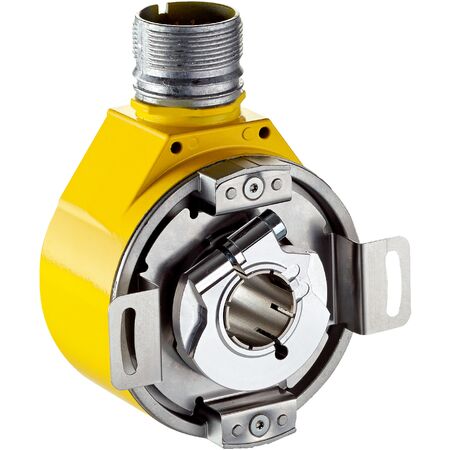

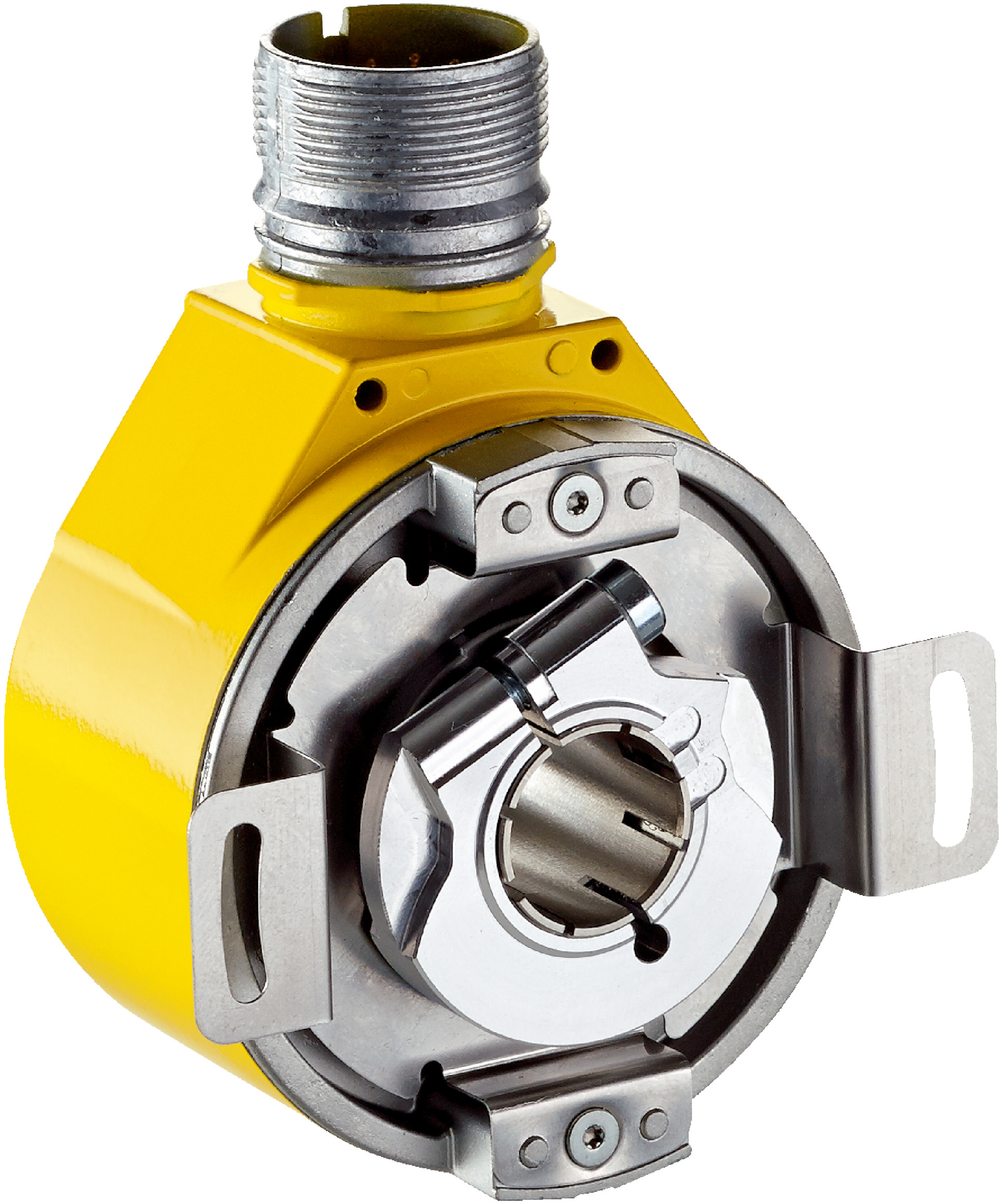

Safety Encoder AFM60S-BDKA262144 | SIL 3 & PL e Rated | High Resolution 262,144 Steps | IP65 Enclosure | by SICK
The Safety Encoder AFM60S-BDKA262144 is designed for industrial automation, offering SIL 3 and PL e performance levels for safety-critical applications. With a high resolution of 262,144 steps per revolution and an IP65 enclosure, it ensures precise position feedback in harsh environments, making it ideal for robotics and heavy machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFM60S-BDKA262144 | SIL 3 & PL e Rated | High Resolution 262,144 Steps | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1114022
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, high resolution encoder, SSI encoder, industrial position encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution x 4,096 revolutions
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Blind hollow shaft with 10 mm diameter and feather key groove
- Operating torque: ≤ 0.6 Ncm at +20 °C
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -30 °C to +95 °C
- Protection class: III (DIN EN 61140)
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust blind hollow shaft design with stainless steel shaft and aluminum housing
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30 °C to +95 °C
- Short-circuit and reverse polarity protection
- Communication via SSI interface with Sin/Cos signals
- Low start-up and operating torque for minimal mechanical load
- High repeatability with standard deviation of 0.002°
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and compliant with relevant safety standards to ensure proper integration and operation.
Applications
- Industrial automation requiring precise and safe position feedback
- Safety-critical machinery with SIL 3 and PL e performance requirements
- Robotics and motion control systems
- Heavy machinery with high operating speed and torque sensitivity
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W contributes to energy efficiency
- Robust construction ensures long operational life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-BDKA262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
