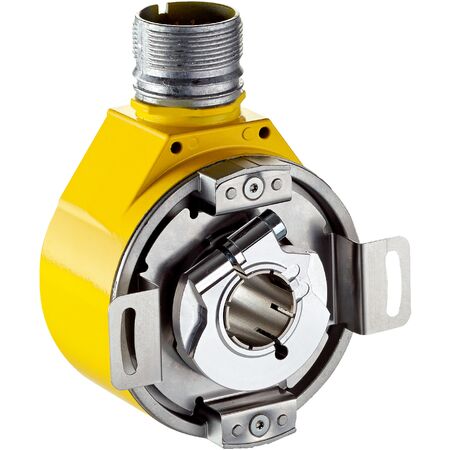

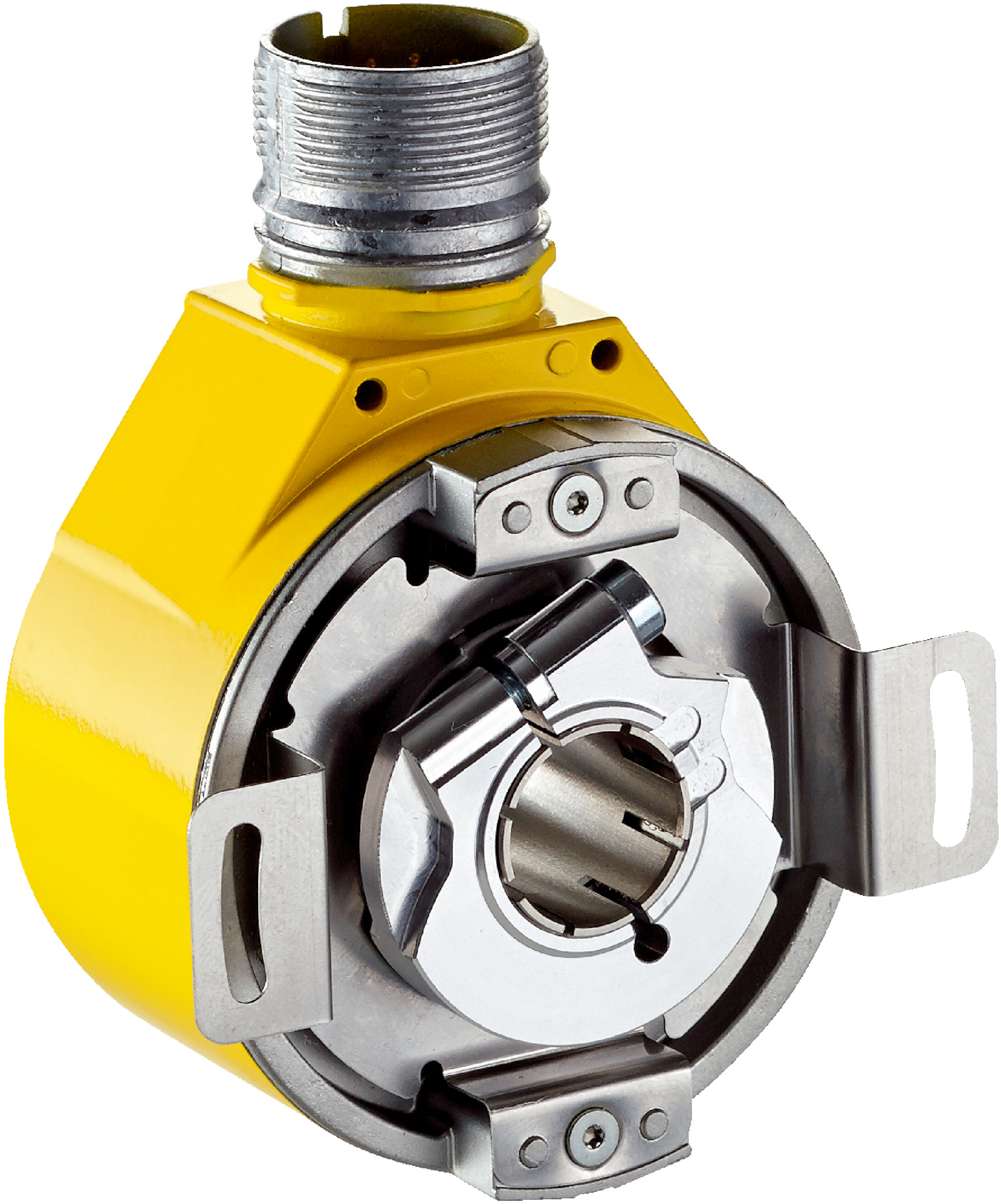

Safety Encoder AFM60S-BESA262144 | SIL 3 & PL e Certified | 262,144 Steps/Rev | IP65 Rated | by SICK
The Safety Encoder AFM60S-BESA262144 is designed for industrial automation, featuring SIL 3 safety integrity and PL e performance levels. With a high resolution of 262,144 steps per revolution and an IP65 rated enclosure, it ensures reliable operation in demanding environments. Ideal for safety-related motion control systems and robotics, this encoder provides precise position and speed feedback, making it essential for compliance in hazardous applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFM60S-BESA262144 | SIL 3 & PL e Certified | 262,144 Steps/Rev | IP65 Rated | by SICK
Brand: SICK
SKU: 1085755
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, high resolution industrial encoder, SSI safety encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- PFH: 5.5 x 10^-9 at 40 °C, 1.8 x 10^-8 at 80 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps/rev (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Blind hollow shaft with 12 mm diameter and feather key groove
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +95 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution: 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Communication interface: SSI + Sin/Cos
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30 °C to +95 °C
- Reverse polarity and short-circuit protection
- Low operating torque ≤ 0.6 Ncm
- Bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation requiring high safety and precision
- Safety-related motion control systems
- Robotics and machinery with safety compliance needs
- Position and speed feedback in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W reduces energy usage
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-BESA262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
