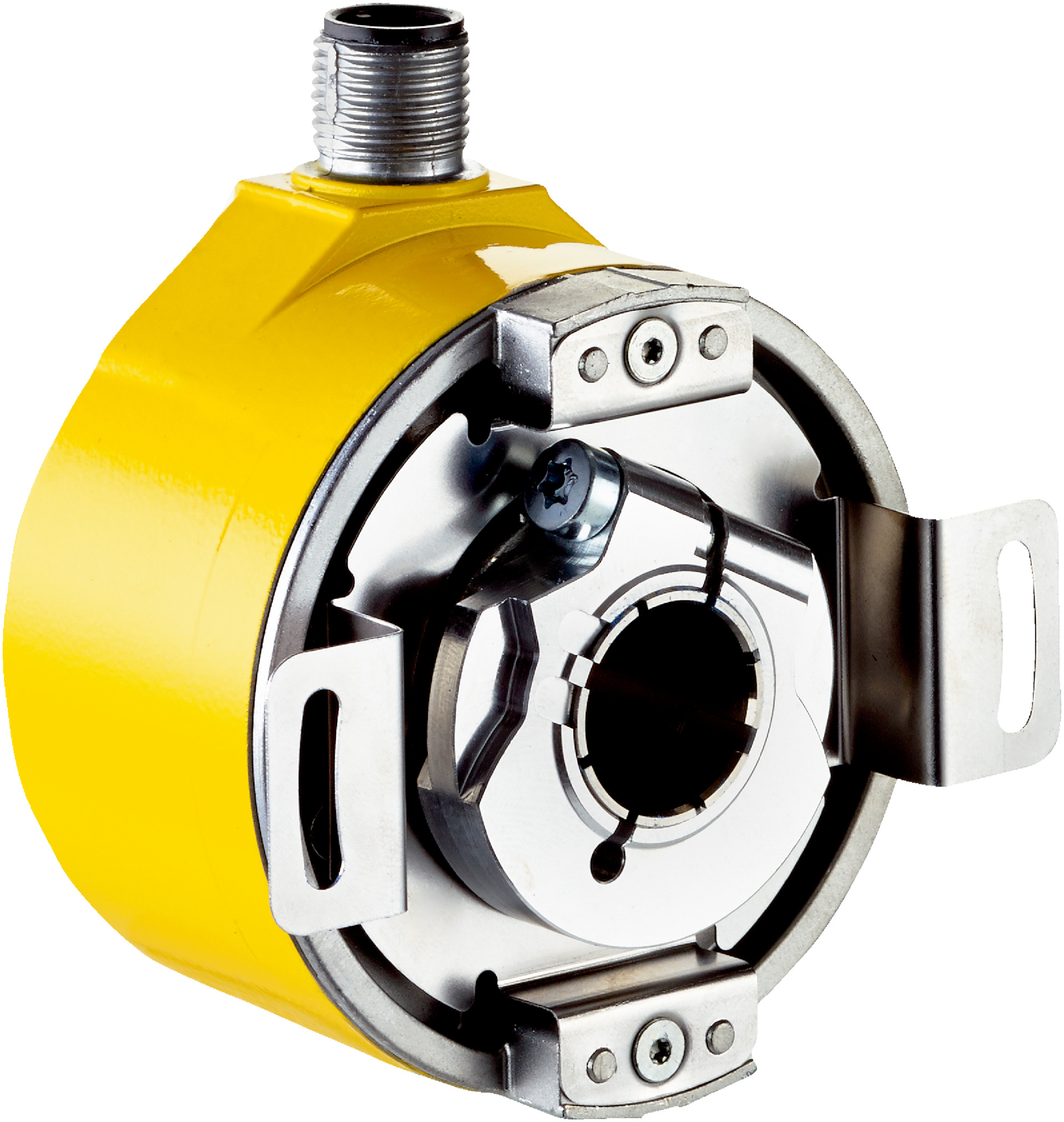

Safety Encoder AFM60S-BESC262144 | SIL 3 & PL e Certified | High Resolution 262,144 Steps | IP65 Rated | by SICK
The Safety Encoder AFM60S-BESC262144 is designed for industrial automation, featuring SIL 3 safety integrity and PL e performance levels. With a high resolution of 262,144 steps per revolution and an IP65 rated enclosure, it ensures reliable position and speed feedback in safety-critical applications. Ideal for robotics and motion control systems, this encoder operates efficiently in harsh environments, providing robust performance and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- PFH: 5.5 x 10^-9 at 40 °C, 1.8 x 10^-8 at 80 °C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps/rev x 4,096 revolutions
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male M12, 12-pin radial connector
- Mechanical design: Blind hollow shaft with 12 mm diameter and feather key groove
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -30 °C to +85 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61000-6-7
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust blind hollow shaft design with stainless steel shaft and aluminum housing
- IP65 rated enclosure for protection against dust and water
- Communication via SSI interface with Sin/Cos signals
- Low power consumption of 0.7 W
- Reverse polarity and short-circuit protection
- Operating temperature range from -30 °C to +85 °C
- High resistance to shock (100 g) and vibration (18 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related encoder systems and compliant with relevant safety standards.
Applications
- Industrial automation requiring high safety integrity level encoders
- Safety-related motion control systems
- Robotics and machinery with safety performance requirements
- Position and speed feedback in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
- Compliance with environmental standards such as China-RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-BESC262144 safety-related encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
