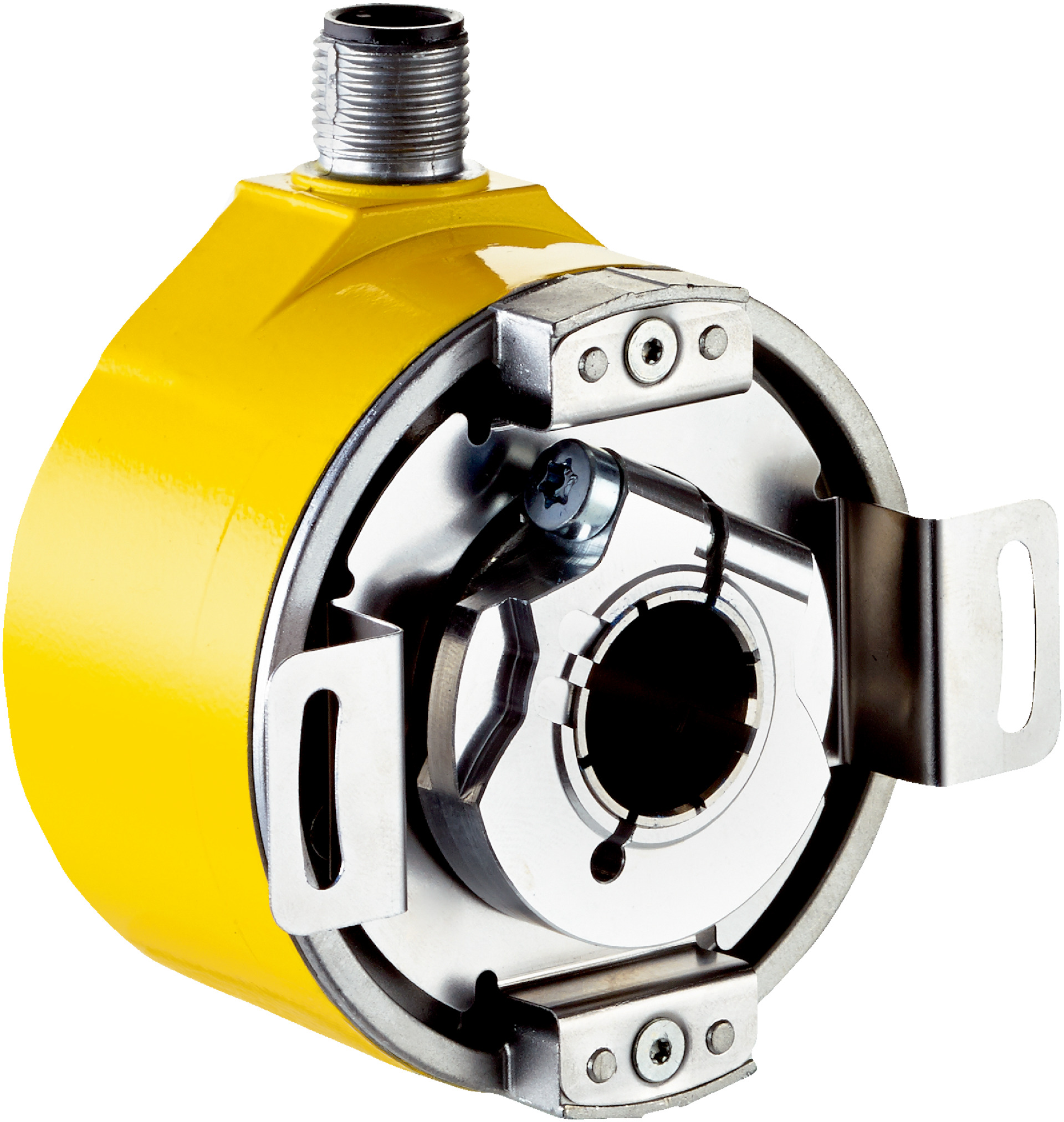

Safety Encoder AFM60S-BHKC262144 | SIL 3 & PL e Certified | High Resolution 262,144 Steps | IP65 Rated | by SICK
The Safety Encoder AFM60S-BHKC262144 is designed for industrial automation, featuring SIL 3 safety integrity and PL e performance level for high precision applications. With a maximum resolution of 262,144 steps per revolution and an IP65 rated enclosure, it ensures reliable operation in demanding environments, making it ideal for robotics and safety-related motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFM60S-BHKC262144 | SIL 3 & PL e Certified | High Resolution 262,144 Steps | IP65 Rated | by SICK
Brand: SICK
SKU: 1146080
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, high resolution encoder, industrial safety encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- PFH: 5.5 x 10^-9 at 40°C, 1.8 x 10^-8 at 80°C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps/rev x 4,096 revolutions (18 bit x 12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male M12, 12-pin radial connector
- Mechanical design: Blind hollow shaft with 15 mm diameter and feather key groove
- Operating temperature range: -30°C to +85°C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust blind hollow shaft design with stainless steel shaft and aluminum housing
- IP65 rated enclosure for protection against dust and water
- Short-circuit and reverse polarity protection
- Fast initialization time of 2 seconds and position forming time under 1 microsecond
- Communication via SSI interface with Sin/Cos output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and compliant with relevant safety standards to ensure proper integration and operation.
Applications
- Industrial automation requiring high safety and precision
- Safety-related motion control systems
- Robotics and machinery with safety performance level PL e
- Position measurement in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W reduces energy usage
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK AFM60S-BHKC262144 safety encoder is available for immediate purchase, ideal for industrial safety and automation applications requiring high precision and SIL 3 compliance.
