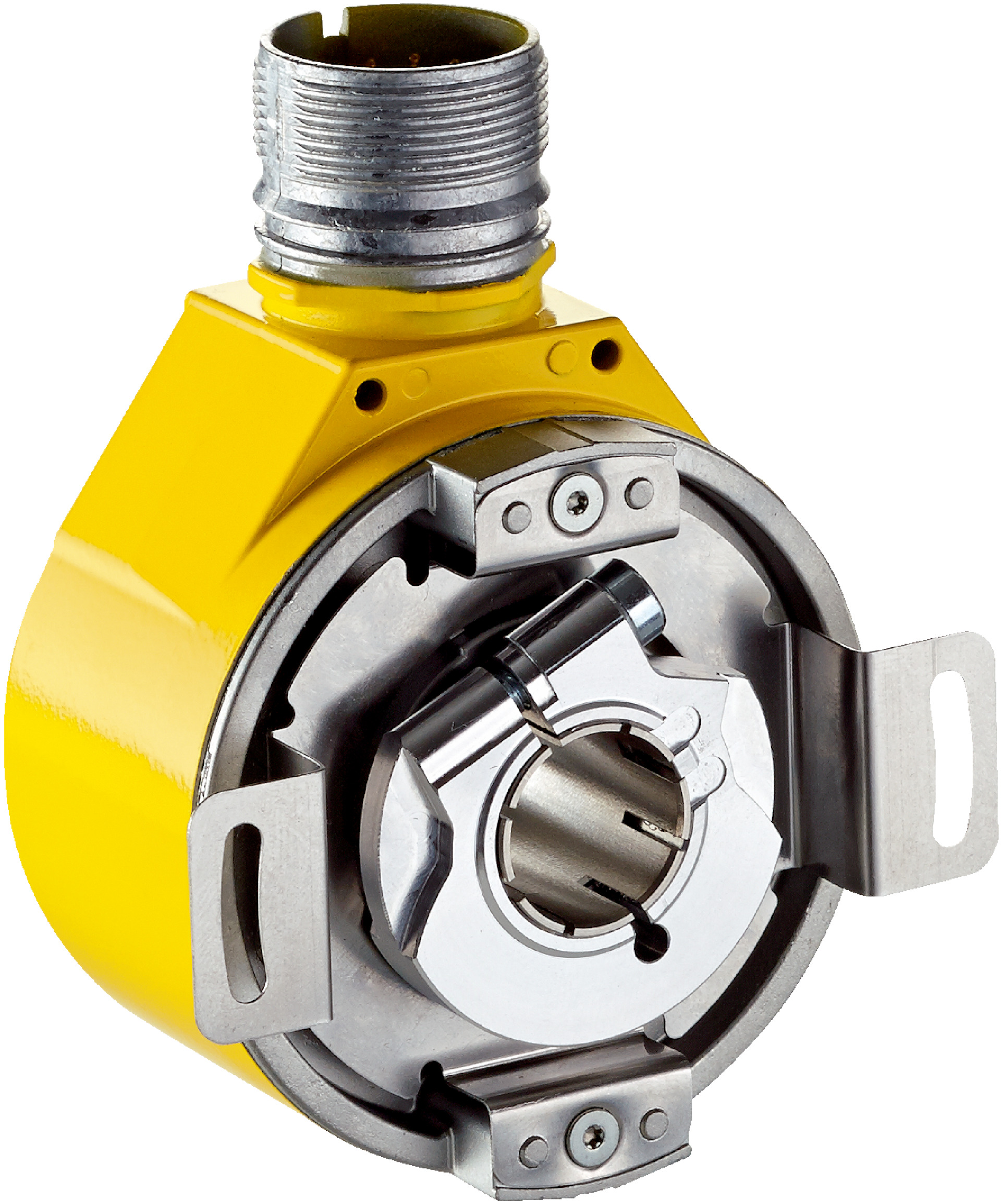

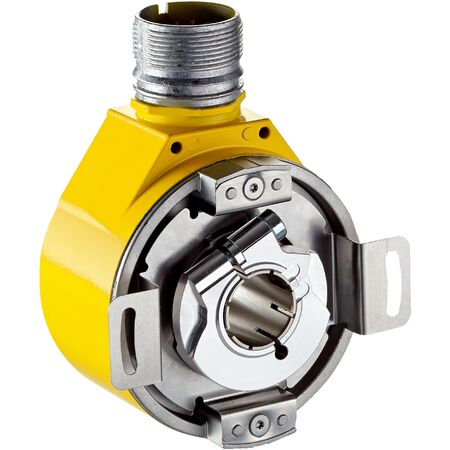

Safety Encoder AFM60S-BHSA262144 | SIL 3 & PL e Rated | High Resolution 262,144 Steps | IP65 Enclosure | by SICK
The Safety Encoder AFM60S-BHSA262144 is designed for industrial automation, featuring SIL 3 safety integrity and PL e performance levels. With a high resolution of 262,144 steps per revolution and an IP65 enclosure, it ensures reliable position feedback in safety-critical applications. Ideal for robotics and motion control systems, this encoder offers robust performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFM60S-BHSA262144 | SIL 3 & PL e Rated | High Resolution 262,144 Steps | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1088924
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, high precision encoder, SSI encoder, blind hollow shaft encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution x 4,096 revolutions
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Blind hollow shaft with 15 mm diameter and feather key groove
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -30 °C to +95 °C
- EMC standards: EN 61000-6-2, EN 61000-6-3, EN 61000-6-7
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust blind hollow shaft design with stainless steel shaft and aluminum housing
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30 °C to +95 °C
- Short-circuit and reverse polarity protection
- Communication via SSI interface with Sin/Cos signals
- Low start-up and operating torque for minimal mechanical load
- High repeatability with standard deviation of 0.002°
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation requiring high safety standards
- Safety-critical machinery position feedback
- Robotics and motion control systems
- Automated manufacturing lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W contributes to energy efficiency
- Robust construction ensures long service life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK AFM60S-BHSA262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
