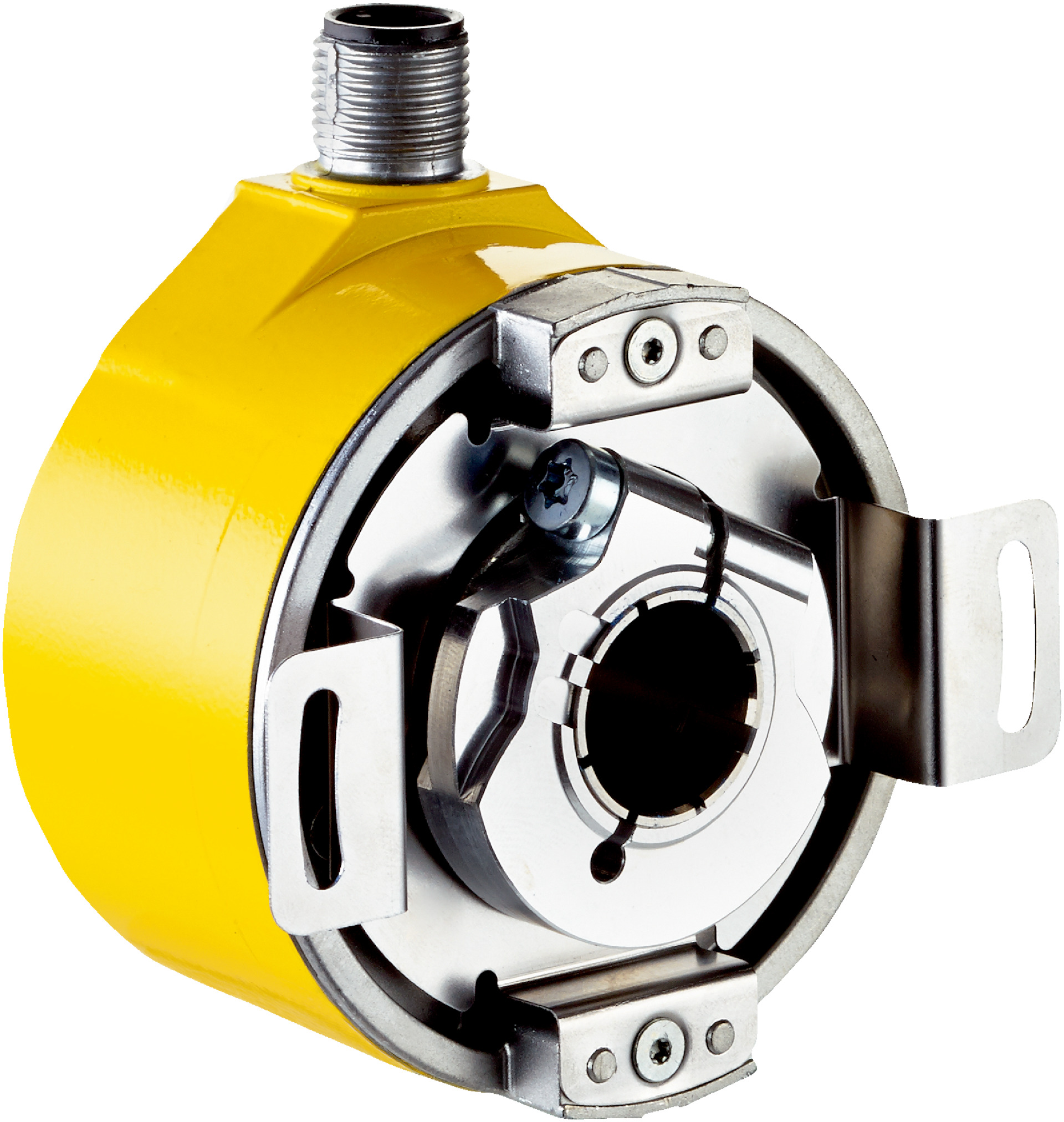

Safety Encoder AFM60S-BHSC262144 | SIL 3 & PL e Rated | 262,144 Steps/Rev | IP65 Enclosure | by SICK
The AFM60S-BHSC262144 safety encoder is designed for industrial automation, featuring SIL 3 and PL e safety ratings for high integrity and precision. With a robust blind hollow shaft design and an IP65 enclosure, it ensures reliable performance in demanding environments. Ideal for robotics and safety-critical machinery, this encoder offers exceptional accuracy and durability, making it a perfect choice for position and speed feedback applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 262,144 (18 bit)
- Number of revolutions: 4,096 (12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 12-pin, radial
- Mechanical design: Blind hollow shaft with 15 mm diameter and feather key groove
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 58mm x 58mm x 58mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust blind hollow shaft design with stainless steel shaft and aluminum housing
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -30 °C to +85 °C
- Short-circuit and reverse polarity protection
- Communication via SSI interface with Sin/Cos signals
- Low power consumption of 0.7 W
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and industrial automation systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation requiring high safety integrity and precision
- Robotics and motion control systems
- Safety-critical machinery monitoring
- Position and speed feedback in manufacturing equipment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-BHSC262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
