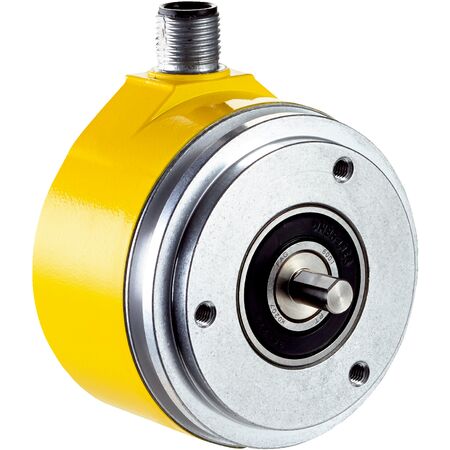

Safety Encoder AFM60S-S1KC262144 | SIL 3 & PL e Certified | 262,144 Steps/Rev | IP65 Rated | by SICK
The Safety Encoder AFM60S-S1KC262144 is designed for industrial automation, featuring SIL 3 safety integrity and PL e performance level for high reliability. With a remarkable resolution of 262,144 steps per revolution and an IP65 rated enclosure, it ensures optimal performance in safety-critical applications like robotics and motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 262,144 (18 bit)
- Number of revolutions: 4,096 (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 12-pin, radial
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 9,000 min⁻¹
- Operating torque: ≤ 0.3 Ncm
- Start up torque: ≤ 0.5 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution (18 bit)
- 4,096 revolutions (12 bit) for extended range
- Robust mechanical design with solid shaft and servo flange
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Communication via SSI interface with Sin/Cos signals
- High repeatability with standard deviation of 0.002°
- Low operating torque ≤ 0.3 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related encoder systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation requiring high safety integrity level encoders
- Safety-related motion control systems
- Robotics and servo motor feedback
- Machine safety and monitoring applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W reduces energy usage
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-S1KC262144 safety-related encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
