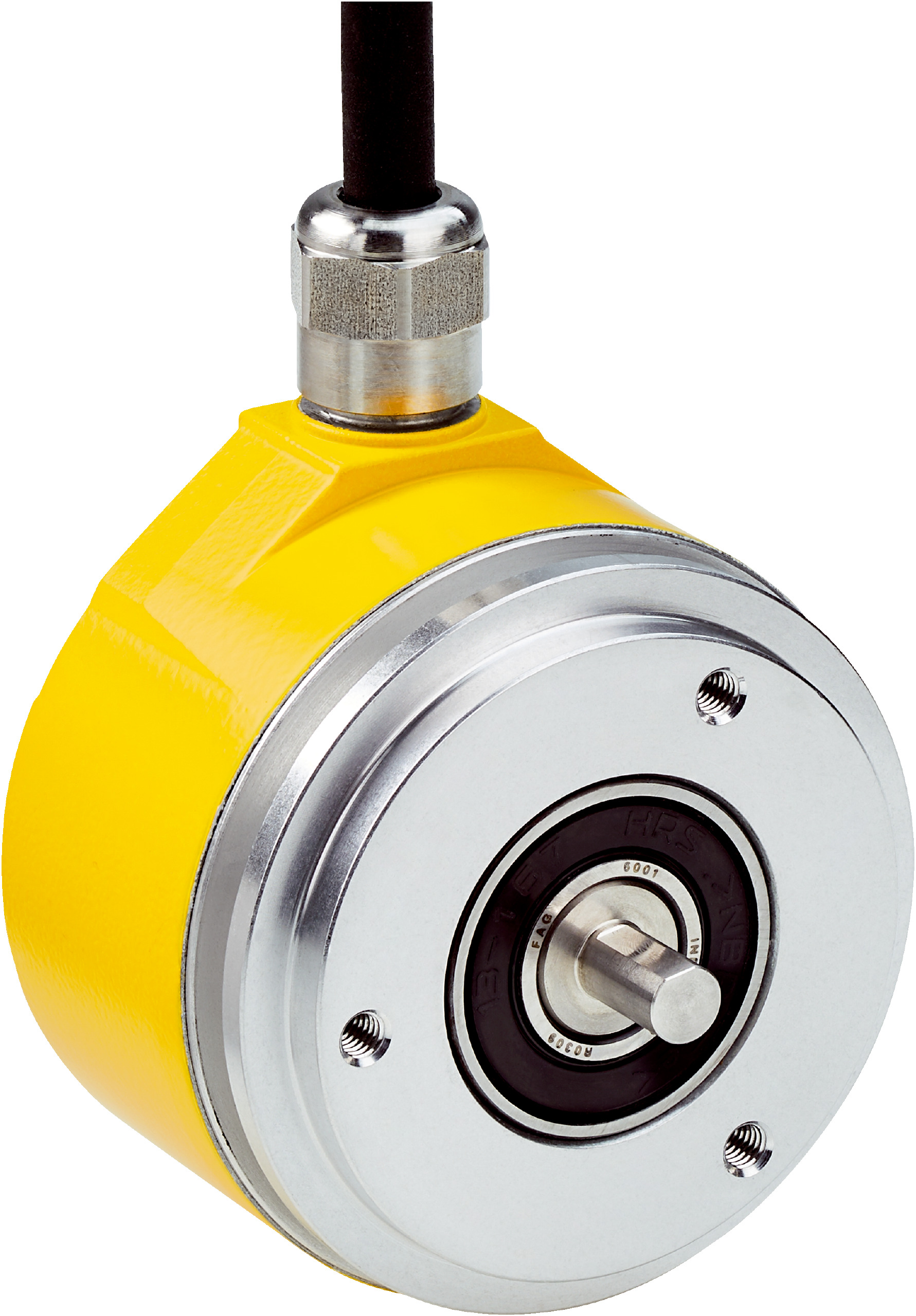

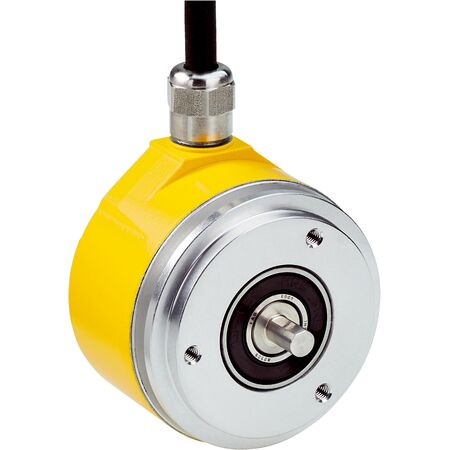

Safety Encoder AFM60S-S1KN262144 | SIL 3 & PL e Rated | High Resolution 262,144 Steps | IP65 Enclosure | by SICK

BRAND: SICK
SKU: 1124903
$2,517.40 List price: $3,164.10
+ −
30 Days Return Delivery Options
The Safety Encoder AFM60S-S1KN262144 is designed for industrial automation, featuring a SIL 3 safety integrity level and a performance level of PL e. With a high resolution of 262,144 steps per revolution and an IP65 rated enclosure, it ensures reliable operation in demanding environments. Ideal for safety-related motion control systems and robotics, this encoder offers exceptional accuracy and durability.

Product Name/Title: Safety Encoder AFM60S-S1KN262144 | SIL 3 & PL e Rated | High Resolution 262,144 Steps | IP65 Enclosure | by SICK

Brand: SICK

SKU: 1124903

Alternatively Known As: Safety rotary encoder, SIL 3 encoder, high resolution encoder, SSI encoder, industrial safety encoder

Technical Specifications
  • Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
  • Performance level: PL e (EN ISO 13849-1)
  • Category: 3 and 4 (EN ISO 13849-1)
  • Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
  • Mission time: 20 years (EN ISO 13849-1)
  • Safety-related accuracy: 0.09° category 3, 0.35° category 4
  • Max resolution: 262,144 steps per revolution x 4,096 revolutions
  • Error limits G: 0.05°
  • Repeatability standard deviation: 0.002°
  • Communication interface: SSI + Sin/Cos
  • Initialization time: 2 seconds
  • Position forming time: < 1 µs
  • Code type: Gray
  • Clock frequency: 100 kHz to ≤ 1 MHz
  • Supply voltage: 4.5 to 32 V
  • Power consumption: 0.7 W (without load)
  • Mechanical design: Solid shaft, servo flange
  • Shaft diameter: 6 mm with flat
  • Operating torque: ≤ 0.3 Ncm
  • Operating speed: ≤ 9,000 min⁻¹
  • Enclosure rating: IP65
  • Operating temperature range: -30 °C to +85 °C
  • EMC standards: EN 61000-6-2, EN 61000-6-3, EN 61000-6-7
  • Dimensions (H x L x W): 58mm x 40mm x 58mm
  • Weight: 0.3 kg
Key Features
  • Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
  • Performance level PL e (EN ISO 13849-1)
  • High resolution with 262,144 steps per revolution and 4,096 revolutions
  • Robust mechanical design with solid shaft and servo flange
  • IP65 rated enclosure for protection against dust and water
  • Operating temperature range from -30 °C to +85 °C
  • Short-circuit and reverse polarity protection
  • High repeatability with standard deviation of 0.002°
  • Communication via SSI interface with Sin/Cos signals
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety encoder integration and electrical standards to ensure compliance and optimal performance.
Applications
  • Industrial automation requiring high safety integrity level encoders
  • Safety-related motion control systems
  • Robotics and servo motor feedback
  • Machine safety and monitoring applications
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption of 0.7 W supports energy-efficient operation
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK AFM60S-S1KN262144 safety encoder is available for immediate purchase, ideal for industrial safety and automation applications.
