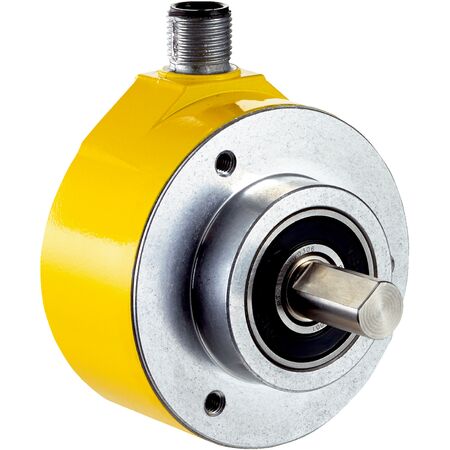

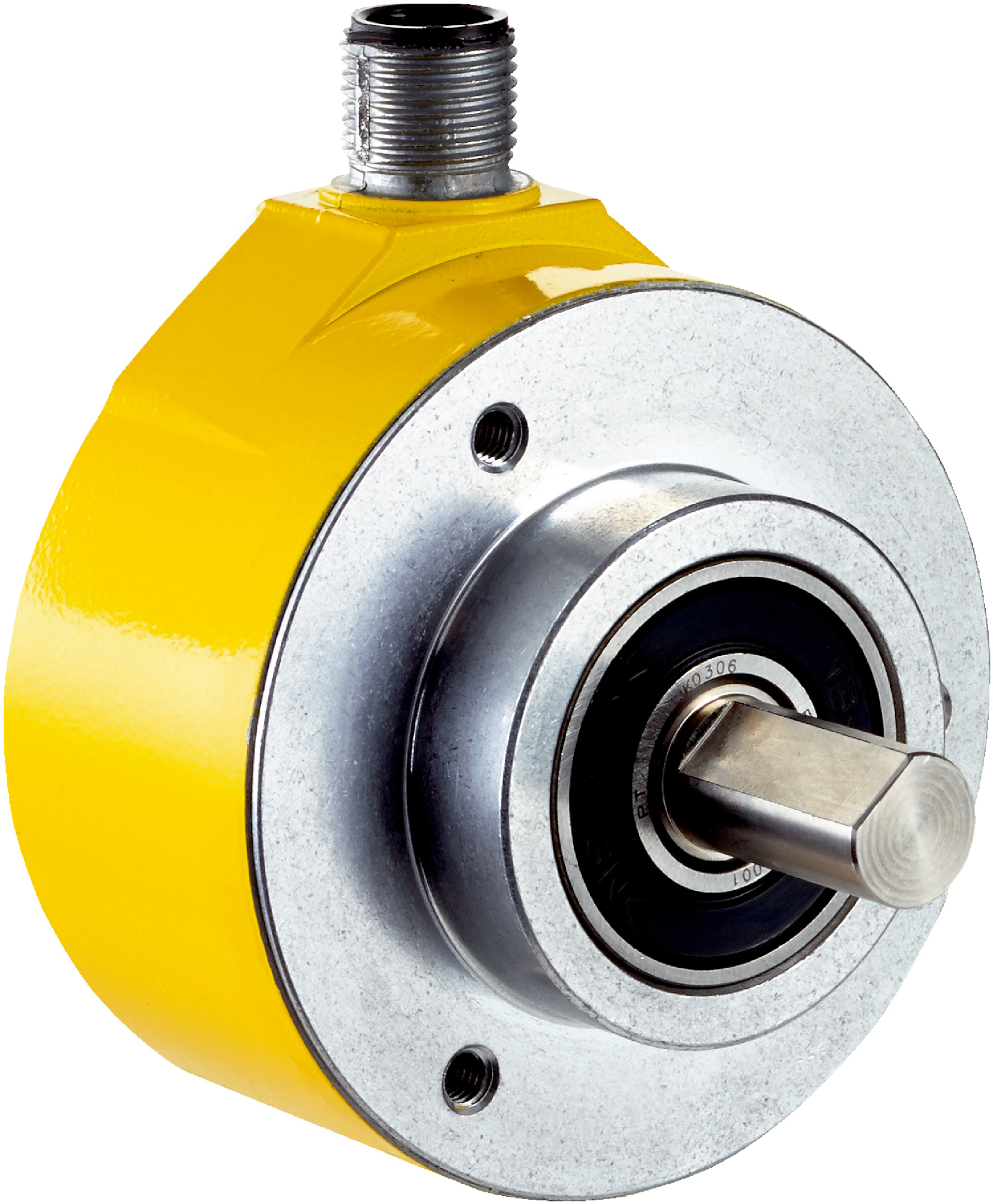

Safety Encoder AFM60S-S4SC262144 | SIL 3 & PL e Certified | High Resolution 262,144 Steps | IP65 Rated | by SICK
The Safety Encoder AFM60S-S4SC262144 is designed for industrial automation, providing precise position feedback with SIL 3 and PL e certification. With a high resolution of 262,144 steps per revolution and an IP65 rated enclosure, it ensures reliable performance in safety-critical applications, making it ideal for robotics and motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFM60S-S4SC262144 | SIL 3 & PL e Certified | High Resolution 262,144 Steps | IP65 Rated | by SICK
Brand: SICK
SKU: 1104950
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, high resolution encoder, SSI safety encoder, industrial position encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps/rev x 4,096 revolutions (18 bit x 12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male M12, 12-pin radial connector
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Weight: 0.3 kg
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid shaft and face mount flange
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30 °C to +85 °C
- Short-circuit and reverse polarity protection
- Communication via SSI interface with Sin/Cos signals
- Low start-up and operating torque for minimal mechanical load
- High resistance to shock (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and compliant with relevant safety standards to ensure proper integration and operation.
Applications
- Industrial automation requiring precise and safe position feedback
- Safety-critical machinery with SIL 3 and PL e performance requirements
- Robotics and motion control systems
- Machine tools and manufacturing equipment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long service life minimize waste
- High reliability reduces downtime and resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-S4SC262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and SIL 3 compliance.
