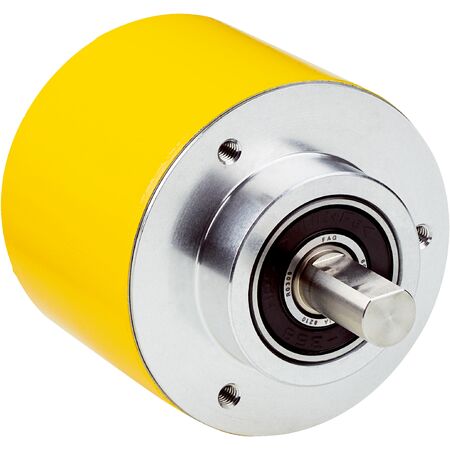

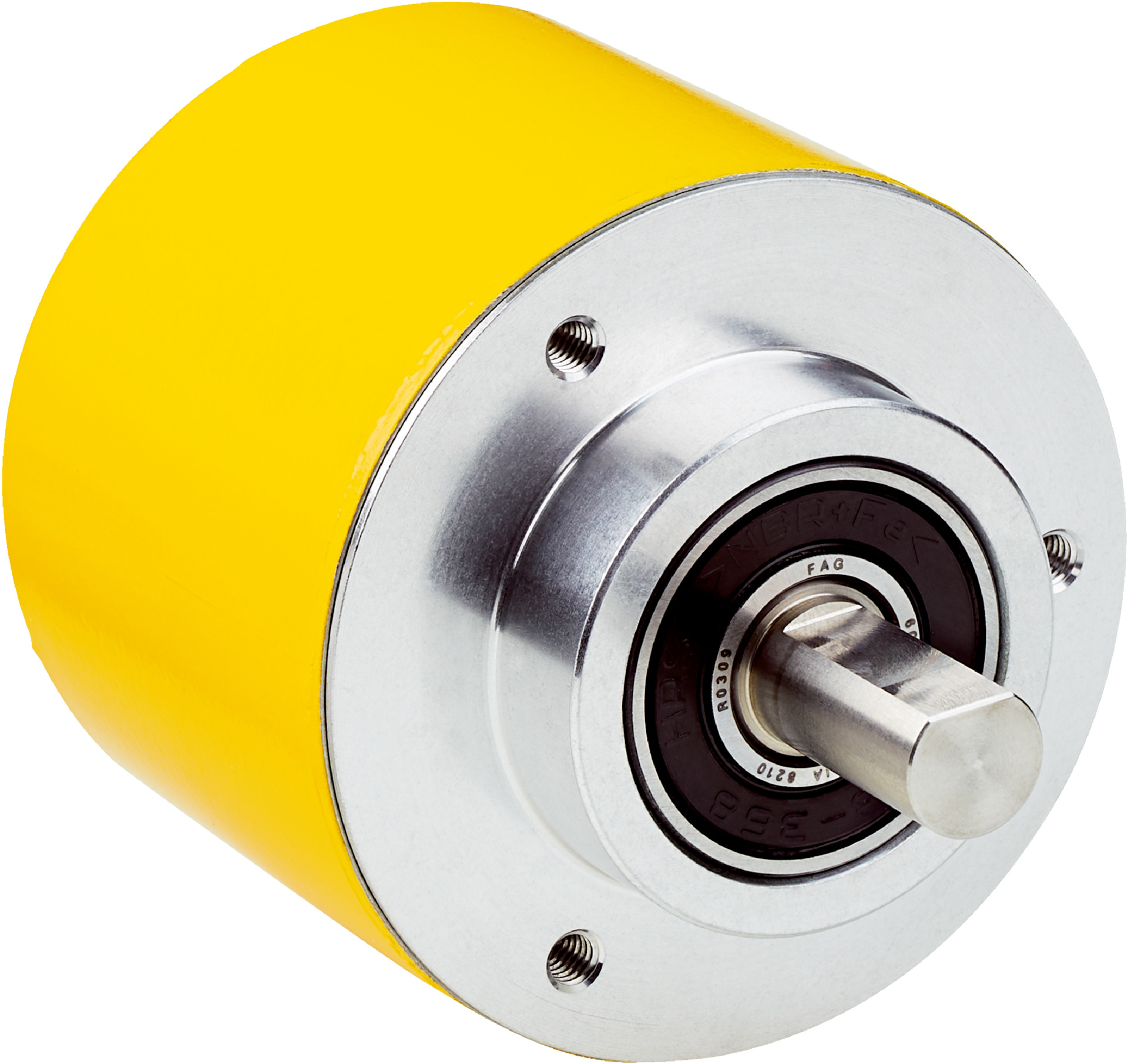

Safety Encoder AFM60S-S4SD262144 | SIL 3 & PL e Compliant | 262,144 Steps | IP65 Rated | by SICK
The Safety Encoder AFM60S-S4SD262144 is designed for industrial automation, featuring SIL 3 safety integrity and PL e performance levels. With a high resolution of 262,144 steps per revolution and an IP65 rated enclosure, it ensures reliable position feedback in safety-critical applications. Ideal for robotics and motion control systems, this encoder operates efficiently in harsh environments, providing fast position forming times and robust protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety Integrity Level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance Level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean Probability of Dangerous Failure per Hour (PFH): 5.5 x 10^-9 at 40°C
- Mission Time: 20 years (EN ISO 13849-1)
- Safety-related Accuracy: 0.09° category 3, 0.35° category 4
- Max Resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error Limits G: 0.05°
- Repeatability Standard Deviation: 0.002°
- Communication Interface: SSI + Sin/Cos
- Initialization Time: 2 seconds
- Position Forming Time: < 1 µs
- Code Type: Gray
- Clock Frequency: 100 kHz to ≤ 1 MHz
- Supply Voltage: 4.5 to 30 V
- Power Consumption: 0.7 W (without load)
- Connection Type: Male M12, 12-pin axial connector
- Mechanical Design: Solid shaft, face mount flange
- Shaft Diameter: 10 mm with flat
- Operating Speed: ≤ 9,000 min⁻¹
- Operating Temperature Range: -30°C to +85°C
- Enclosure Rating: IP65
- Protection Class: III (DIN EN 61140)
- Shock Resistance: 100 g, 6 ms
- Vibration Resistance: 30 g, 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 3 and performance level PL e compliant
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 rated enclosure for protection against dust and water
- Fast position forming time under 1 microsecond
- Reverse polarity and short-circuit protection included
- Wide operating temperature range from -30°C to +85°C
- Communication via SSI interface with Sin/Cos signals
- High resistance to shock (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety-related control systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation requiring high safety integrity level encoders
- Safety-related motion control systems
- Robotics and machinery with safety performance requirements
- Position and speed feedback in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W supports energy-efficient operation
- Robust protection against environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-S4SD262144 safety-related encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
